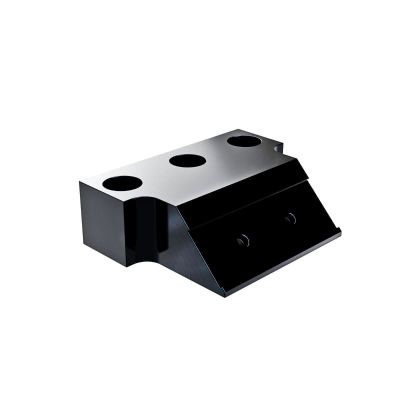

Tilt Plate for 25.4mm Gimballed Beamsplitter Holder

BSHL-25.4-KAD

Skip to the beginning of the images gallery

It is a jig to be used when the collimated light launches into the mirror of BSHL and withdraws the beam.
It is used in the baseplate and block that there are tapped holes of M6 (or M2).

Details

More Information

More Information
Name	Tilt Plate for 25.4mm Gimballed Beamsplitter Holder
Weight	0.1300kgs
Guide	If fixing to the height adjustment platform (SP/UP)(WEB Reference Catalog Code/W6037) and the height adjustment spacer (MSP) (WEB Reference Catalog Code/W6036), please fix by M4 screws through the M6-M4 conversion adapter (AD-M6-M4) (WEB Reference Catalog Code/W6078).
Attention	-
Image Label	Tilt Plate for 25.4mm Gimballed Beamsplitter Holder
Type	45°holder inclination type
Compatible Holders	BSHL-20, BSHL-25.4, BSHL-30

In stock

SKU

BSHL-25.4-KAD

$52.00

It is a jig to be used when the collimated light launches into the mirror of BSHL and withdraws the beam.
It is used in the baseplate and block that there are tapped holes of M6 (or M2).
