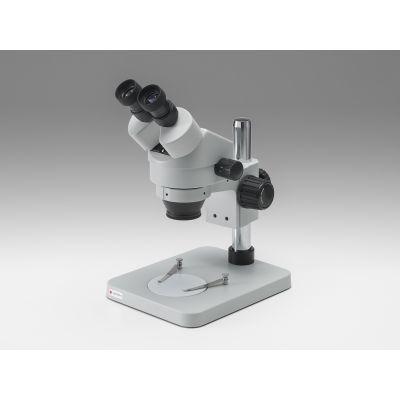

Stereo Microscope

ZMS-216

ZMS series are binocular microscopes which have long working distance. These can be used for making observations of sterically congested samples such as circuit boards ,or dynamic image of samples.
◦ Designed to continuously change magnification by zooming, smooth observations are fulfilled.
◦ Its longer filed of view makes it easier to make observations of uneven and complex samples.
◦ Not only standard binocular type with stand but also trinocular type with stand which has a port for connecting with camera is available. Additionally, we are preparing for trinocular type without stand for incorporating in systems.
◦ Long working distance makes it possible to contact samples with tweezers or probes.
◦ It is possible to observe in wearing glasses because folding rubber eye guards are attached to ocular lens.
More Information
Name Stereo Microscope
Weight 4.0000kgs
Guide
  • Also, bservation unit with coaxial in high magnification are available. “OUCI-2”(WEB Reference Catalog Code/W2012)
Attention
  • The higher magnification you switch, the darker observation image will be. Please use LED Ring Illuminators when making observations. (WEB Reference Catalog Code/W2060)
Image Label Stereo Microscope
Type binocular / with stand
Total Magnification 7× – 45× (Zoom Type)
Working Distance 100mm
Focusing Rack 47mm
Illumination Without
Magnification of eyepiece<br> (Field view) 10x(φ20mm)
Accessories Stand
In stock
SKU
ZMS-216
$767.00

Delivery in : 6-12 weeks

ZMS series are binocular microscopes which have long working distance. These can be used for making observations of sterically congested samples such as circuit boards ,or dynamic image of samples.
