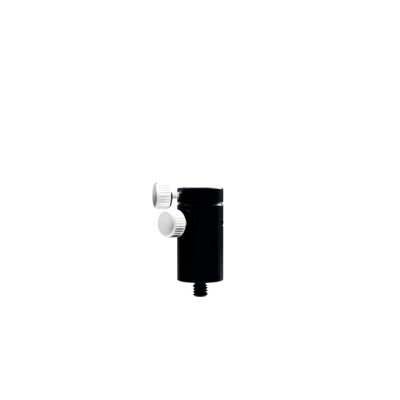

Small Post holder metric 20mm height

RS-6-20

Used for height and rotational coarse adjustment of a post.
◦To secure a holder, insert the post into the post holder. Clamp the post with the clamp screw on the main body and the clamp on the post fixing clamp.
◦The post can be be coarsely rotated by loosening the clamp on the main body and keeping the post fixing clamp tightened.
◦There are three tapped holes for the clamp screw on the main body. This allows the user to move the clamp if it is interfering with other objects.
◦The air-vent hole enables easy one handed loading/unloading of a post.
More Information
Name Small Post holder metric 20mm height
Weight 0.0090kgs
Guide
  • Intermediate rings (TR) (WEB Reference Catalog Code/W6082) and clamp screws (RS-CB) (WEB Reference Catalog Code/W6046) can be purchased separately.
Attention -
Image Label Small Post holder metric 20mm height
Diameter 6mm
Length A 20mm
In stock
SKU
RS-6-20
$14.46

Delivery in : in stock

Used for height and rotational coarse adjustment of a post.
