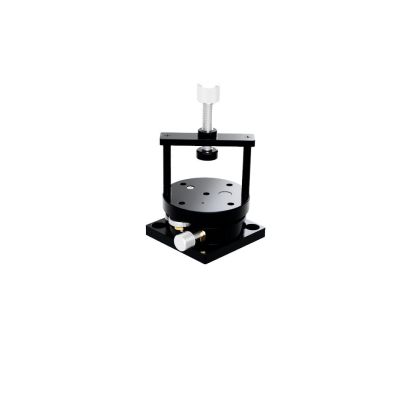

Prism Holder Metric for 12.7 - 32mm Prism

KKD-65PH-EE

Designed to hole cubed optics or right angle prisms. All four polished surfaces of a cubed prism can be used with these mounts.

More Information
Name	Prism Holder Metric for 12.7 - 32mm Prism
Weight	0.4000kgs
Guide	θαβ axis stages without prism retainer and strut (KKD-C) are also available. WEB Reference Catalog Code/W7111 Post length can be changed by specifying the post length when you place an order. We may charge the difference in price depending on the length. Contact our Sales Division for more information.
Attention	KKD-25PH and PLH-25 might not exert sufficient pressure to retain a prism, and there is a risk that optics might fall out. Use after making sure that the prism is fixed. After adjusting the KKD series, if the prism retainer is lifted, the prism table sometimes moves, throwing off adjustment of tilt and rotation. Use without touching the prism retainer after adjustment.
Image Label	Prism Holder Metric for 12.7 - 32mm Prism
Compatible Optics Dimensions	□12.7 - □32mm
Adjustment Range /Rotation	±3°
Adjustment Range /Tilt	±3°
Resolution /Rotation	about 1.7°/rotation
Resolution /Tilt	about 1.0°/rotation

In stock

SKU

KKD-65PH-EE

$478.00

Designed to hole cubed optics or right angle prisms. All four polished surfaces of a cubed prism can be used with these mounts.
