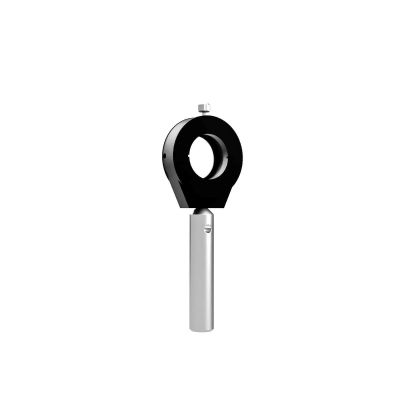

Polarizer Holder
MPHN-25.4R
Used to adjust the direction of polarization of waveplates and polarizer optics. The mount has 360 degrees of smooth rotation.
◦The SPH series uses a micrometer for fine adjustment.
◦The scale plate on the PH and SPH series can be positioned to provide a convenient reference to the polarizer or crystal axis.
◦The SPH can be post mounted with the micrometer at the top or at the side for convenient operation in a variety of environments.
◦The SPH includes a locking mechanism to prevent accidental adjustments.
◦Optics are held in place with retaining rings and resin rings.
◦The MPH series is designed for use in small systems and narrow spaces.
◦The scale plate on the PH and SPH series can be positioned to provide a convenient reference to the polarizer or crystal axis.
◦The SPH can be post mounted with the micrometer at the top or at the side for convenient operation in a variety of environments.
◦The SPH includes a locking mechanism to prevent accidental adjustments.
◦Optics are held in place with retaining rings and resin rings.
◦The MPH series is designed for use in small systems and narrow spaces.
| Name | Polarizer Holder |
|---|---|
| Weight | 1.0000kgs |
| Guide |
|
| Attention |
|
| Diameter | 25.4mm |
| Compatible Optics Diameter φD | φ25.4mm |
| Compatible Optics Thickness | 2 - 8.5mm |
| Scale MIN Reading | 2° |
| Clear Aperture φE | φ22mm |
| Optical Axis Height B | 25mm |
| A (Max) | 51mm |
| φC | φ40mm |
In stock
SKU
MPHN-25.4R
$132.00
Customize product
Used to adjust the direction of polarization of waveplates and polarizer optics. The mount has 360 degrees of smooth rotation.
