Precision Air Slit 150μm Slit Width

FSL-150

Mounted metal foil with a pinhole or slit 400μm or less. Used in spatial filters, laser diffraction experiments and microscopic magnification correction.
◦A precision etching process creates holes with high circularity and slits with high parallelism.
◦For YAG lasers (1064nm) and CO2 lasers (10.6μm), pinholes made of high copper coated with gold should be used.

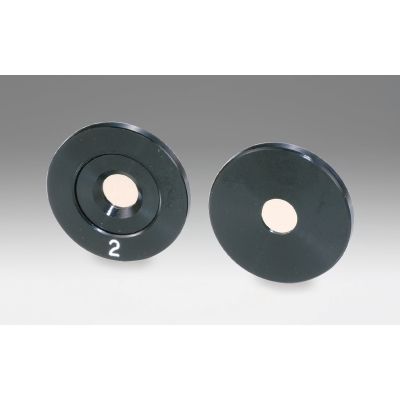

◦Pinholes and slits are pre-mounted in aluminum frames for ease of handling and mounting.
More Information
Name Precision Air Slit 150μm Slit Width
Weight 0.0050kgs
Guide
  • Contact our Sales Division to purchase unmounted pinholes or slits.
  • When an aperture φ1mm or above is required, use an iris diaphragm (IH).
  • WEB Reference Catalog Code/W4039
  • Custom pinholes can be made to order.
Attention
  • Dust can obstruct the light through a pinhole. Use and optic bulb blower to remove the dust. Canned air may break tear the foil.
  • Take care when handling unmounted pinholes. The foil is thin and fragile.
  • The holes and slits are only visible under high magnification.
  • For fixed slits, when the number that represents the width of the slit is at the bottom, the long side of the slit is oriented in the horizontal direction.
  • Pinholes can be damaged if the laser power is higher than the laser damage threshold.
Image Label Precision Air Slit 150mm Slit With
Length 3mm
Slit Width 150±5μm
Length 3mm
In stock
SKU
FSL-150
$233.00

Delivery in : in stock

Mounted metal foil with a pinhole or slit 400μm or less. Used in spatial filters, laser diffraction experiments and microscopic magnification correction.
