In stock
SKU
RSN
Helicoidal Post Holder.
Customize product
Filters
Enabled filters :
Remove all filters
| Name | Delivery | Price | Add to cart | |||||
|---|---|---|---|---|---|---|---|---|
|
i
Helicoidal metric 12mm Post Holder 70mm height
RSN-12 |
2 weeks
|
$69.00
|
|
|
||||
|
i
Helicoidal metric 20mm Post Holder 70mm height
RSN-20 |
in stock
|
$76.00
|
|
|
||||
|
i
Helicoidal metric 12.7mm Post Holder 72mm height
RSN-12.7EE |
in stock
|
$69.00
|
|
|
||||
|
i
Helicoidal inch 12.7mm Post Holder 72mm height
RSN-12.7UU |
in stock
|
$69.00
|
|
|
You must be logged in to ask questions

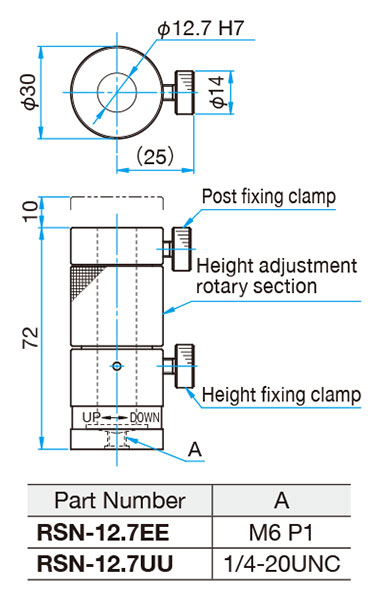

◦Turning the height-adjustment rotary section allows movement of 10mm (about 5mm/rotation) in the Z direction.
◦To secure a post, insert the post into the post holder, and clamp it down using the twoclamp screws on the side of the main body. The upper clamp screw on the side of the mainbody is designed to secure a post, and the lower clamp screw is designed to secure a helicoid ring.
◦The helicoid screw allows for Z travel of a post without rotating the post.
◦To secure a post, insert the post into the post holder, and clamp it down using the twoclamp screws on the side of the main body. The upper clamp screw on the side of the mainbody is designed to secure a post, and the lower clamp screw is designed to secure a helicoid ring.
◦The helicoid screw allows for Z travel of a post without rotating the post.
