In stock
SKU
ZBR
Bracket for mounting an X-axis stage at right angles to the mounting surface.
Customize product
Filters
Enabled filters :
Remove all filters
| Name | Delivery | Price | Add to cart | |
|---|---|---|---|---|
|
i

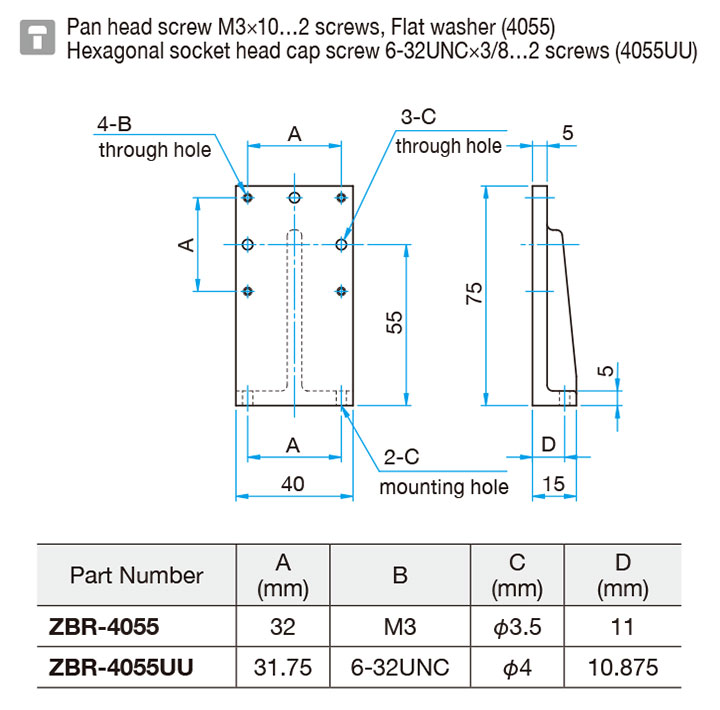

Metric Z bracket for 40mm stages
ZBR-4055 |
2 weeks
|
$28.92
|
|
|
|
i
Metric Z bracket for 60mm stages
ZBR-7090 |
in stock
|
$55.00
|
|
|
|
i
Metric Z bracket for 65mm stages
ZBR-7550EE |
2 weeks
|
$55.00
|
|
|
|
i
Inch Z bracket for 65mm stages
ZBR-7590UU |
2 weeks
|
$66.00
|
|
|
|
i
Inch Z bracket for 40mm stages
ZBR-4055UU |
in stock
|
$28.92
|
|
|
|
i
Metric Z bracket for 80mm stages
ZBR-8060 |
2 weeks
|
$55.00
|
|
|
|
i
Inch Z bracket for 65mm stages
ZBR-7550UU |
in stock
|
$55.00
|
|
|
|
i
Metric Z bracket for 120mm stages
ZBR-14080EE |
2 weeks
|
$73.00
|
|
|
|
i
Metric Z bracket for 25mm stages
ZBR-2530 |
in stock
|
$28.92
|
|
|
|
i
Metric Z bracket for 60mm stages
ZBR-7050 |
6-12 weeks
|
$51.00
|
|
|
|
i
Metric Z bracket for 100mm stages
ZBR-100100 |
2 weeks
|
$69.00
|
|
|
|
i
Metric Z bracket for 65mm stages
ZBR-7590EE |
2 weeks
|
$66.00
|
|
|
|
i
Inch Z bracket for 120mm stages
ZBR-14080UU |
in stock
|
$73.00
|
|
|
You must be logged in to ask questions
◦X-axis stages can be mounted vertically and used as a Z-axis stage.
◦If the X-axis stage is mounted vertically, attach the stage such that the micrometer head is on the underside.
◦The TSD-SZ series Z-axis stages can be mounted so that the micrometer head is on the topside.
◦If the X-axis stage is mounted vertically, attach the stage such that the micrometer head is on the underside.
◦The TSD-SZ series Z-axis stages can be mounted so that the micrometer head is on the topside.
