Cage Fixed Blank Holder

C60-BP-70-BKP

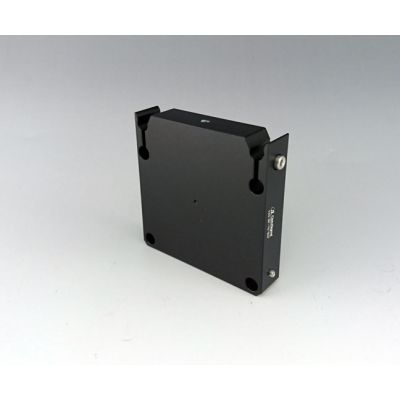

main product photo
Cage Blank Plate is used when the standard product listed on our web site cannot be fit with the customer's system.
It can be processed any size or shape of the holes.
Rod fixing screws are supplied for the 4 through holes which dia. 6mm of rod for Cage(C30-RO-**: dia. 6mm).
More Information
Name Cage Fixed Blank Holder
Weight 0.1870kgs
Guide
  • Please contact our Sales for methods to fix the cage system to other equipment and parts not included in the WEB catalog.
  • For consultation of optical system using cage system please contact Sales.
Attention
  • If the rod is tightened too tightly or if the tightening force is greatly different depending on the location, the rod may not fit in other holders.
  • Initially fix the rod lightly, after building the optical system, please tighten so that the force that fixes the rod is even in each holder.
  • When configuring a large optical system or a long optical system, it may become distorted or become unstable due to vibration.
Primary material Aluminum
Guide Rod Diameter (Spaceing between rod) φ6mm （60x60mm）
In stock
SKU
C60-BP-70-BKP
$51.00

Delivery in : 2 weeks

custom product
Customize product
Add to Wish List
Cage Blank Plate is used when the standard product listed on our web site cannot be fit with the customer's system.
It can be processed any size or shape of the holes.
Rod fixing screws are supplied for the 4 through holes which dia. 6mm of rod for Cage(C30-RO-**: dia. 6mm).
