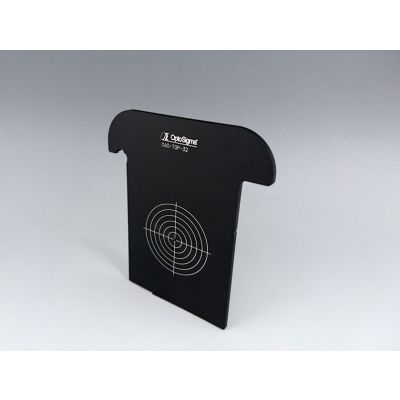

Cage Alignment Target

C60-TGP-32

It is a target plate used for optical axis adjustment of the cage system.
◦ Four dedicated rods are used in the cage system to attach various kinds of components along the optical axis.
There are three types of cage system available. Two types uses dedicated rod of dia. 6mm. One of them is P30 mm corner arrangement (C30 series) and another one is P60 mm corner arrangement (C60 series).
In addition, the one uses a dedicated rod of dia. 4mm is available for P16 mm corner arrangement to miniaturize.
◦ The holder plate can slide through the rod (cage) in the direction of the optical axis. Even without using the stage, it can easily adjust focus on the lens and camera.
More Information
Name Cage Alignment Target
Weight 0.0260kgs
Guide
  • Please contact our Sales for methods to fix the cage system to other equipment and parts not included in the WEB catalog.
  • For consultation of optical system using cage system please contact Sales.
Attention
  • If the rod is tightened too tightly or if the tightening force is greatly different depending on the location, the rod may not fit in other holders.
  • Initially fix the rod lightly, after building the optical system, please tighten so that the force that fixes the rod is even in each holder.
  • When configuring a large optical system or a long optical system, it may become distorted or become unstable due to vibration.
Primary material Aluminum
Guide Rod Diameter (Spaceing between rod) φ6mm (60x60mm)
Through hole φ1mm
Concentric marking φ7~32mm (5mm steps)
Installation -
In stock
SKU
C60-TGP-32
$23.46

Delivery in : in stock

It is a target plate used for optical axis adjustment of the cage system.
