Cage U-Shape Adapter Platform

C30-UPF-L82

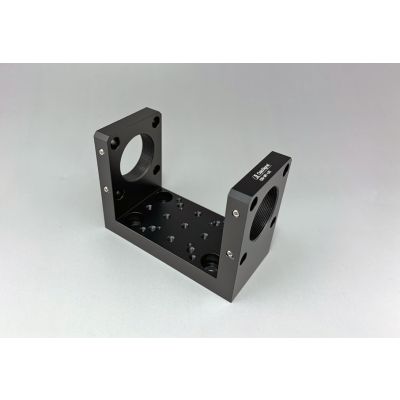

main product photo
A platform for fixing stages or accessories with 32mm pitch M3 screws or 20mm pitch M2 screws to a 30mm Cage assembly. A counterbore for 25mm pitch M6 screws enables fixing the 30mmCage assembly on a vibration isolation table or breadboard.



More Information
Name Cage U-Shape Adapter Platform
Weight 0.1500kgs
Guide
  • Please contact our Sales for methods to fix the cage system to other equipment and parts not included in the WEB catalog.
  • For consultation of optical system using cage system please contact Sales.
Attention
  • If the rod is tightened too tightly or if the tightening force is greatly different depending on the location, the rod may not fit in other holders.
  • Initially fix the rod lightly, after building the optical system, please tighten so that the force that fixes the rod is even in each holder.
  • When configuring a large optical system or a long optical system, it may become distorted or become unstable due to vibration.
Primary material Aluminum
Guide Rod Diameter (Spaceing between rod) φ6mm (30x30mm)
Compatiblefixing screw M26.3 P0.75
Installation Slide from the end of rods
In stock
SKU
C30-UPF-L82
$97.00

Delivery in : 2 weeks

custom product
Customize product
Add to Wish List
A platform for fixing stages or accessories with 32mm pitch M3 screws or 20mm pitch M2 screws to a 30mm Cage assembly. A counterbore for 25mm pitch M6 screws enables fixing the 30mmCage assembly on a vibration isolation table or breadboard.
