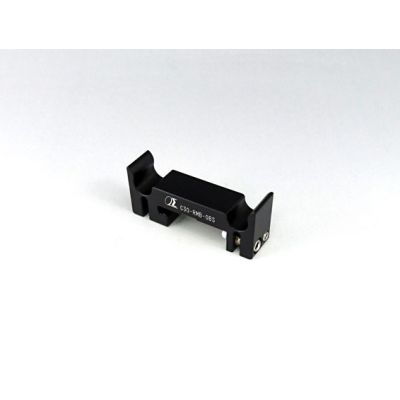

Cage Mounting base for OBS

C30-RMB-OBS

Skip to the beginning of the images gallery

It is a part for attaching the cage system to the aluminum rails.

◦ The cage system has no distinction of up, down, left and right. Therefore, it is possible to place the holder in various orientations, which is convenient for constructing a three-dimensional optical system.

More Information

More Information
Name	Cage Mounting base for OBS
Weight	0.0090kgs
Guide	Please contact our Sales for methods to fix the cage system to other equipment and parts not included in the WEB catalog. For consultation of optical system using cage system please contact Sales.
Attention	If the rod is tightened too tightly or if the tightening force is greatly different depending on the location, the rod may not fit in other holders. Initially fix the rod lightly, after building the optical system, please tighten so that the force that fixes the rod is even in each holder. When configuring a large optical system or a long optical system, it may become distorted or become unstable due to vibration.
Primary material	Aluminum
Guide Rod Diameter (Spaceing between rod)	φ6mm (30mm)

In stock

SKU

C30-RMB-OBS

$63.00

It is a part for attaching the cage system to the aluminum rails.
