Cage Mounting Base

C30-RMB

Cage Mounting Base
In stock
SKU
C30-RMB
It is a part for attaching the cage system to the post stand and compact Aluminum Rails others.
custom product
Customize product
Filters
Enabled filters :
Remove all filters

Attention ▶ If the rod is tightened too tightly or if the tightening force is greatly different depending on the location, the rod may not fit in other holders.
▶ Initially fix the rod lightly, after building the optical system, please tighten so that the force that fixes the rod is even in each holder.
▶ When configuring a large optical system or a long optical system, it may become distorted or become unstable due to vibration.

Name Delivery Price Add to cart
i
Cage Post Mounting Base

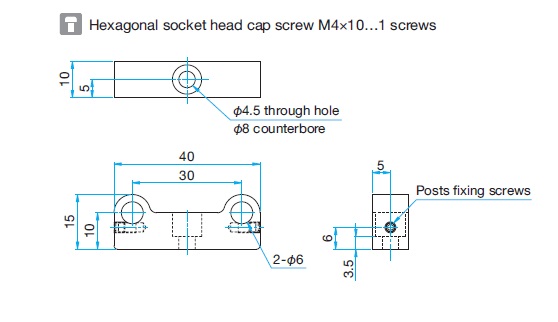

C30-RMBF-10
in stock
$23.46
Primary material Aluminum
Guide Rod Diameter (Spaceing between rod) φ6mm (30mm)
i
Cage Mounting base for OBS

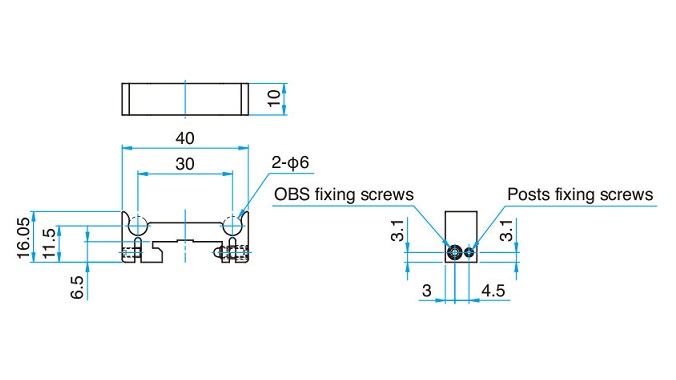

C30-RMB-OBS
in stock
$63.00
Primary material Aluminum
Guide Rod Diameter (Spaceing between rod) φ6mm (30mm)
i
Cage Post Mounting Base

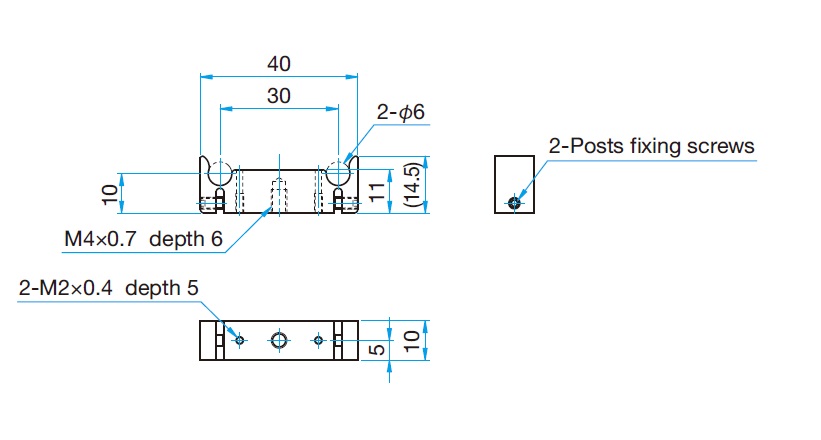

C30-RMB-10-M4
in stock
$64.00
Primary material Aluminum
Guide Rod Diameter (Spaceing between rod) φ6mm (30mm)
i
Cage Post Mounting Base
C30-RMB-10
in stock
$64.00
Primary material Aluminum
Guide Rod Diameter (Spaceing between rod) φ6mm (30mm)
i
Cage Post Mounting Base

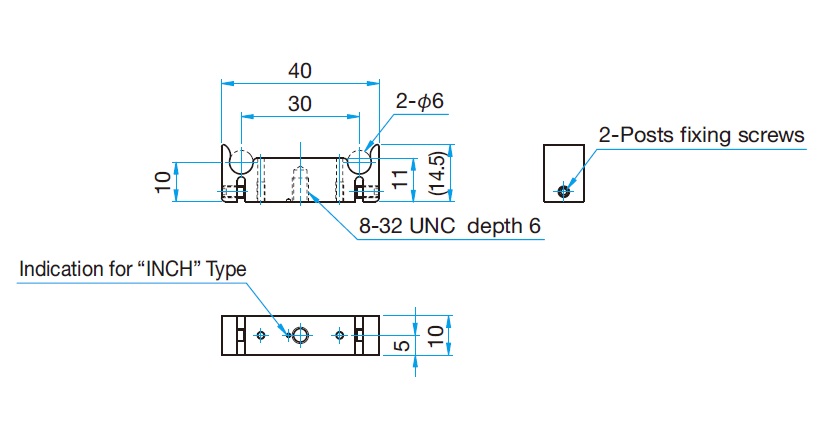

C30-RMB-10-8-32
in stock
$64.00
Primary material Aluminum
Guide Rod Diameter (Spaceing between rod) φ6mm (30mm)

You must be logged in to ask questions

◦ The cage system has no distinction of up, down, left and right. Therefore, it is possible to place the holder in various orientations, which is convenient for constructing a three-dimensional optical system.
