C30-RO
It is a rod for configuring the cage system.
Customize product
Filters
Enabled filters :
Remove all filters
Attention
▶ If the rod is tightened too tightly or if the tightening force is greatly different depending on the location, the rod may not fit in other holders.
▶ Initially fix the rod lightly, after building the optical system, please tighten so that the force that fixes the rod is even in each holder.
▶ When configuring a large optical system or a long optical system, it may become distorted or become unstable due to vibration.
Guide
▶ Shipped with the accessory set screws built in.
▶ Please contact our Sales for methods to fix the cage system to other equipment and parts not included in the WEB catalog.
▶ For consultation of optical system using cage system please contact Sales.

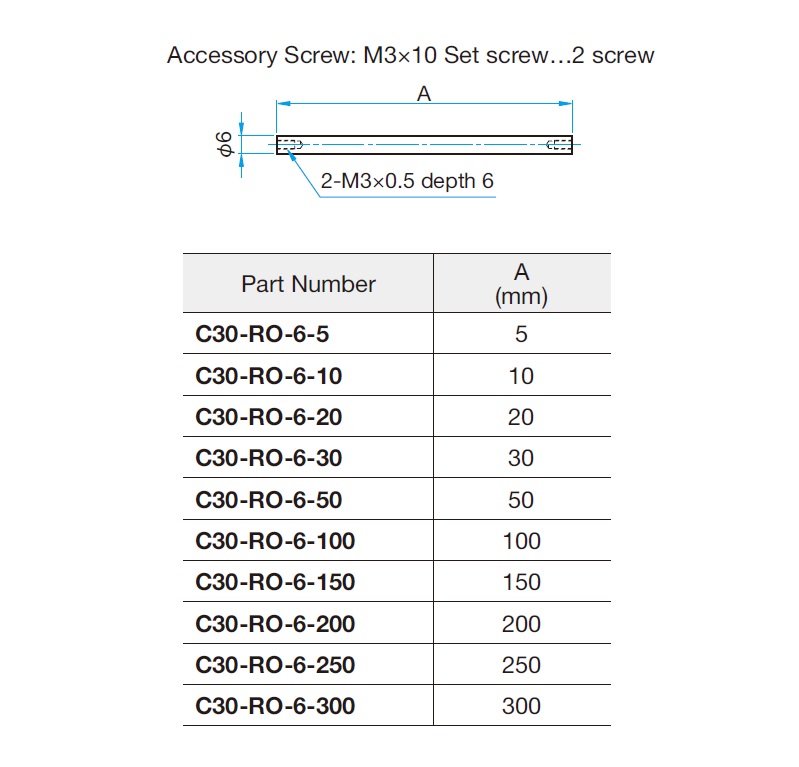

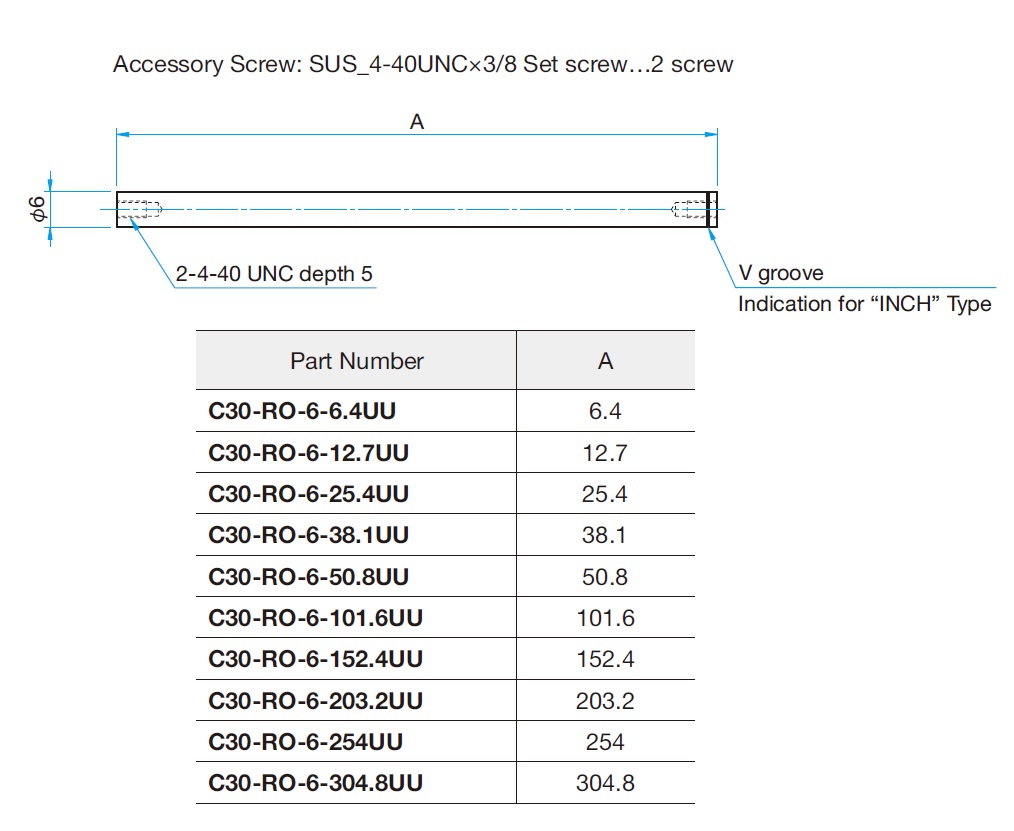

| Name | Length | Delivery | Price | Add to cart | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
