30mm Cage Components
OptoSigma’s 30mm CAGE Systems P30 (diameter: 6mm rods, 30mm pitch between the rods A large selection of accessories and adapters are available for integration into optical setups using mounting posts or lens tubes. Optic holders and accessories are supported by four (4) rigid steel rods (CAGES) to mount optical components along a common optical axis. In addition, the optic holders can split the optical axis and the cage into two or fold it 90 degrees. The CAGE system has no distinction of orientation. Therefore, it is possible to place the holder in various orientations, which is convenient for constructing a three-dimensional optical system. Our systems are compatible with industry standards, though, our intent was to design and build cage systems that are more stable and accurate vs. others on the market today. A unique feature is the ability to place and remove individual components by “Dropping them In-Place” when 3-rods are utilized. This is highly unique and convenient. Need help specifying components? Our sales engineers are standing by. Contact us anytime.
-
Out of stock -
Core Shading TubeSKU : C30-LST 0Used to shade the light path, and is built into the C30 series Cage system using the dedicated holder C30-LSH-□□. Learn More -
Cage Rotation Stage Adapter PlateSKU : C30-YMP 0Plate converting P.C.D.50mm upper M4 screws to 15mm pitch M4 screws or 8-32UNC screws. Learn More -
Cage Prism Retainer/ Cage Prism Retainer/SKU : C30-PC-PCRO 0Prism retainer is a component that can be used as a holder for fixing block-shaped optical elements such as cube beam splitters or prisms by fixing them to the screw holes. It is also possible to purchase only the post for prism ratiner. Learn More -

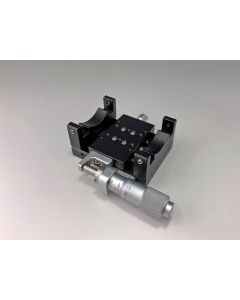

Cage Focus StageSKU : C30-FS-S 0C30-FS enables fine adjustment in the optical axis direction while assembling an objective lens adapter or a cross motion holder. Learn More -

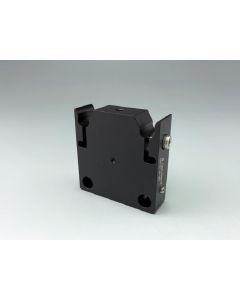

Cage Fixed Blank HolderSKU : C30-BP-BKP 0Cage Blank Plate is used when the standard product listed on our web site cannot be fit with the customer's system.
It can be processed any size or shape of the holes.
Rod fixing screws are supplied for the 4 through holes which dia. 6mm of rod for Cage(C30-RO-**: dia. 6mm). Learn More -
Cage Mounting plate for breadboardSKU : C30-BMP 0Mount directly on breadboard or vibration isolation table with C30-BMP. Learn More -

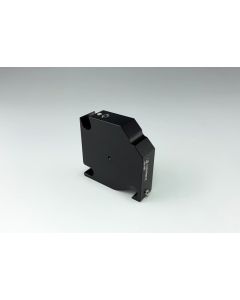

Cage Blank PlateSKU : C30-BKP-B 0Cage Blank Plate is used when the standard product listed on our web site cannot be fit with the customer's system.
It can be processed any size or shape of the holes.
Rod fixing screws are supplied for the 4 through holes which dia. 6mm of rod for Cage(C30-RO-**: dia. 6mm). Learn More -
Cage Rod Orthogonal AdapterSKU : C-LADP 0Cage Rod Orthogonal adapter is used to assemble 16mm cage system with 30mm cage system which are in orthogonal. There are four through holes with diameter of 4mm on the front of the adapter and two through holes with diameter of 6mm on the side. Rod fixing screws are supplied for each through holes. Learn More -
Cross Motion Holder for Cage Focus StageSKU : C30-FS-LHC 0Cross motion holder used in combination with the Cage focus stage. Learn More -
Objective Lens Adapter for Cage Focus StageSKU : C30-FS-APM 0Objective lens adapter used in combination with the Cage focus stage. Learn More -
Lens Holder for Cage Focus StageSKU : C30-FS-AP 0Lens holder of dia.25.4mm used in combination with the Cage focus stage. Learn More -

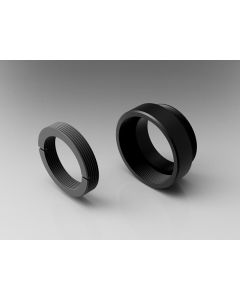

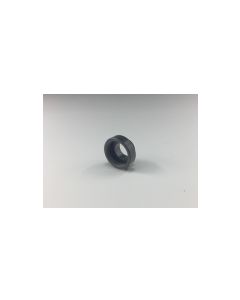

Objective Lens AdapterSKU : C30-OAD 0It is a conversion adapter for attaching the objective lens to the XY lens holder. Learn More -
Cage Two-axis Optic HoldersSKU : C30-LHC-TAT 0It is a holder that can place a pinhole in the cage system and fine adjust the position of the pinhole in the plane. Learn More -
Cage Two Axis Holder with TiltSKU : C30-ALH 0Tilt adjustment is added to Cage cross movement holder. It can be used as a device holder to adjust the positioning of the optics requires centering. Learn More -

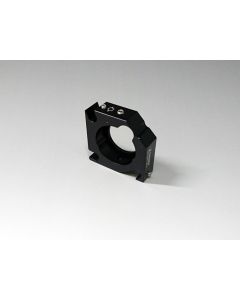

Cage Slot in Fixed Optic Mount (3 point support C30-SM3H)SKU : C30-SM3H 0It is a holder for incorporating optical elements such as lenses and filters into the cage system. Learn More -

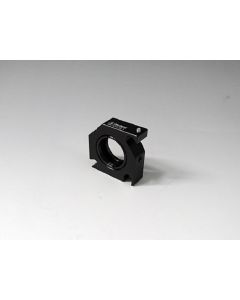

Cage Slot in Fixed Optic Mounts (Standard)SKU : C30-SLFH 0It is a holder for incorporating optical elements such as lenses and filters into the cage system. Learn More -

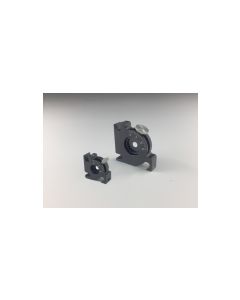

Cage Optic AdapterSKU : C30-MAD-LAD 0It is a conversion adapter to attach an optics with an outer diameter smaller than the adaptive size of the holder. Learn More -

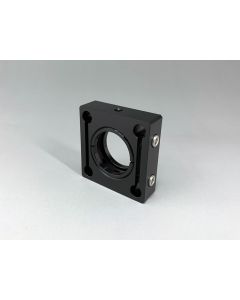

Cage High Stability PlateSKU : C30-HSP 0A holding plate that is more stable than standard post with fixing screws by clamping with the slotting and the bolts. Learn More -
Cage Fixed Optic MountSKU : C30-BP 0It is a holder for incorporating optical elements such as lenses and filters into the cage system. Learn More -
Cage Fixed Objective Lens Holders (Slot in)SKU : C30-BP-M-SLHO 0It is a holder for incorporating the objective lens into the cage system. Learn More -
Cage Normal Incidence Mirror MountsSKU : C30-KNH 0It is a mirror holder for normal incidence placed at the end of the rod. Precise angle adjustment is possible with the kinematic mirror mount. Learn More -
Cage 45-Degree Mirror MountSKU : C30-AMH3 0A triangular mirror holder that can bend the rod and optical axis to 90 degrees. It can precisely adjust the angle of the mirror. Learn More -
Cage 45-Degree Mirror MountsSKU : C30-AMH 0A triangular mirror holder that can bend the rod and optical axis to 90 degrees. It can precisely adjust the angle of the mirror. Learn More -
Cage Square Optics holderSKU : C30-CHA 0Holders for fixing square optics up to 4 to 16 mm in height and 5 mm in thickness. The upper and lower holder arms are covered with non-slip rubber sheets. Learn More -
Cage C-mount Adapter MountSKU : C30-SCMP 0It is a holder for incorporating the camera and camera lens attached to the C-mount Adapter into the cage system. Learn More -
Cage Fixed C-Mount AdapterSKU : C30-CMP 0Fixed C-mount holder to integrate an adapter-attached camera or camera lens into a cage system. Learn More -

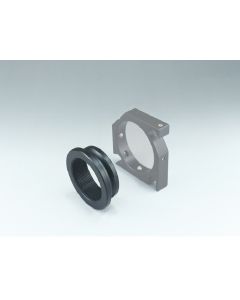

Cage C-mount AdaptersSKU : C30-CMA 0It is an adapter for attaching the C-mount camera and camera lens to C-mount Adapter Mount. Learn More -
-
CageCoer Holder for OpticsSKU : C30-CU-LFH 0Optics holder for dia. 12.7mm or 25.4mm that can be shared with 30mmCage system and core unit. Learn More -
Cage Prism HoldersSKU : C30-PLH-PAD 0It is a holder for incorporating a prism such as a cube beam splitter into the cage system. Learn More -

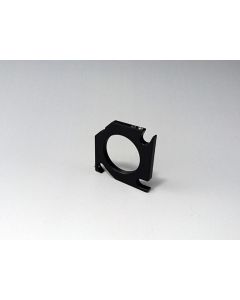

Cage M26.3×0.635 PlateSKU : C30-STHP 0Optical components can be assembled with 30mm Cage system directly by using Cage M26.3*0.635 Plate.
Side-in type plate allows to assemble/deassemble with/from the cage system while the system constructed.
Suitable thickness plate can be selected from various lineup of the plate.
Optical components can be arranged in the cage system with narrow gaps by using the plate. Learn More -

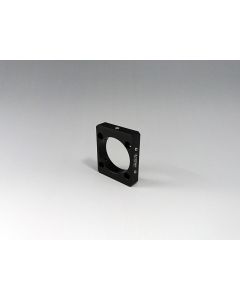

Cage Through Hole PlateSKU : C30-SP-RP 0There is a 30mm clear aperture at the center of Cage Through Hole Plate (C30-4RP-**) to assemble the Cage Through Hole Plate with cage system and there are also through holes to assemble cage rod which diameter of 6mm. Learn More -
Mounting Plate for Cage Collimation LensSKU : C30-SP-M 0A plate directly fixes the collimating lens to the 30mm cage system. A375T / A355T (M9x0.5) and other standard screws are also supported. Learn More -
Cage Alignment HolderSKU : C30-AP 0A plate that holds the optics of dia. 12.7mm in the 30mm Cage assembly and enables coarse position adjustment (movable range dia.1mm) in the plane. Loosen the two screws of the movable plate and adjust the position of the movable plate, then manually tighten and fix it. Learn More -
Cage Filter HolderSKU : C30-NDWH 0Specially designed holder for Cage system, in which multiple filters are assembled to a revolver and inserted into the light path by rotating the revolver.
The Revolver can be used to switch the amount of transmitted light by installing ND filters with different OD, or to switch the wavelength of transmitted light by installing color filters, etc. Learn More -

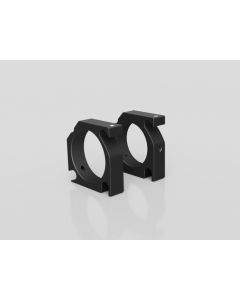

Cage Side-in Focusing Lens Holder/ Cage Side-in Tube Lens HolderSKU : C30-SLFH-M 0Holder to integrate focusing lens or tube lens into the Cage system. Learn More -
Cage Vertical PlateSKU : C30-VP 0A plate for fixing to a vibration isolation table or breadboard with 25mm pitch M6 or 25.4mm pitch 1/4-20UNC screws to build a 30mm or 60mm Cage assembly vertically. Learn More -

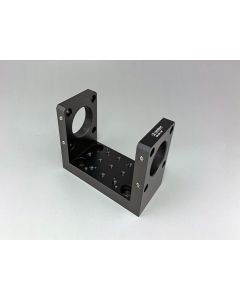

Cage U-Shape Adapter PlatformSKU : C30-UPF 0U-shaped platform for mounting stages and accessories to 30mmCage assemblies. The 30mmCage assemblies can also be fixed to a vibration isolation table or breadboard. Learn More -

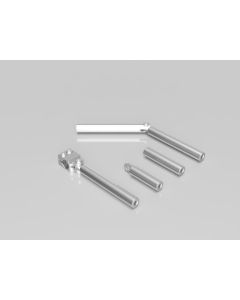

Cage Rod endSKU : C30-ROD-END 0Used to extend a cage system in directions other than straight or right angles.
Can be used for optical systems where the light path is bent to an unspecified angle, such as diffraction gratings or prisms. Learn More -
-
Cage Post Stand Adapter PlateSKU : C30-RMP 0A plate for fixing a post or pole to a 30mmCage assembly or mounting a 30mmCage assembly on a post. Learn More -
Cage Mounting BaseSKU : C30-RMB 0It is a part for attaching the cage system to the post stand and compact Aluminum Rails others. Learn More -
Cage Post Side HolderSKU : C30-PSH 0A holder which can horizontally fix the 30mmCage assembly. The Cage assembly can be easily detached by loosening the clamping bolt. Learn More -
Cage Fixed Shift PlateSKU : C30-OFS 0When the beam passes a plate type beamsplitter, the beam is shifted due to its thickness.
C30-OFS can compensate the beam shift by a plate type beamsplitter to the center of the optics. Learn More -

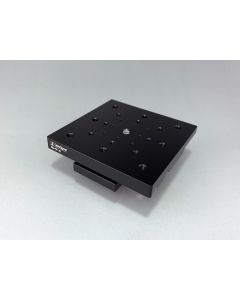

Cage Flat Type Adapter PlatformSKU : C30-FPF 0Platform for mounting stages and accessories with metric series mounting holes, fixed to a 30mm or 60mm Cage assembly. Learn More -
Cage Mounting CubeSKU : C30-CB 0An adapter that can be attached to the cube joint where the rods are mounted in four directions and an adapter that can be attached to the top or bottom of the joint. Learn More -
CageCore Polarizer HolderSKU : C30-CU-MPH 0A polarizer holder that can be shared with the 30mm Cage system and core unit. Learn More -
CageCore Mount for C Mount CameraSKU : C30-CU-SCMP 0It is a holder for incorporating the camera and camera lens attached to the C-mount Adapter into the core unit for microscopy Learn More -
CageCore Rod Conversion PlateSKU : C30-CU-RPCP-P 0A plate to convert 16mm cage systems, 30mm cage systems and core units to each other. Learn More -
CageCore Stage Mounting BaseSKU : C30-CU-OLSM 0A stage mount base for the core unit that allows to mount a 25x25mm or 40x40mm size stage and an objective lens to achieve a compact sample observation unit. Learn More -
CageCore Sample Holder Assemble with OBSSKU : C30-CU-RPCPS 0A plate to connect the core unit system to the 30mmCage system in a coaxial manner. Learn More -

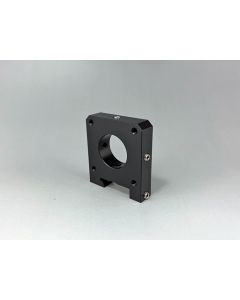

CageCore Multi-Purpose HolderSKU : C30-CU-LCH 0Multi-purpose holder that can be shared by 30mmCage system and core unit. Since the fixing screw is in 4 directions, it can be used as a holder of dia. 15mm or less or a simple cross motion holder. Learn More -

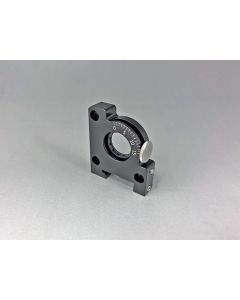

CageCore Iris HolderSKU : C30-CU-IH 0A diaphragm holder that can be shared with 30mmCage system and core unit. Learn More -
Blank Holder for Cage Focus StageSKU : C30-FS-BKP 0Blank holder used in combination with the Cage focus stage. The point center mark at the center of the optical axis is a diameter of 2 mm as a reference for additional machining. Learn More -

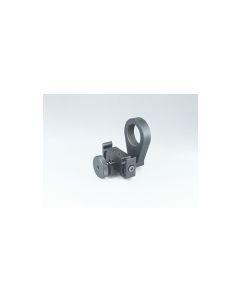

Cage Objective Lens Focus MountSKU : C-TBP-30 0◦ Objective lens focus mount are supported by two rods (cages) Learn More -
Cage Slot in Fixed Optic Mounts (Standard)SKU : C-SMH - BP - SLFH-30 0◦ The cage system has two types, P30 (Dia. 6mm rods, 30mm pitch between the rods) and P16 (Dia. 4mm rods, 16mm pitch between the rods).
◦ The holder plate of cage system has two types of addon methods which are side-in type and slide-in type. The side-in type can attach and detach the holder plate while the cage system are built. The slide-in type must be built in the cage system beforehand, but it is possible to firmly fix the holder plate to the cage (rod).
◦ The holder plate can slide through the rod (cage) in the direction of the optical axis. Even without using the stage, it can easily adjust focus on the lens and camera. Learn More -
Cage C-mount Adapter MountSKU : C-SCMP-30 0Holder for incorporating the camera and camera lens attached to the C-mount Adapter into the cage system. Learn More -
Cage Rod Pitch Conversion PlateSKU : C-RPCP-30 0◦ The cage system has two types, P30 (Dia. 6mm rods, 30mm pitch between the rods) and P16 (Dia. 4mm rods, 16mm pitch between the rods).
◦ The cage system has no distinction of up, down, left and right. Therefore, it is possible to place the holder in various orientations, which is convenient for constructing a three-dimensional optical system. Learn More -

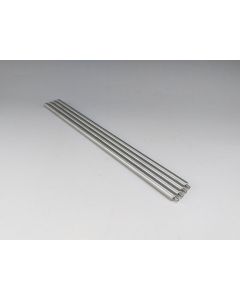

Cage Guide RodsSKU : C-RO-30 0◦ The cage system has two types, P30 (Dia. 6mm rods, 30mm pitch between the rods) and P16 (Dia. 4mm rods, 16mm pitch between the rods).
◦ Mirror holders are supported by four (or three) rods (cages).
◦ The cage system has no distinction of up, down, left and right. Therefore, it is possible to place the holder in various orientations, which is convenient for constructing a three-dimensional optical system. Learn More -
Cage Post Mounting BaseSKU : C-RMB-30 0◦ The cage system has no distinction of up, down, left and right. Therefore, it is possible to place the holder in various orientations, which is convenient for constructing a three-dimensional optical system. Learn More -
Cage Prism HoldersSKU : C-PLH - PAD-30 0◦ The cage system has two types, P30 (Dia. 6mm rods, 30mm pitch between the rods) and P16 (Dia. 4mm rods, 16mm pitch between the rods).
◦ The holder plate can slide through the rod (cage) in the direction of the optical axis. Even without using the stage, it can easily adjust focus on the lens and camera. Learn More -
-
Cage Polarizer HoldersSKU : C-MPH-30 0◦ The cage system has two types, P30 (Dia. 6mm rods, 30mm pitch between the rods) and P16 (Dia. 4mm rods, 16mm pitch between the rods).
◦ The holder plate can slide through the rod (cage) in the direction of the optical axis. Even without using the stage, it can easily adjust focus on the lens and camera. Learn More -
Cage Two-axis Optic HoldersSKU : C-LHC - TAT-30 0◦ The cage system has two types, P30 (Dia. 6mm rods, 30mm pitch between the rods) and P16 (Dia. 4mm rods, 16mm pitch between the rods).
◦ The holder plate can slide through the rod (cage) in the direction of the optical axis. Even without using the stage, it can easily adjust focus on the lens and camera. Learn More -
Cage Normal Incidence Mirror MountsSKU : C-KNH-30 0◦ Mirror holders are supported by four (or three) rods (cages). In addition, the mirror holder can split the optical axis and the cage into two, or fold it to 90 degrees.
◦ The cage system has no distinction of up, down, left and right. Therefore, it is possible to place the holder in various orientations, which is convenient for constructing a three-dimensional optical system. Learn More -
Cage Iris Diaphragm HoldersSKU : C-IH-30 0◦ The cage system has two types, P30 (Dia. 6mm rods, 30mm pitch between the rods) and P16 (Dia. 4mm rods, 16mm pitch between the rods).
◦ The holder plate can slide through the rod (cage) in the direction of the optical axis. Even without using the stage, it can easily adjust focus on the lens and camera. Learn More -
Cage Gimbal MountSKU : C-GBH-30 0◦ Mirror holders are supported by two rods (cages).
◦ The cage system has no distinction of up, down, left and right. Therefore, it is possible to place the holder in various orientations, which is convenient for constructing a three-dimensional optical system. Learn More -

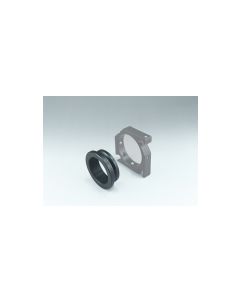

Cage C-mount AdaptersSKU : C-CMA-30 0Adapter for attaching the C-mount camera and camera lens to C-mount Adapter Mount. Learn More -
Cage Gimbal Mirror MountSKU : C-CGBH-30 0◦ Mirror holders are supported by four (or three) rods (cages). In addition, the mirror holder can split the optical axis and the cage into two, or fold it to 90 degrees.
◦ The cage system has no distinction of up, down, left and right. Therefore, it is possible to place the holder in various orientations, which is convenient for constructing a three-dimensional optical system. Learn More -
Cage Mounting CubeSKU : C-CB-30 0◦ Mirror holders are supported by four (or three) rods (cages). In addition, the mirror holder can split the optical axis and the cage into two, or fold it to 90 degrees.
◦ The cage system has no distinction of up, down, left and right. Therefore, it is possible to place the holder in various orientations, which is convenient for constructing a three-dimensional optical system. Learn More -
Cage Fixed Objective Lens Holders (Slot in)SKU : C-BP-M - SLHO-30 0Holder for incorporating the objective lens into the cage system. Learn More -
-
Cage Rod Pitch Conversion PlateSKU : C-RPCP 0An adapter plate to convert P30 (Dia. 6mm rods, 30mm pitch between the rods) system into P16 (Dia. 4mm rods, 16mm pitch between the rods). Learn More
