Cage Mounting Cube

C16-CB

Cage Mounting Cube
In stock
SKU
C16-CB
Cage Mounting Cube is used to fix cube type optics with 16mm compact cage system.
custom product
Customize product
Filters
Enabled filters :
Remove all filters

Attention ▶ If the rod is tightened too tightly or if the tightening force is greatly different depending on the location, the rod may not fit in other holders.
▶ Initially fix the rod lightly, after building the optical system, please tighten so that the force that fixes the rod is even in each holder.
▶ When configuring a large optical system or a long optical system, it may become distorted or become unstable due to vibration.

Name Delivery Price Add to cart
i

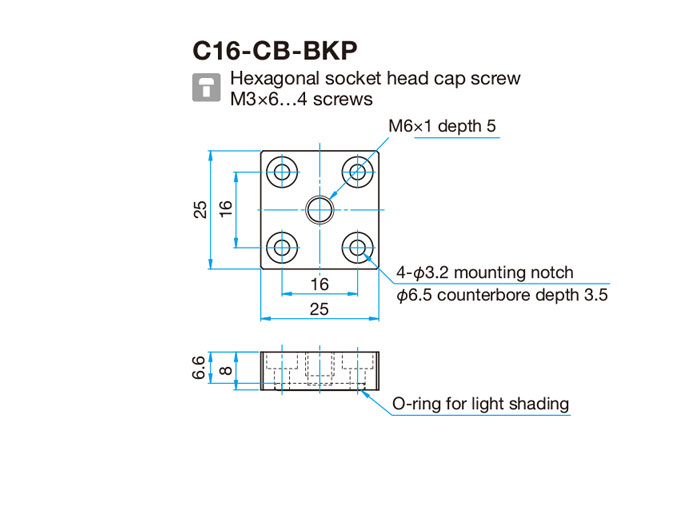

Cage Blank Plate for Cube Joint
C16-CB-BKP
2 weeks
$22.44
Primary material Aluminum
Products Name Cage Blank Plate for cube joint
Guide Rod Diameter (Spaceing between rod) φ4mm (16x16mm)
Thougth Hole Diameter -
Guide Rod Mounting Surfaces -
Distance to center -
Compatible Optics Diameter -
Clear Aperture -
Compatible Mount C16-CB-H12.7
Compatiblefixing screw M6 P1
i

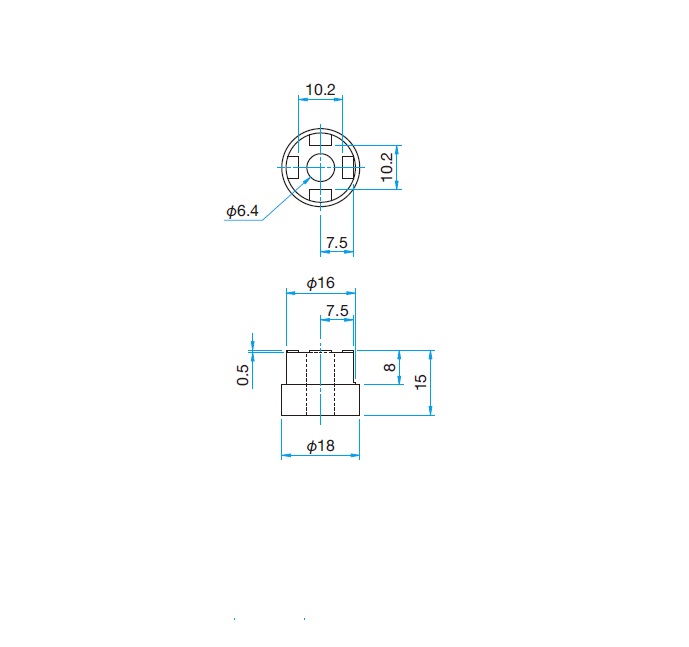

Cage Prism adapter for Cube Joint
C16-CBPH-10
in stock
$13.26
Primary material Aluminum
Products Name Cage Prism adapter for Cube Joint
Guide Rod Diameter (Spaceing between rod) -
Thougth Hole Diameter -
Guide Rod Mounting Surfaces -
Distance to center -
Compatible Optics Diameter □10mm
Clear Aperture φ6.4mm
Compatible Mount C16-CB-H12.7
Compatiblefixing screw -
i

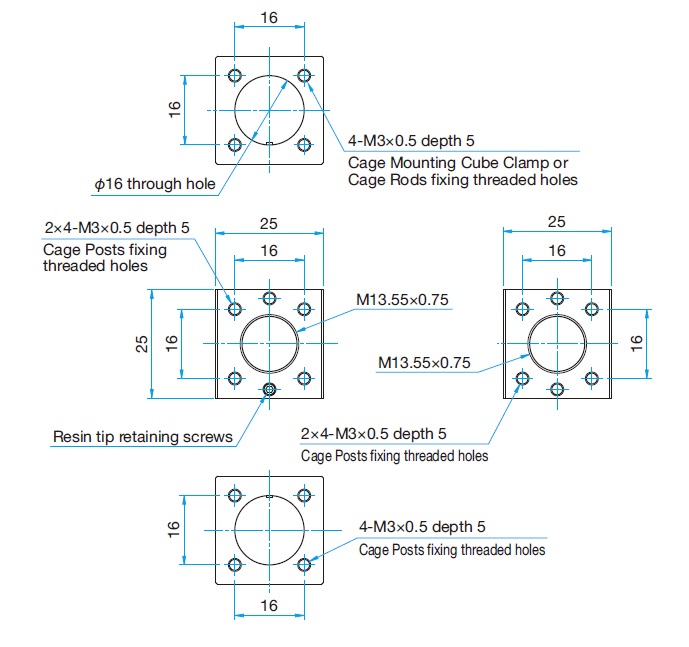

Cage Mounting Cube
C16-CB-H12.7
2 weeks
$60.00
Primary material Aluminum
Products Name Cage Mounting Cube
Guide Rod Diameter (Spaceing between rod) φ4mm (16x16mm)
Thougth Hole Diameter φ16mm
Guide Rod Mounting Surfaces 6 faces
Distance to center 12.5mm
Compatible Optics Diameter -
Clear Aperture -
Compatible Mount -
Compatiblefixing screw -
i
Cage Clamping plate for Cube Joint
C16-CBCP
2 weeks
$29.58
Primary material Aluminum
Products Name Cage Clamping plate for Cube Joint
Guide Rod Diameter (Spaceing between rod) -
Thougth Hole Diameter -
Guide Rod Mounting Surfaces -
Distance to center -
Compatible Optics Diameter -
Clear Aperture -
Compatible Mount C16-CB-H12.7
Compatiblefixing screw -

You must be logged in to ask questions

◦ Mirror holders are supported by four (or three) rods (cages). In addition, the mirror holder can split the optical axis and the cage into two, or fold it to 90 degrees.
◦ The cage system has no distinction of up, down, left and right. Therefore, it is possible to place the holder in various orientations, which is convenient for constructing a three-dimensional optical system.
