Cage 45-Degree Mirror Mounts

C-AMH-16

Cage 45-Degree Mirror Mounts
In stock
SKU
C-AMH-16
◦ The cage system has two types, P30 (Dia. 6mm rods, 30mm pitch between the rods) and P16 (Dia. 4mm rods, 16mm pitch between the rods).
◦ Mirror holders are supported by four (or three) rods (cages). In addition, the mirror holder can split the optical axis and the cage into two, or fold it to 90 degrees.
◦ The cage system has no distinction of up, down, left and right. Therefore, it is possible to place the holder in various orientations, which is convenient for constructing a three-dimensional optical system.
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name Delivery Price Add to cart
i

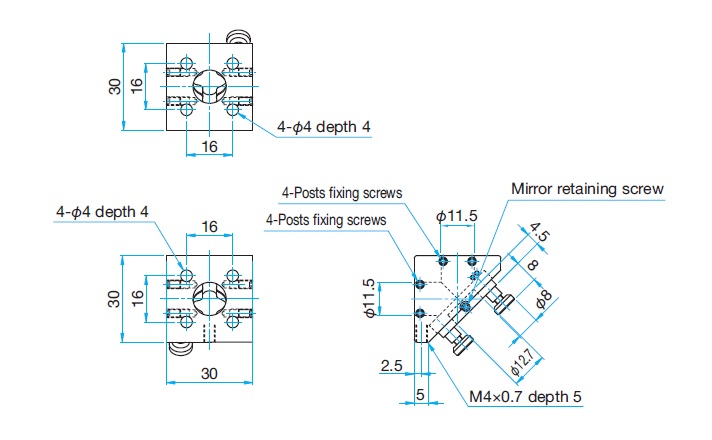

Cage 45-Degree Mirror Mount
C16-AMH-12.7
in stock
$194.00
Primary material Aluminum
Guide Rod Diameter (Spaceing between rod) φ4mm (16x16mm)
Compatible Optics Diameter φ12.7mm
Compatible Optics Thickness 3 - 5mm
Clear Aperture φ11.5mm
Incident angle 45°
Adjustment Range /Tilt ±3°
Adjustment Range /Rotation ±3°
Resolution /Tilt 0.75°/rotation
Resolution /Rotation 0.75°/rotation
