Kinematic Platform Mirror Holders

MMHN

Kinematic Platform Mirror Holders
In stock
SKU
MMHN
Rectangular mirrors can be bonded to the front plate and circular mirrors can be bonded or held with the mirror adapters (MKAD).
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name Delivery Price Add to cart
i
Small Kinematic Mirror Holder for 50mm Optic
MMH-50H
in stock
$189.00
Compatible Optics Diameter <□50mm/φ40mm
Fine-Adjustment Range /Tilt ±4°
Fine-Adjustment Range /Rotation ±4°
Resolution /Tilt about 0.38°/rotation
Resolution /Rotation about 0.38°/rotation
i
Small Kinematic Mirror Holder R Type for 25mm Optic
MMHN-25R
2 weeks
$95.00
Compatible Optics Diameter <□25mm/<φ25mm
Fine-Adjustment Range /Tilt ±5°
Fine-Adjustment Range /Rotation ±5°
Resolution /Tilt about 0.9°/rotation
Resolution /Rotation about 0.9°/rotation
i
Small Kinematic Mirror Holder for 25mm Optic
MMHN-25BN
2 weeks
$84.00
Compatible Optics Diameter <□25mm/<φ25mm
Fine-Adjustment Range /Tilt ±5°
Fine-Adjustment Range /Rotation ±5°
Resolution /Tilt about 0.9°/rotation
Resolution /Rotation about 0.9°/rotation
i
Small Kinematic Mirror Holder Inch L Type for 25mm Optic
MMHN-25L-UU
in stock
$95.00
Compatible Optics Diameter <□25mm/<φ25mm
Fine-Adjustment Range /Tilt ±5°
Fine-Adjustment Range /Rotation ±5°
Resolution /Tilt about 0.9°/rotation
Resolution /Rotation about 0.9°/rotation
i
Small Kinematic Mirror Holder M6 for 50mm Optic
MMH-50M6
2 weeks
$189.00
Compatible Optics Diameter <□50mm/φ40mm
Fine-Adjustment Range /Tilt ±4°
Fine-Adjustment Range /Rotation ±4°
Resolution /Tilt about 0.38°/rotation
Resolution /Rotation about 0.38°/rotation
i

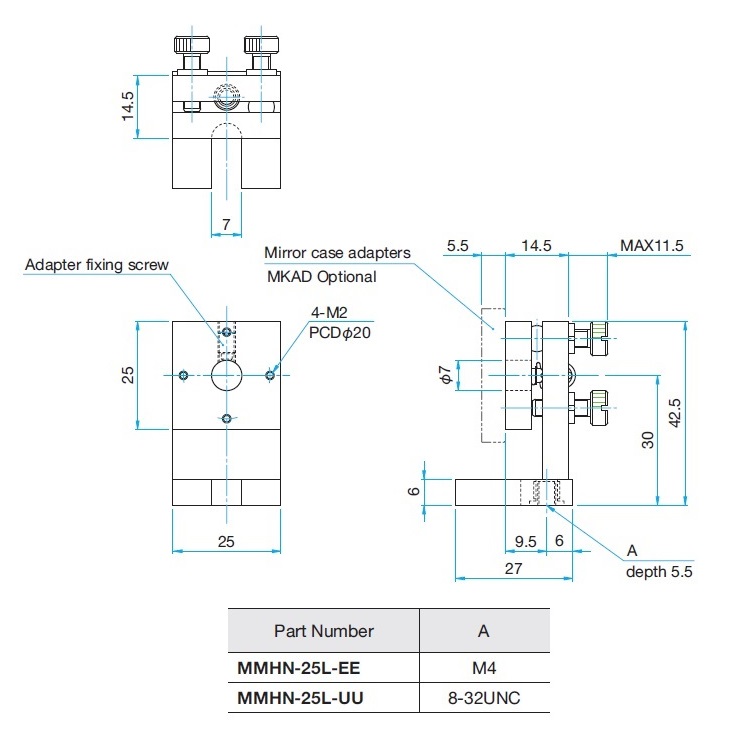

Small Kinematic Mirror Holder Metric L Type for 25mm Optic
MMHN-25L-EE
6-12 weeks
$95.00
Compatible Optics Diameter <□25mm/<φ25mm
Fine-Adjustment Range /Tilt ±5°
Fine-Adjustment Range /Rotation ±5°
Resolution /Tilt about 0.9°/rotation
Resolution /Rotation about 0.9°/rotation
i
Small Kinematic Mirror Holder Inch R Type for 25mm Optic
MMHN-25R-UU
6-12 weeks
$95.00
Compatible Optics Diameter <□25mm/<φ25mm
Fine-Adjustment Range /Tilt ±5°
Fine-Adjustment Range /Rotation ±5°
Resolution /Tilt about 0.9°/rotation
Resolution /Rotation about 0.9°/rotation
i
Small Kinematic Mirror Holder L Type for 25mm Optic
MMHN-25L
2 weeks
$95.00
Compatible Optics Diameter <□25mm/<φ25mm
Fine-Adjustment Range /Tilt ±5°
Fine-Adjustment Range /Rotation ±5°
Resolution /Tilt about 0.9°/rotation
Resolution /Rotation about 0.9°/rotation
i

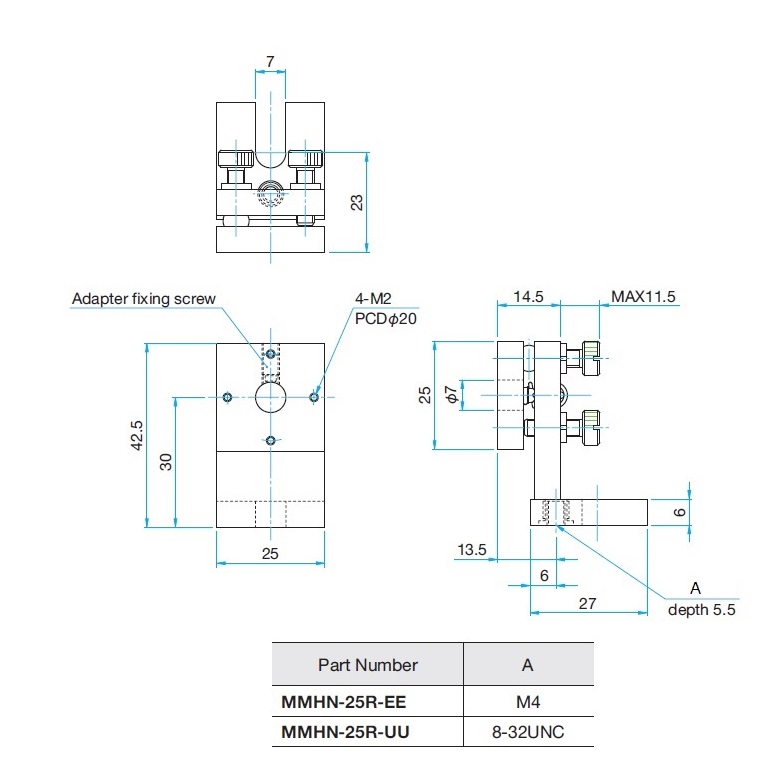

Small Kinematic Mirror Holder Metric R Type for 25mm Optic
MMHN-25R-EE
6-12 weeks
$95.00
Compatible Optics Diameter <□25mm/<φ25mm
Fine-Adjustment Range /Tilt ±5°
Fine-Adjustment Range /Rotation ±5°
Resolution /Tilt about 0.9°/rotation
Resolution /Rotation about 0.9°/rotation

You must be logged in to ask questions

▶25mm square aluminum flat mirrors (TFA-25S05-10) are available.
WEB Reference Catalog Code/W3403
