Lens Tube, 20mm Lens, 100mm Long

LHT-20T-100

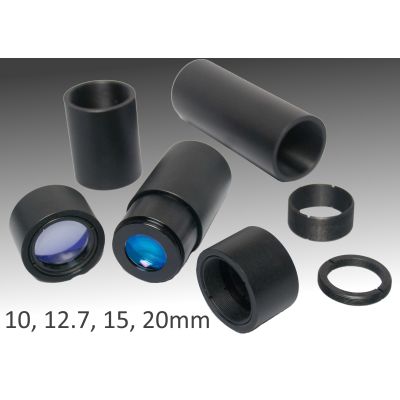

The small size lens tubes (20mm) along with the lens cells covers lenses with diameters 10, 12.7, 15 and 20mm. Lens cells are used within lens tubes to allow adjustment of lens groups simultaneously. They also allow small optics to be easily mounted in the same lens tube with larger optics. The threads used with the Nesting Lens Tube family are common to other OptoSigma optomechanical hardware allow mixing of tube mounted optics with existing mounts and optic holders.
◦Lens tubes allow rigid mounting of multiple optical elements along a fixed axis. LHT series lens tubes have optional lens cells that thread into the main tube allowing focusing movement of lens groups within the lens cell.
◦These Nesting Lens Tubes can mount smaller lenses including 10, 12.7, 15, and 20mm lenses
◦There are adaptors allowing smaller lens cells to be used within larger lens tubes.
More Information
Name Lens Tube, 20mm Lens, 100mm Long
Weight 0.1000kgs
Attention Retaining rings and washers are sold separately (not included). 20mm Lens Tubes cannot mount within the guide rods of the 16mm Optics Cage. 34mm Lens Tubes cannot mount within the guide rods of the 30mm Optics Cage.
Length 100mm
Optic Diameter φ20mm
Compatible Lens Tube Family 20mm Lens Tubes
Internal Thread M20.85 P0.75
External Thread None, 25mm OD
In stock
SKU
LHT-20T-100
$34.68

Delivery in : in stock

The small size lens tubes (20mm) along with the lens cells covers lenses with diameters 10, 12.7, 15 and 20mm. Lens cells are used within lens tubes to allow adjustment of lens groups simultaneously. They also allow small optics to be easily mounted in the same lens tube with larger optics. The threads used with the Nesting Lens Tube family are common to other OptoSigma optomechanical hardware allow mixing of tube mounted optics with existing mounts and optic holders.
