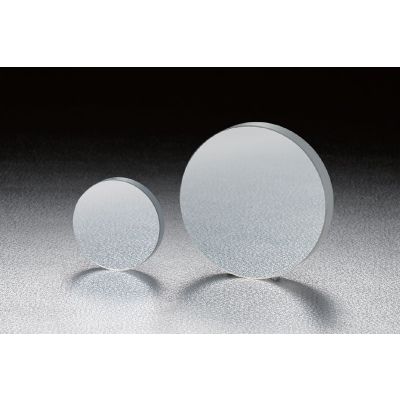

Reasonable Aluminum Flat Mirror 40mm 6mm Thick λ/10

S-TFA-40C06-10

An economic general use mirror suitable for an illumination optical system and a simple experiments. It has the same reflectance and surface flatness as our aluminum mirrors (TFA) designed for use with a laser, but lower surface quality.
◦The dirt on the surface of the mirror can be wiped because the scratch-resistant protection is coated on the aluminum coating.
◦Reflectance of less variation can be obtained in a wide wavelength range from visible to near-infrared.
More Information
Name Reasonable Aluminum Flat Mirror 40mm 6mm Thick λ/10
Weight 0.0200kgs
Standard Coatings Available No
Guide -
Remark -
Attention
  • When a laser is transmitted with multiple mirrors installed, there will be loss of a large amount of light caused by the absorption of the aluminum coating. Please switch to dielectric multi-layer mirrors (TFM) for improved performance.
  • Reflectance specification is represented by the average of the reflectance of P polarized light and S polarized light. Reflectance may vary depending on the polarization state of the incident beam.
Image Label Reasonable Aluminum Flat Mirror 40mm 6mm Thick λ/10
Diameter φD 40mm
Rear Surface Polished
Reflectance Rave.>90%
Material BK7
Coating Al+MgF2
Parallelism <3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Surface Quality (Scratch-Dig) 60-40
Diameter φD φ40mm
Outer dimension A×B
Thickness t 6mm
Surface Flatness λ/10
Rear surface Polished
In stock
SKU
S-TFA-40C06-10
$53.00

Delivery in : 6-12 weeks

An economic general use mirror suitable for an illumination optical system and a simple experiments. It has the same reflectance and surface flatness as our aluminum mirrors (TFA) designed for use with a laser, but lower surface quality.
