Infrared (NIR) Objective Lens, 0.7mm Glass Thickness Compensation

PAL-50-NIR-L-LC07

Skip to the beginning of the images gallery

This is a high NA infinity corrected objective lens for laser processing (fundamental of YAG laser). Its glass-thickness- compensation optical design makes it possible to realize an ideal beam spot size and quality even if it was processed thorough a cover glass.

Details

◦Two kinds objective lenses are available. They are designed to correct aberration depending on the thickness of cover glass. (t= 0.7 mm and 1.1 mm) ◦With its long working infinity correction function; this objective lens can be used for a laser system and coaxial observation.
◦It is also used for the observation of Near Infrared light.
◦High resolution type (NA=0.65) is also available.
◦This objective lens can be used with a pulse laser of visible light (532nm).
◦Laser Damage Threshold(reference): 0.1J/cm² (532nm), 0.2 J/cm² (1064nm) (Laser pulse width: 10ns, repetition frequency: 20Hz)

More Information

More Information
Name	Infrared (NIR) Objective Lens, 0.7mm Glass Thickness Compensation
Weight	0.3400kgs
Standard Coatings Available	No
Guide	Available fixed objective lens holder (LHO-26). WEB Reference Catalog Code/W4024 When the objective lens is fixed to a 2 axis holder, please consult our Sales Division. For laser processing, we offer a dichroic block (DIMC) and for laser unit with coaxial illumination and observation (OUCI-2). WEB Reference Catalog Code/W2041, WEB Reference Catalog Code/W2012
Remark	-
Attention	When an objective lens is used in laser processing, use the diameter of the incident beam to extend to a size of half the pupil diameter (1/e²). A small light spot cannot be achieved when the incident beam is too narrow. Please note if there is a laser energy density increase, there will be a high possibility of damage to the objective lens. When the thickness of cover glass is not same as the specified, designed specifications may not be achieved due to aberration. If the incident laser beam femtosecond is below 100fs, there is a possibility that the pulse width will spread. Magnification is the value when using the imaging lens f=200mm. When used in a microscope lens barrel from other manufacturers there may be different magnifications. The actual magnification should be calculated from the ratio of the focal length of the objective lens and the focal length of the imaging lens to verify the focal length of the imaging lens barrel to be used.

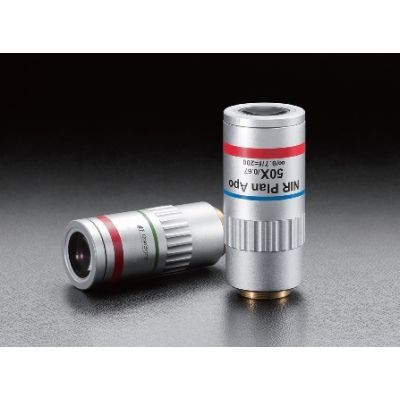

Image Label	Infrared (NIR) Objective Lens
Focal length	4mm
Magnification	50×
Numerical Aperture	0.45
Working Distance WD	15.01mm
Item name	LCD MPlanApo NIR 50x (t0.7)
Resolution (λ=550nm)	0.61μm
Focal depth (λ=550nm)	±1.4μm
Pupil diameter	φ3.6mm
Real field of View (Imaging device 1/2-inch)	0.10×0.13mm
Weight	0.34kg
Cover glass material	Synthetic Quartz

In stock

SKU

PAL-50-NIR-L-LC07

$4,079.00

Infrared (NIR) Objective Lens, 0.7mm Glass Thickness Compensation
