N-BK7, BiConvex Lenses (AR 633-1064nm)

SLB-B-P-IR1

N-BK7, BiConvex Lenses (AR 633-1064nm)
Out of stock
SKU
SLB-B-P-IR1
Symmetrical biconvex lenses are most useful when dealing with fnite conjugate points. This
makes them ideal for 1:1 imaging applications or for use in multi-element systems.
Add to Wish List
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name Diameter φD Focal length Delivery Price Add to cart
i
Biconvex Lens 50.8mm Diameter 121.3mm Focal Length 633 - 1064nm
SLB-50.8B-120PIR1 		50.8mm 121.3mm
in stock
$103.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm

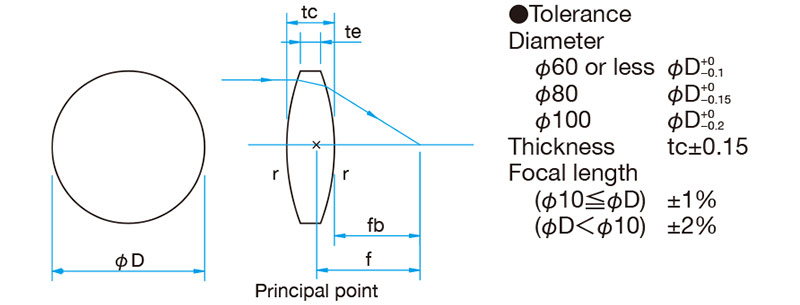

Diameter φD φ50.8mm
Focal length f 121.3mm
Edge thickness te 2.8mm
Center thickness tc 8mm
Back focal length fb 118.6mm
Radius of curvature r 124.56mm
Centration ＜1′
i
Biconvex Lens 100mm Diameter 701.1mm Focal Length 633 - 1064nm
SLB-100B-700PIR1 		100mm 701.1mm
6-12 weeks
$299.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ100mm
Focal length f 701.1mm
Edge thickness te 3mm
Center thickness tc 6.4mm
Back focal length fb 698.9mm
Radius of curvature r 726.6mm
Centration ＜1′
i
Biconvex Lens 6mm Diameter 6.4mm Focal Length 633 - 1064nm
SLB-06B-06PIR1 		6mm 6.4mm
6-12 weeks
$70.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ6mm
Focal length f 6.4mm
Edge thickness te 1mm
Center thickness tc 2.5mm
Back focal length fb 5.6mm
Radius of curvature r 6.23mm
Centration ＜3′
i
Biconvex Lens 12.7mm Diameter 30.6mm Focal Length 633 - 1064nm
SLB-12.7B-30PIR1 		12.7mm 30.6mm
in stock
$53.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ12.7mm
Focal length f 30.6mm
Edge thickness te 2mm
Center thickness tc 3.3mm
Back focal length fb 29.5mm
Radius of curvature r 31.14mm
Centration ＜1′
i
Biconvex Lens 25mm Diameter 50.8mm Focal Length 633 - 1064nm
SLB-25B-50PIR1 		25mm 50.8mm
6-12 weeks
$78.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25mm
Focal length f 50.8mm
Edge thickness te 2mm
Center thickness tc 5.1mm
Back focal length fb 49.2mm
Radius of curvature r 51.9mm
Centration ＜1′
i
Biconvex Lens 30mm Diameter 250.5mm Focal Length 633 - 1064nm
SLB-30B-250PIR1 		30mm 250.5mm
6-12 weeks
$70.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ30mm
Focal length f 250.5mm
Edge thickness te 2mm
Center thickness tc 2.9mm
Back focal length fb 249.5mm
Radius of curvature r 259.5mm
Centration ＜1′
i
Biconvex Lens 50.8mm Diameter 201mm Focal Length 633 - 1064nm
SLB-50.8B-200PIR1 		50.8mm 201mm
in stock
$96.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50.8mm
Focal length f 201mm
Edge thickness te 2.9mm
Center thickness tc 6mm
Back focal length fb 199mm
Radius of curvature r 207.6mm
Centration ＜1′
i
Biconvex Lens 6mm Diameter 12.3mm Focal Length 633 - 1064nm
SLB-06B-12PIR1 		6mm 12.3mm
6-12 weeks
$70.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ6mm
Focal length f 12.3mm
Edge thickness te 1mm
Center thickness tc 1.7mm
Back focal length fb 11.7mm
Radius of curvature r 12.46mm
Centration ＜3′
i
Biconvex Lens 12.7mm Diameter 60.4mm Focal Length 633 - 1064nm
SLB-12.7B-60PIR1 		12.7mm 60.4mm
in stock
$51.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ12.7mm
Focal length f 60.4mm
Edge thickness te 2mm
Center thickness tc 2.6mm
Back focal length fb 59.6mm
Radius of curvature r 62.28mm
i
Biconvex Lens 25mm Diameter 80.6mm Focal Length 633 - 1064nm
SLB-25B-80PIR1 		25mm 80.6mm
6-12 weeks
$71.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25mm
Focal length f 80.6mm
Edge thickness te 2mm
Center thickness tc 3.9mm
Back focal length fb 79.4mm
Radius of curvature r 83.04mm
Centration ＜1′
i
Biconvex Lens 40mm Diameter 61.4mm Focal Length 633 - 1064nm
SLB-40B-60PIR1 		40mm 61.4mm
6-12 weeks
$100.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ40mm
Focal length f 61.4mm
Edge thickness te 2mm
Center thickness tc 8.6mm
Back focal length fb 58.6mm
Radius of curvature r 62.28mm
Centration ＜1′
i
Biconvex Lens 60mm Diameter 63.2mm Focal Length 633 - 1064nm
SLB-60B-60PIR1 		60mm 63.2mm
6-12 weeks
$140.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ60mm
Focal length f 63.2mm
Edge thickness te 3mm
Center thickness tc 18.4mm
Back focal length fb 56.8mm
Radius of curvature r 62.28mm
Centration ＜1′
i
Biconvex Lens 7mm Diameter 8.6mm Focal Length 633 - 1064nm
SLB-07B-08PIR1 		7mm 8.6mm
6-12 weeks
$65.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ7mm
Focal length f 8.6mm
Edge thickness te 2mm
Center thickness tc 3.6mm
Back focal length fb 7.4mm
Radius of curvature r 8.3mm
Centration ＜3′
i
Biconvex Lens 15mm Diameter 20.8mm Focal Length 633 - 1064nm
SLB-15B-20PIR1 		15mm 20.8mm
2 weeks
$64.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ15mm
Focal length f 20.8mm
Edge thickness te 2mm
Center thickness tc 4.8mm
Back focal length fb 19.2mm
Radius of curvature r 20.76mm
Centration ＜1′
i
Biconvex Lens 25mm Diameter 150.5mm Focal Length 633 - 1064nm
SLB-25B-150PIR1 		25mm 150.5mm
6-12 weeks
$64.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25mm
Focal length f 150.5mm
Edge thickness te 2mm
Center thickness tc 3mm
Back focal length fb 149.5mm
Radius of curvature r 155.7mm
Centration ＜1′
i
Biconvex Lens 40mm Diameter 91.1mm Focal Length 633 - 1064nm
SLB-40B-90PIR1 		40mm 91.1mm
6-12 weeks
$95.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ40mm
Focal length f 91.1mm
Edge thickness te 2mm
Center thickness tc 6.3mm
Back focal length fb 88.9mm
Radius of curvature r 93.42mm
Centration ＜1′
i
Biconvex Lens 60mm Diameter 92.2mm Focal Length 633 - 1064nm
SLB-60B-90PIR1 		60mm 92.2mm
6-12 weeks
$130.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ60mm
Focal length f 92.2mm
Edge thickness te 3mm
Center thickness tc 13mm
Back focal length fb 87.8mm
Radius of curvature r 93.42mm
Centration ＜1′
i
Biconvex Lens 7mm Diameter 15.4mm Focal Length 633 - 1064nm
SLB-07B-15PIR1 		7mm 15.4mm
6-12 weeks
$65.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ7mm
Focal length f 15.4mm
Edge thickness te 1.7mm
Center thickness tc 2.5mm
Back focal length fb 14.6mm
Radius of curvature r 15.57mm
Centration ＜3′
i
Biconvex Lens 15mm Diameter 40.6mm Focal Length 633 - 1064nm
SLB-15B-40PIR1 		15mm 40.6mm
6-12 weeks
$61.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ15mm
Focal length f 40.6mm
Edge thickness te 2mm
Center thickness tc 3.4mm
Back focal length fb 39.4mm
Radius of curvature r 41.52mm
Centration ＜1′
i
Biconvex Lens 25.4mm Diameter 26.5mm Focal Length 633 - 1064nm
SLB-25.4B-25PIR1 		25.4mm 26.5mm
in stock
$84.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25.4mm
Focal length f 26.5mm
Edge thickness te 1.8mm
Center thickness tc 8.4mm
Back focal length fb 23.6mm
Radius of curvature r 25.95mm
Centration ＜1′
i
Biconvex Lens 40mm Diameter 150.8mm Focal Length 633 - 1064nm
SLB-40B-150PIR1 		40mm 150.8mm
6-12 weeks
$92.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ40mm
Focal length f 150.8mm
Edge thickness te 2mm
Center thickness tc 4.6mm
Back focal length fb 149.2mm
Radius of curvature r 155.7mm
Centration ＜1′
i
Biconvex Lens 40mm Diameter 250.6mm Focal Length 633 - 1064nm
SLB-40B-250PIR1 		40mm 250.6mm
6-12 weeks
$84.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ40mm
Focal length f 250.6mm
Edge thickness te 2mm
Center thickness tc 3.5mm
Back focal length fb 249.4mm
Radius of curvature r 259.5mm
Centration ＜1′
i
Biconvex Lens 60mm Diameter 151.5mm Focal Length 633 - 1064nm
SLB-60B-150PIR1 		60mm 151.5mm
6-12 weeks
$126.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ60mm
Focal length f 151.5mm
Edge thickness te 3mm
Center thickness tc 8.8mm
Back focal length fb 148.5mm
Radius of curvature r 155.7mm
Centration ＜1′
i
Biconvex Lens 8mm Diameter 10.5mm Focal Length 633 - 1064nm
SLB-08B-10PIR1 		8mm 10.5mm
2 weeks
$65.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ8mm
Focal length f 10.5mm
Edge thickness te 1.5mm
Center thickness tc 3.1mm
Back focal length fb 9.5mm
Radius of curvature r 10.38mm
Centration ＜3′
i
Biconvex Lens 15mm Diameter 70.5mm Focal Length 633 - 1064nm
SLB-15B-70PIR1 		15mm 70.5mm
6-12 weeks
$55.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ15mm
Focal length f 70.5mm
Edge thickness te 2mm
Center thickness tc 2.8mm
Back focal length fb 69.5mm
Radius of curvature r 72.66mm
Centration ＜1′
i
Biconvex Lens 25.4mm Diameter 41mm Focal Length 633 - 1064nm
SLB-25.4B-40PIR1 		25.4mm 41mm
in stock
$79.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25.4mm
Focal length f 41mm
Edge thickness te 1.9mm
Center thickness tc 5.9mm
Back focal length fb 39mm
Radius of curvature r 41.52mm
Centration ＜1′
i
Biconvex Lens 50mm Diameter 72mm Focal Length 633 - 1064nm
SLB-50B-70PIR1 		50mm 72mm
6-12 weeks
$110.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50mm
Focal length f 72mm
Edge thickness te 3mm
Center thickness tc 11.9mm
Back focal length fb 68mm
Radius of curvature r 72.66mm
Centration ＜1′
i
Biconvex Lens 60mm Diameter 251.1mm Focal Length 633 - 1064nm
SLB-60B-250PIR1 		60mm 251.1mm
6-12 weeks
$120.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ60mm
Focal length f 251.1mm
Edge thickness te 3mm
Center thickness tc 6.5mm
Back focal length fb 248.9mm
Radius of curvature r 259.5mm
Centration ＜1′
i
Biconvex Lens 8mm Diameter 20.4mm Focal Length 633 - 1064nm
SLB-08B-20PIR1 		8mm 20.4mm
2 weeks
$65.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ8mm
Focal length f 20.4mm
Edge thickness te 1.5mm
Center thickness tc 2.3mm
Back focal length fb 19.6mm
Radius of curvature r 20.76mm
Centration ＜3′
i
Biconvex Lens 15mm Diameter 100.4mm Focal Length 633 - 1064nm
SLB-15B-100PIR1 		15mm 100.4mm
6-12 weeks
$52.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ15mm
Focal length f 100.4mm
Edge thickness te 2mm
Center thickness tc 2.5mm
Back focal length fb 99.6mm
Radius of curvature r 103.8mm
Centration ＜1′
i
Biconvex Lens 25.4mm Diameter 70.7mm Focal Length 633 - 1064nm
SLB-25.4B-70PIR1 		25.4mm 70.7mm
in stock
$73.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25.4mm
Focal length f 70.7mm
Edge thickness te 1.9mm
Center thickness tc 4.1mm
Back focal length fb 69.3mm
Radius of curvature r 72.66mm
Centration ＜1′
i
Biconvex Lens 50mm Diameter 101.5mm Focal Length 633 - 1064nm
SLB-50B-100PIR1 		50mm 101.5mm
2 weeks
$105.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50mm
Focal length f 101.5mm
Edge thickness te 3mm
Center thickness tc 9.1mm
Back focal length fb 98.5mm
Radius of curvature r 103.8mm
Centration ＜1′
i
Biconvex Lens 80mm Diameter 152.2mm Focal Length 633 - 1064nm
SLB-80B-150PIR1 		80mm 152.2mm
6-12 weeks
$255.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ80mm
Focal length f 152.2mm
Edge thickness te 3mm
Center thickness tc 13.5mm
Back focal length fb 147.8mm
Radius of curvature r 155.7mm
Centration ＜1′
i
Biconvex Lens 10mm Diameter 15.6mm Focal Length 633 - 1064nm
SLB-10B-15PIR1 		10mm 15.6mm
6-12 weeks
$55.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ10mm
Focal length f 15.6mm
Edge thickness te 2mm
Center thickness tc 3.6mm
Back focal length fb 14.4mm
Radius of curvature r 15.57mm
Centration ＜1′
i
Biconvex Lens 20mm Diameter 31mm Focal Length 633 - 1064nm
SLB-20B-30PIR1 		20mm 31mm
6-12 weeks
$68.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ20mm
Focal length f 31mm
Edge thickness te 2mm
Center thickness tc 5.3mm
Back focal length fb 29.1mm
Radius of curvature r 31.14mm
Centration ＜1′
i
Biconvex Lens 25.4mm Diameter 150.5mm Focal Length 633 - 1064nm
SLB-25.4B-150PIR1 		25.4mm 150.5mm
in stock
$64.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25.4mm
Focal length f 150.5mm
Edge thickness te 2mm
Center thickness tc 3mm
Back focal length fb 149.5mm
Radius of curvature r 155.7mm
Centration ＜1′
i
Biconvex Lens 50mm Diameter 171.1mm Focal Length 633 - 1064nm
SLB-50B-170PIR1 		50mm 171.1mm
2 weeks
$97.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50mm
Focal length f 171.1mm
Edge thickness te 3mm
Center thickness tc 6.6mm
Back focal length fb 168.9mm
Radius of curvature r 176.46mm
Centration ＜1′
i
Biconvex Lens 80mm Diameter 301.3mm Focal Length 633 - 1064nm
SLB-80B-300PIR1 		80mm 301.3mm
6-12 weeks
$235.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ80mm
Focal length f 301.3mm
Edge thickness te 3mm
Center thickness tc 8.2mm
Back focal length fb 298.7mm
Radius of curvature r 311.4mm
Centration ＜1′
i
Biconvex Lens 10mm Diameter 30.5mm Focal Length 633 - 1064nm
SLB-10B-30PIR1 		10mm 30.5mm
6-12 weeks
$53.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ10mm
Focal length f 30.5mm
Edge thickness te 2mm
Center thickness tc 2.8mm
Back focal length fb 29.5mm
Radius of curvature r 31.14mm
Centration ＜1′
i
Biconvex Lens 20mm Diameter 60.6mm Focal Length 633 - 1064nm
SLB-20B-60PIR1 		20mm 60.6mm
6-12 weeks
$64.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ20mm
Focal length f 60.6mm
Edge thickness te 2mm
Center thickness tc 3.6mm
Back focal length fb 59.4mm
Radius of curvature r 62.28mm
Centration ＜1′
i
Biconvex Lens 30mm Diameter 36.5mm Focal Length 633 - 1064nm
SLB-30B-35PIR1 		30mm 36.5mm
6-12 weeks
$90.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ30mm
Focal length f 36.5mm
Edge thickness te 2mm
Center thickness tc 8.5mm
Back focal length fb 33.5mm
Radius of curvature r 36.33mm
Centration ＜1′
i
Biconvex Lens 50mm Diameter 251mm Focal Length 633 - 1064nm
SLB-50B-250PIR1 		50mm 251mm
6-12 weeks
$95.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50mm
Focal length f 251mm
Edge thickness te 3mm
Center thickness tc 5.4mm
Back focal length fb 249.1mm
Radius of curvature r 259.5mm
Centration ＜1′
i
Biconvex Lens 80mm Diameter 700.9mm Focal Length 633 - 1064nm
SLB-80B-700PIR1 		80mm 700.9mm
6-12 weeks
$230.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ80mm
Focal length f 700.9mm
Edge thickness te 3mm
Center thickness tc 5.2mm
Back focal length fb 699.1mm
Radius of curvature r 726.6mm
Centration ＜1′
i
Biconvex Lens 10mm Diameter 60.4mm Focal Length 633 - 1064nm
SLB-10B-60PIR1 		10mm 60.4mm
6-12 weeks
$51.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ10mm
Focal length f 60.4mm
Edge thickness te 2mm
Center thickness tc 2.4mm
Back focal length fb 59.6mm
Radius of curvature r 62.28mm
Centration ＜1′
i
Biconvex Lens 20mm Diameter 90.5mm Focal Length 633 - 1064nm
SLB-20B-90PIR1 		20mm 90.5mm
2 weeks
$62.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ20mm
Focal length f 90.5mm
Edge thickness te 2mm
Center thickness tc 3.1mm
Back focal length fb 89.5mm
Radius of curvature r 93.42mm
Centration ＜1′
i
Biconvex Lens 30mm Diameter 60.9mm Focal Length 633 - 1064nm
SLB-30B-60PIR1 		30mm 60.9mm
2 weeks
$80.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ30mm
Focal length f 60.9mm
Edge thickness te 2mm
Center thickness tc 5.7mm
Back focal length fb 59.1mm
Radius of curvature r 62.28mm
Centration ＜1′
i
Biconvex Lens 50.8mm Diameter 62.3mm Focal Length 633 - 1064nm
SLB-50.8B-60PIR1 		50.8mm 62.3mm
in stock
$115.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50.8mm
Focal length f 62.3mm
Edge thickness te 3mm
Center thickness tc 13.8mm
Back focal length fb 57.7mm
Radius of curvature r 62.28mm
Centration ＜1′
i
Biconvex Lens 100mm Diameter 202.5mm Focal Length 633 - 1064nm
SLB-100B-200PIR1 		100mm 202.5mm
6-12 weeks
$329.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ100mm
Focal length f 202.5mm
Edge thickness te 3mm
Center thickness tc 15.2mm
Back focal length fb 197.5mm
Radius of curvature r 207.6mm
Centration ＜1′
i
Biconvex Lens 5mm Diameter 10.3mm Focal Length 633 - 1064nm
SLB-05B-10PIR1 		5mm 10.3mm
6-12 weeks
$75.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ5mm
Focal length f 10.3mm
Edge thickness te 1.3mm
Center thickness tc 1.9mm
Back focal length fb 9.7mm
Radius of curvature r 10.38mm
Centration ＜3′
i
Biconvex Lens 10mm Diameter 90.4mm Focal Length 633 - 1064nm
SLB-10B-90PIR1 		10mm 90.4mm
6-12 weeks
$51.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ10mm
Focal length f 90.4mm
Edge thickness te 2mm
Center thickness tc 2.3mm
Back focal length fb 89.6mm
Radius of curvature r 93.42mm
Centration ＜1′
i
Biconvex Lens 20mm Diameter 150.4mm Focal Length 633 - 1064nm
SLB-20B-150PIR1 		20mm 150.4mm
6-12 weeks
$58.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ20mm
Focal length f 150.4mm
Edge thickness te 2mm
Center thickness tc 2.6mm
Back focal length fb 149.6mm
Radius of curvature r 155.7mm
Centration ＜1′
i
Biconvex Lens 30mm Diameter 100.7mm Focal Length 633 - 1064nm
SLB-30B-100PIR1 		30mm 100.7mm
6-12 weeks
$70.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ30mm
Focal length f 100.7mm
Edge thickness te 2mm
Center thickness tc 4.2mm
Back focal length fb 99.3mm
Radius of curvature r 103.8mm
Centration ＜1′
i
Biconvex Lens 50.8mm Diameter 91.6mm Focal Length 633 - 1064nm
SLB-50.8B-90PIR1 		50.8mm 91.6mm
in stock
$107.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50.8mm
Focal length f 91.6mm
Edge thickness te 2.8mm
Center thickness tc 9.8mm
Back focal length fb 88.3mm
Radius of curvature r 93.42mm
Centration ＜1′
i
Biconvex Lens 100mm Diameter 401.5mm Focal Length 633 - 1064nm
SLB-100B-400PIR1 		100mm 401.5mm
6-12 weeks
$299.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ100mm
Focal length f 401.5mm
Edge thickness te 3mm
Center thickness tc 9mm
Back focal length fb 398.5mm
Radius of curvature r 415.2mm
Centration ＜1′
i
Biconvex Lens 5mm Diameter 20.2mm Focal Length 633 - 1064nm
SLB-05B-20PIR1 		5mm 20.2mm
6-12 weeks
$70.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ5mm
Focal length f 20.2mm
Edge thickness te 1.1mm
Center thickness tc 1.4mm
Back focal length fb 19.8mm
Radius of curvature r 20.76mm
Centration ＜3′
i
Biconvex Lens 12.7mm Diameter 20.7mm Focal Length 633 - 1064nm
SLB-12.7B-20PIR1 		12.7mm 20.7mm
6-12 weeks
$54.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ12.7mm
Focal length f 20.7mm
Edge thickness te 2mm
Center thickness tc 4mm
Back focal length fb 19.3mm
Radius of curvature r 20.76mm
Centration ＜1′
i
Biconvex Lens 25mm Diameter 36.1mm Focal Length 633 - 1064nm
SLB-25B-35PIR1 		25mm 36.1mm
6-12 weeks
$81.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25mm
Focal length f 36.1mm
Edge thickness te 2mm
Center thickness tc 6.4mm
Back focal length fb 33.9mm
Radius of curvature r 36.33mm
Centration ＜1′
i
Biconvex Lens 30mm Diameter 170.5mm Focal Length 633 - 1064nm
SLB-30B-170PIR1 		30mm 170.5mm
6-12 weeks
$70.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ30mm
Focal length f 170.5mm
Edge thickness te 2mm
Center thickness tc 3.3mm
Back focal length fb 169.5mm
Radius of curvature r 176.46mm
Centration ＜1′
i
Biconvex Lens 50.8mm Diameter 151.2mm Focal Length 633 - 1064nm
SLB-50.8B-150PIR1 		50.8mm 151.2mm
in stock
$99.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50.8mm
Focal length f 151.2mm
Edge thickness te 2.8mm
Center thickness tc 7mm
Back focal length fb 148.9mm
Radius of curvature r 155.7mm
Centration ＜1′
i
Biconvex Lens 100mm Diameter 1001mm Focal Length 633 - 1064nm
SLB-100B-1000PIR1 		100mm 1001mm
6-12 weeks
$299.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ100mm
Focal length f 1001mm
Edge thickness te 3mm
Center thickness tc 5.4mm
Back focal length fb 999.1mm
Radius of curvature r 1038mm
Centration ＜1′
i
Biconvex Lens 6mm Diameter 8.4mm Focal Length 633 - 1064nm
SLB-06B-08PIR1 		6mm 8.4mm
6-12 weeks
$70.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ6mm
Focal length f 8.4mm
Edge thickness te 1mm
Center thickness tc 2.1mm
Back focal length fb 7.6mm
Radius of curvature r 8.3mm
Centration ＜3′
i
Biconvex Lens 12.7mm Diameter 40.5mm Focal Length 633 - 1064nm
SLB-12.7B-40PIR1 		12.7mm 40.5mm
in stock
$51.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ12.7mm
Focal length f 40.5mm
Edge thickness te 2mm
Center thickness tc 3mm
Back focal length fb 39.5mm
Radius of curvature r 41.52mm
Centration ＜1′
i
Biconvex Lens 25mm Diameter 60.8mm Focal Length 633 - 1064nm
SLB-25B-60PIR1 		25mm 60.8mm
6-12 weeks
$75.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25mm
Focal length f 60.8mm
Edge thickness te 2mm
Center thickness tc 4.5mm
Back focal length fb 59.2mm
Radius of curvature r 62.28mm
Centration ＜1′
i
Biconvex Lens 40mm Diameter 42.1mm Focal Length 633 - 1064nm
SLB-40B-40PIR1 		40mm 42.1mm
6-12 weeks
$109.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ40mm
Focal length f 42.1mm
Edge thickness te 2mm
Center thickness tc 12.3mm
Back focal length fb 37.9mm
Radius of curvature r 41.52mm
Centration ＜1′
i
Biconvex Lens 50.8mm Diameter 251mm Focal Length 633 - 1064nm
SLB-50.8B-250PIR1 		50.8mm 251mm
in stock
$95.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50.8mm
Focal length f 251mm
Edge thickness te 2.9mm
Center thickness tc 5.4mm
Back focal length fb 249.1mm
Radius of curvature r 259.5mm
Centration ＜1′
i
Biconvex Lens 6mm Diameter 15.3mm Focal Length 633 - 1064nm
SLB-06B-15PIR1 		6mm 15.3mm
2 weeks
$70.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ6mm
Focal length f 15.3mm
Edge thickness te 1mm
Center thickness tc 1.6mm
Back focal length fb 14.7mm
Radius of curvature r 15.57mm
Centration ＜3′
i
Biconvex Lens 12.7mm Diameter 70.4mm Focal Length 633 - 1064nm
SLB-12.7B-70PIR1 		12.7mm 70.4mm
in stock
$51.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Availability Please contact
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ12.7mm
Focal length f 70.4mm
Edge thickness te 2mm
Center thickness tc 2.6mm
Back focal length fb 69.6mm
Radius of curvature r 72.66mm
Centration ＜1′
i
Biconcave Lens 25mm Diameter 90.6mm Focal Length 633 - 1064nm
SLB-25B-90PIR1 		25mm 90.6mm
in stock
$69.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25mm
Focal length f 90.6mm
Edge thickness te 2mm
Center thickness tc 3.7mm
Back focal length fb 89.4mm
Radius of curvature r 93.42mm
Centration ＜1′
i
Biconvex Lens 40mm Diameter 71.3mm Focal Length 633 - 1064nm
SLB-40B-70PIR1 		40mm 71.3mm
6-12 weeks
$97.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ40mm
Focal length f 71.3mm
Edge thickness te 2mm
Center thickness tc 7.6mm
Back focal length fb 68.7mm
Radius of curvature r 72.66mm
Centration ＜1′
i
Biconvex Lens 60mm Diameter 72.7mm Focal Length 633 - 1064nm
SLB-60B-70PIR1 		60mm 72.7mm
6-12 weeks
$130.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ60mm
Focal length f 72.7mm
Edge thickness te 3mm
Center thickness tc 16mm
Back focal length fb 67.3mm
Radius of curvature r 72.66mm
Centration ＜1′
i
Biconvex Lens 7mm Diameter 10.5mm Focal Length 633 - 1064nm
SLB-07B-10PIR1 		7mm 10.5mm
6-12 weeks
$65.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ7mm
Focal length f 10.5mm
Edge thickness te 1.9mm
Center thickness tc 3.1mm
Back focal length fb 9.5mm
Radius of curvature r 10.38mm
Centration ＜3′
i
Biconvex Lens 15mm Diameter 25.7mm Focal Length 633 - 1064nm
SLB-15B-25PIR1 		15mm 25.7mm
6-12 weeks
$63.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ15mm
Focal length f 25.7mm
Edge thickness te 2mm
Center thickness tc 4.2mm
Back focal length fb 24.3mm
Radius of curvature r 25.95mm
Centration ＜1′
i
Biconvex Lens 25mm Diameter 170.5mm Focal Length 633 - 1064nm
SLB-25B-170PIR1 		25mm 170.5mm
2 weeks
$64.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25mm
Focal length f 170.5mm
Edge thickness te 2mm
Center thickness tc 2.9mm
Back focal length fb 169.5mm
Radius of curvature r 176.46mm
Centration ＜1′
i
Biconvex Lens 40mm Diameter 101mm Focal Length 633 - 1064nm
SLB-40B-100PIR1 		40mm 101mm
6-12 weeks
$95.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ40mm
Focal length f 101mm
Edge thickness te 2mm
Center thickness tc 5.9mm
Back focal length fb 99mm
Radius of curvature r 103.8mm
Centration ＜1′
i
Biconvex Lens 60mm Diameter 102mm Focal Length 633 - 1064nm
SLB-60B-100PIR1 		60mm 102mm
6-12 weeks
$128.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ60mm
Focal length f 102mm
Edge thickness te 3mm
Center thickness tc 11.9mm
Back focal length fb 98mm
Radius of curvature r 103.8mm
Centration ＜1′
i
Biconvex Lens 7mm Diameter 20.4mm Focal Length 633 - 1064nm
SLB-07B-20PIR1 		7mm 20.4mm
6-12 weeks
$65.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ7mm
Focal length f 20.4mm
Edge thickness te 1.7mm
Center thickness tc 2.3mm
Back focal length fb 19.6mm
Radius of curvature r 20.76mm
Centration ＜3′
i
Biconvex Lens 15mm Diameter 50.5mm Focal Length 633 - 1064nm
SLB-15B-50PIR1 		15mm 50.5mm
6-12 weeks
$60.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ15mm
Focal length f 50.5mm
Edge thickness te 2mm
Center thickness tc 3.1mm
Back focal length fb 49.5mm
Radius of curvature r 51.9mm
Centration ＜1′
i
Biconvex Lens 25.4mm Diameter 31.2mm Focal Length 633 - 1064nm
SLB-25.4B-30PIR1 		25.4mm 31.2mm
in stock
$83.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25.4mm
Focal length f 31.2mm
Edge thickness te 1.8mm
Center thickness tc 7.2mm
Back focal length fb 28.7mm
Radius of curvature r 31.14mm
Centration ＜1′
i
Biconvex Lens 40mm Diameter 170.7mm Focal Length 633 - 1064nm
SLB-40B-170PIR1 		40mm 170.7mm
6-12 weeks
$89.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ40mm
Focal length f 170.7mm
Edge thickness te 2mm
Center thickness tc 4.3mm
Back focal length fb 169.3mm
Radius of curvature r 176.46mm
Centration ＜1′
i
Biconvex Lens 50mm Diameter 52.7mm Focal Length 633 - 1064nm
SLB-50B-50PIR1 		50mm 52.7mm
6-12 weeks
$120.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50mm
Focal length f 52.7mm
Edge thickness te 3mm
Center thickness tc 15.8mm
Back focal length fb 47.3mm
Radius of curvature r 51.9mm
Centration ＜1′
i
Biconvex Lens 60mm Diameter 171.4mm Focal Length 633 - 1064nm
SLB-60B-170PIR1 		60mm 171.4mm
6-12 weeks
$125.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ60mm
Focal length f 171.4mm
Edge thickness te 3mm
Center thickness tc 8.1mm
Back focal length fb 168.7mm
Radius of curvature r 176.46mm
Centration ＜1′
i
Biconvex Lens 8mm Diameter 12.5mm Focal Length 633 - 1064nm
SLB-08B-12PIR1 		8mm 12.5mm
2 weeks
$65.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ8mm
Focal length f 12.5mm
Edge thickness te 1.5mm
Center thickness tc 2.8mm
Back focal length fb 11.5mm
Radius of curvature r 12.46mm
Centration ＜3′
i
Biconvex Lens 15mm Diameter 80.4mm Focal Length 633 - 1064nm
SLB-15B-80PIR1 		15mm 80.4mm
6-12 weeks
$52.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ15mm
Focal length f 80.4mm
Edge thickness te 2mm
Center thickness tc 2.7mm
Back focal length fb 79.6mm
Radius of curvature r 83.04mm
Centration ＜1′
i
Biconvex Lens 25.4mm Diameter 50.8mm Focal Length 633 - 1064nm
SLB-25.4B-50PIR1 		25.4mm 50.8mm
in stock
$78.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25.4mm
Focal length f 50.8mm
Edge thickness te 1.9mm
Center thickness tc 5.1mm
Back focal length fb 49.2mm
Radius of curvature r 51.9mm
Centration ＜1′
i
Biconvex Lens 50mm Diameter 81.8mm Focal Length 633 - 1064nm
SLB-50B-80PIR1 		50mm 81.8mm
6-12 weeks
$107.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50mm
Focal length f 81.8mm
Edge thickness te 3mm
Center thickness tc 10.7mm
Back focal length fb 78.2mm
Radius of curvature r 83.04mm
Centration ＜1′
i
Biconvex Lens 60mm Diameter 301mm Focal Length 633 - 1064nm
SLB-60B-300PIR1 		60mm 301mm
6-12 weeks
$120.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ60mm
Focal length f 301mm
Edge thickness te 3mm
Center thickness tc 5.9mm
Back focal length fb 299mm
Radius of curvature r 311.4mm
Centration ＜1′
i
Biconvex Lens 8mm Diameter 25.4mm Focal Length 633 - 1064nm
SLB-08B-25PIR1 		8mm 25.4mm
6-12 weeks
$65.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ8mm
Focal length f 25.4mm
Edge thickness te 1.5mm
Center thickness tc 2.1mm
Back focal length fb 24.6mm
Radius of curvature r 25.95mm
Centration ＜3′
i
Biconvex Lens 20mm Diameter 21.2mm Focal Length 633 - 1064nm
SLB-20B-20PIR1 		20mm 21.2mm
6-12 weeks
$75.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ20mm
Focal length f 21.2mm
Edge thickness te 2mm
Center thickness tc 7.1mm
Back focal length fb 18.8mm
Radius of curvature r 20.76mm
Centration ＜1′
i
Biconvex Lens 25.4mm Diameter 80.6mm Focal Length 633 - 1064nm
SLB-25.4B-80PIR1 		25.4mm 80.6mm
in stock
$71.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25.4mm
Focal length f 80.6mm
Edge thickness te 1.9mm
Center thickness tc 3.9mm
Back focal length fb 79.3mm
Radius of curvature r 83.04mm
Centration ＜1′
i
Biconvex Lens 50mm Diameter 121.3mm Focal Length 633 - 1064nm
SLB-50B-120PIR1 		50mm 121.3mm
6-12 weeks
$103.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50mm
Focal length f 121.3mm
Edge thickness te 3mm
Center thickness tc 8mm
Back focal length fb 118.7mm
Radius of curvature r 124.56mm
Centration ＜1′
i
Biconvex Lens 80mm Diameter 201.8mm Focal Length 633 - 1064nm
SLB-80B-200PIR1 		80mm 201.8mm
6-12 weeks
$250.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ80mm
Focal length f 201.8mm
Edge thickness te 3mm
Center thickness tc 10.8mm
Back focal length fb 198.2mm
Radius of curvature r 207.6mm
Centration ＜1′
i
Biconvex Lens 10mm Diameter 20.5mm Focal Length 633 - 1064nm
SLB-10B-20PIR1 		10mm 20.5mm
2 weeks
$54.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ10mm
Focal length f 20.5mm
Edge thickness te 2mm
Center thickness tc 3.2mm
Back focal length fb 19.5mm
Radius of curvature r 20.76mm
Centration ＜1′
i
Biconvex Lens 20mm Diameter 40.7mm Focal Length 633 - 1064nm
SLB-20B-40PIR1 		20mm 40.7mm
6-12 weeks
$64.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ20mm
Focal length f 40.7mm
Edge thickness te 2mm
Center thickness tc 4.4mm
Back focal length fb 39.3mm
Radius of curvature r 41.52mm
Centration ＜1′
i
Biconvex Lens 25.4mm Diameter 200.5mm Focal Length 633 - 1064nm
SLB-25.4B-200PIR1 		25.4mm 200.5mm
in stock
$64.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25.4mm
Focal length f 200.5mm
Edge thickness te 2mm
Center thickness tc 2.8mm
Back focal length fb 199.6mm
Radius of curvature r 207.6mm
Centration ＜1′
i
Biconvex Lens 50mm Diameter 201mm Focal Length 633 - 1064nm
SLB-50B-200PIR1 		50mm 201mm
6-12 weeks
$96.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50mm
Focal length f 201mm
Edge thickness te 3mm
Center thickness tc 6mm
Back focal length fb 199mm
Radius of curvature r 207.6mm
Centration ＜1′
i
Biconvex Lens 80mm Diameter 401.1mm Focal Length 633 - 1064nm
SLB-80B-400PIR1 		80mm 401.1mm
6-12 weeks
$230.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ80mm
Focal length f 401.1mm
Edge thickness te 3mm
Center thickness tc 6.9mm
Back focal length fb 398.9mm
Radius of curvature r 415.2mm
Centration ＜1′
i
Biconvex Lens 10mm Diameter 40.4mm Focal Length 633 - 1064nm
SLB-10B-40PIR1 		10mm 40.4mm
6-12 weeks
$52.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ10mm
Focal length f 40.4mm
Edge thickness te 2mm
Center thickness tc 2.6mm
Back focal length fb 39.6mm
Radius of curvature r 41.52mm
Centration ＜1′
i
Biconvex Lens 20mm Diameter 70.6mm Focal Length 633 - 1064nm
SLB-20B-70PIR1 		20mm 70.6mm
6-12 weeks
$63.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ20mm
Focal length f 70.6mm
Edge thickness te 2mm
Center thickness tc 3.4mm
Back focal length fb 69.4mm
Radius of curvature r 72.66mm
Centration ＜1′
i
Biconvex Lens 30mm Diameter 41.3mm Focal Length 633 - 1064nm
SLB-30B-40PIR1 		30mm 41.3mm
6-12 weeks
$88.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ30mm
Focal length f 41.3mm
Edge thickness te 2mm
Center thickness tc 7.6mm
Back focal length fb 38.7mm
Radius of curvature r 41.52mm
Centration ＜1′
i
Biconvex Lens 50mm Diameter 300.8mm Focal Length 633 - 1064nm
SLB-50B-300PIR1 		50mm 300.8mm
6-12 weeks
$95.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50mm
Focal length f 300.8mm
Edge thickness te 3mm
Center thickness tc 5mm
Back focal length fb 299.2mm
Radius of curvature r 311.4mm
Centration ＜1′
i
Biconvex Lens 80mm Diameter 1000.7mm Focal Length 633 - 1064nm
SLB-80B-1000PIR1 		80mm 1000.7mm
6-12 weeks
$230.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ80mm
Focal length f 1000.7mm
Edge thickness te 3mm
Center thickness tc 4.5mm
Back focal length fb 999.3mm
Radius of curvature r 1038mm
Centration ＜1′
i
Biconvex Lens 5mm Diameter 6.4mm Focal Length 633 - 1064nm
SLB-05B-06PIR1 		5mm 6.4mm
6-12 weeks
$75.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ5mm
Focal length f 6.4mm
Edge thickness te 1.5mm
Center thickness tc 2.5mm
Back focal length fb 5.6mm
Radius of curvature r 6.23mm
Centration ＜3′
i
Biconvex Lens 10mm Diameter 70.4mm Focal Length 633 - 1064nm
SLB-10B-70PIR1 		10mm 70.4mm
6-12 weeks
$51.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ10mm
Focal length f 70.4mm
Edge thickness te 2mm
Center thickness tc 2.3mm
Back focal length fb 69.6mm
Radius of curvature r 72.66mm
Centration ＜1′
i
Biconvex Lens 20mm Diameter 100.5mm Focal Length 633 - 1064nm
SLB-20B-100PIR1 		20mm 100.5mm
6-12 weeks
$60.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ20mm
Focal length f 100.5mm
Edge thickness te 2mm
Center thickness tc 3mm
Back focal length fb 99.5mm
Radius of curvature r 103.8mm
Centration ＜1′
i
Biconvex Lens 30mm Diameter 70.9mm Focal Length 633 - 1064nm
SLB-30B-70PIR1 		30mm 70.9mm
6-12 weeks
$76.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ30mm
Focal length f 70.9mm
Edge thickness te 2mm
Center thickness tc 5.1mm
Back focal length fb 69.1mm
Radius of curvature r 72.66mm
Centration ＜1′
i
Biconvex Lens 50.8mm Diameter 72mm Focal Length 633 - 1064nm
SLB-50.8B-70PIR1 		50.8mm 72mm
in stock
$110.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50.8mm
Focal length f 72mm
Edge thickness te 3mm
Center thickness tc 12.2mm
Back focal length fb 68mm
Radius of curvature r 72.66mm
Centration ＜1′
i
Biconvex Lens 100mm Diameter 252.1mm Focal Length 633 - 1064nm
SLB-100B-250PIR1 		100mm 252.1mm
6-12 weeks
$319.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ100mm
Focal length f 252.1mm
Edge thickness te 3mm
Center thickness tc 12.7mm
Back focal length fb 247.9mm
Radius of curvature r 259.5mm
Centration ＜1′
i
Biconvex Lens 5mm Diameter 12.3mm Focal Length 633 - 1064nm
SLB-05B-12PIR1 		5mm 12.3mm
6-12 weeks
$75.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ5mm
Focal length f 12.3mm
Edge thickness te 1.2mm
Center thickness tc 1.7mm
Back focal length fb 11.7mm
Radius of curvature r 12.46mm
Centration ＜3′
i
Biconvex Lens 10mm Diameter 100.4mm Focal Length 633 - 1064nm
SLB-10B-100PIR1 		10mm 100.4mm
6-12 weeks
$51.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ10mm
Focal length f 100.4mm
Edge thickness te 2mm
Center thickness tc 2.2mm
Back focal length fb 99.6mm
Radius of curvature r 103.8mm
Centration ＜1′
i
Biconvex Lens 25mm Diameter 26.5mm Focal Length 633 - 1064nm
SLB-25B-25PIR1 		25mm 26.5mm
6-12 weeks
$84.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25mm
Focal length f 26.5mm
Edge thickness te 2mm
Center thickness tc 8.4mm
Back focal length fb 23.5mm
Radius of curvature r 25.95mm
Centration ＜1′
i
Biconvex Lens 30mm Diameter 120.6mm Focal Length 633 - 1064nm
SLB-30B-120PIR1 		30mm 120.6mm
6-12 weeks
$70.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ30mm
Focal length f 120.6mm
Edge thickness te 2mm
Center thickness tc 3.8mm
Back focal length fb 119.4mm
Radius of curvature r 124.56mm
Centration ＜1′
i
Biconvex Lens 50.8mm Diameter 101.5mm Focal Length 633 - 1064nm
SLB-50.8B-100PIR1 		50.8mm 101.5mm
in stock
$105.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50.8mm
Focal length f 101.5mm
Edge thickness te 3mm
Center thickness tc 9.3mm
Back focal length fb 98.5mm
Radius of curvature r 103.8mm
Centration ＜1′
i
Biconvex Lens 100mm Diameter 501.3mm Focal Length 633 - 1064nm
SLB-100B-500PIR1 		100mm 501.3mm
6-12 weeks
$299.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ100mm
Focal length f 501.3mm
Edge thickness te 3mm
Center thickness tc 7.8mm
Back focal length fb 498.7mm
Radius of curvature r 519mm
Centration ＜1′
i
Biconvex Lens 5mm Diameter 25.2mm Focal Length 633 - 1064nm
SLB-05B-25PIR1 		5mm 25.2mm
6-12 weeks
$70.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ5mm
Focal length f 25.2mm
Edge thickness te 1.1mm
Center thickness tc 1.3mm
Back focal length fb 24.8mm
Radius of curvature r 25.95mm
Centration ＜3′
i
Biconvex Lens 12.7mm Diameter 25.6mm Focal Length 633 - 1064nm
SLB-12.7B-25PIR1 		12.7mm 25.6mm
6-12 weeks
$55.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ12.7mm
Focal length f 25.6mm
Edge thickness te 2mm
Center thickness tc 3.6mm
Back focal length fb 24.4mm
Radius of curvature r 25.95mm
Centration ＜1′
i
Biconvex Lens 25mm Diameter 41mm Focal Length 633 - 1064nm
SLB-25B-40PIR1 		25mm 41mm
6-12 weeks
$79.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25mm
Focal length f 41mm
Edge thickness te 2mm
Center thickness tc 5.9mm
Back focal length fb 39mm
Radius of curvature r 41.52mm
Centration ＜1′
i
Biconvex Lens 30mm Diameter 200.5mm Focal Length 633 - 1064nm
SLB-30B-200PIR1 		30mm 200.5mm
in stock
$70.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ30mm
Focal length f 200.5mm
Edge thickness te 2mm
Center thickness tc 3.1mm
Back focal length fb 199.5mm
Radius of curvature r 207.6mm
Centration ＜1′
i
Biconvex Lens 50.8mm Diameter 171.1mm Focal Length 633 - 1064nm
SLB-50.8B-170PIR1 		50.8mm 171.1mm
in stock
$97.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50.8mm
Focal length f 171.1mm
Edge thickness te 2.4mm
Center thickness tc 6.1mm
Back focal length fb 169mm
Radius of curvature r 176.46mm
Centration ＜1′
i
Biconvex Lens 6mm Diameter 10.3mm Focal Length 633 - 1064nm
SLB-06B-10PIR1 		6mm 10.3mm
6-12 weeks
$70.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ6mm
Focal length f 10.3mm
Edge thickness te 1mm
Center thickness tc 1.9mm
Back focal length fb 9.7mm
Radius of curvature r 10.38mm
Centration ＜3′
i
Biconvex Lens 12.7mm Diameter 50.5mm Focal Length 633 - 1064nm
SLB-12.7B-50PIR1 		12.7mm 50.5mm
in stock
$51.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ12.7mm
Focal length f 50.5mm
Edge thickness te 2mm
Center thickness tc 2.8mm
Back focal length fb 49.5mm
Radius of curvature r 51.90mm
Centration ＜1′
i
Biconvex Lens 25mm Diameter 70.7mm Focal Length 633 - 1064nm
SLB-25B-70PIR1 		25mm 70.7mm
6-12 weeks
$73.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25mm
Focal length f 70.7mm
Edge thickness te 2mm
Center thickness tc 4.1mm
Back focal length fb 69.3mm
Radius of curvature r 72.66mm
Centration ＜1′
i
Biconvex Lens 40mm Diameter 51.7mm Focal Length 633 - 1064nm
SLB-40B-50PIR1 		40mm 51.7mm
6-12 weeks
$102.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ40mm
Focal length f 51.7mm
Edge thickness te 2mm
Center thickness tc 10mm
Back focal length fb 48.3mm
Radius of curvature r 51.9mm
Centration ＜1′
i
Biconvex Lens 50.8mm Diameter 300.8mm Focal Length 633 - 1064nm
SLB-50.8B-300PIR1 		50.8mm 300.8mm
in stock
$95.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50.8mm
Focal length f 300.8mm
Edge thickness te 2.9mm
Center thickness tc 5mm
Back focal length fb 299.1mm
Radius of curvature r 311.4mm
Centration ＜1′
i
Biconvex Lens 6mm Diameter 20.2mm Focal Length 633 - 1064nm
SLB-06B-20PIR1 		6mm 20.2mm
6-12 weeks
$65.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ6mm
Focal length f 20.2mm
Edge thickness te 1mm
Center thickness tc 1.4mm
Back focal length fb 19.8mm
Radius of curvature r 20.76mm
Centration ＜3′
i
Biconvex Lens 15mm Diameter 16mm Focal Length 633 - 1064nm
SLB-15B-15PIR1 		15mm 16mm
2 weeks
$68.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ15mm
Focal length f 16mm
Edge thickness te 2mm
Center thickness tc 5.9mm
Back focal length fb 14mm
Radius of curvature r 15.57mm
Centration ＜1′
i
Biconvex Lens 25mm Diameter 100.6mm Focal Length 633 - 1064nm
SLB-25B-100PIR1 		25mm 100.6mm
6-12 weeks
$67.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25mm
Focal length f 100.6mm
Edge thickness te 2mm
Center thickness tc 3.5mm
Back focal length fb 99.4mm
Radius of curvature r 103.8mm
Centration ＜1′
i
Biconvex Lens 40mm Diameter 81.2mm Focal Length 633 - 1064nm
SLB-40B-80PIR1 		40mm 81.2mm
2 weeks
$96.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ40mm
Focal length f 81.2mm
Edge thickness te 2mm
Center thickness tc 6.9mm
Back focal length fb 78.8mm
Radius of curvature r 83.04mm
Centration ＜1′
i
Biconvex Lens 60mm Diameter 82.4mm Focal Length 633 - 1064nm
SLB-60B-80PIR1 		60mm 82.4mm
6-12 weeks
$130.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ60mm
Focal length f 82.4mm
Edge thickness te 3mm
Center thickness tc 14.2mm
Back focal length fb 77.6mm
Radius of curvature r 83.04mm
Centration ＜1′
i
Biconvex Lens 7mm Diameter 12.5mm Focal Length 633 - 1064nm
SLB-07B-12PIR1 		7mm 12.5mm
6-12 weeks
$65.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ7mm
Focal length f 12.5mm
Edge thickness te 1.8mm
Center thickness tc 2.8mm
Back focal length fb 11.5mm
Radius of curvature r 12.46mm
Centration ＜3′
i
Biconvex Lens 15mm Diameter 30.6mm Focal Length 633 - 1064nm
SLB-15B-30PIR1 		15mm 30.6mm
6-12 weeks
$62.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ15mm
Focal length f 30.6mm
Edge thickness te 2mm
Center thickness tc 3.8mm
Back focal length fb 29.4mm
Radius of curvature r 31.14mm
Centration ＜1′
i
Biconvex Lens 25mm Diameter 200.5mm Focal Length 633 - 1064nm
SLB-25B-200PIR1 		25mm 200.5mm
6-12 weeks
$64.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25mm
Focal length f 200.5mm
Edge thickness te 2mm
Center thickness tc 2.8mm
Back focal length fb 199.5mm
Radius of curvature r 207.6mm
Centration ＜1′
i
Biconvex Lens 40mm Diameter 120.9mm Focal Length 633 - 1064nm
SLB-40B-120PIR1 		40mm 120.9mm
6-12 weeks
$93.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ40mm
Focal length f 120.9mm
Edge thickness te 2mm
Center thickness tc 5.2mm
Back focal length fb 119.1mm
Radius of curvature r 124.56mm
Centration ＜1′
i
Biconvex Lens 60mm Diameter 121.7mm Focal Length 633 - 1064nm
SLB-60B-120PIR1 		60mm 121.7mm
6-12 weeks
$128.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ60mm
Focal length f 121.7mm
Edge thickness te 3mm
Center thickness tc 10.3mm
Back focal length fb 118.3mm
Radius of curvature r 124.56mm
Centration ＜1′
i
Biconvex Lens 8mm Diameter 8.6mm Focal Length 633 - 1064nm
SLB-08B-08PIR1 		8mm 8.6mm
6-12 weeks
$65.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ8mm
Focal length f 8.6mm
Edge thickness te 1.5mm
Center thickness tc 3.6mm
Back focal length fb 7.4mm
Radius of curvature r 8.3mm
Centration ＜3′
i
Biconvex Lens 15mm Diameter 60.5mm Focal Length 633 - 1064nm
SLB-15B-60PIR1 		15mm 60.5mm
2 weeks
$58.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ15mm
Focal length f 60.5mm
Edge thickness te 2mm
Center thickness tc 2.9mm
Back focal length fb 59.5mm
Radius of curvature r 62.28mm
Centration ＜1′
i
Biconvex Lens 25.4mm Diameter 36.1mm Focal Length 633 - 1064nm
SLB-25.4B-35PIR1 		25.4mm 36.1mm
in stock
$81.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25.4mm
Focal length f 36.1mm
Edge thickness te 1.8mm
Center thickness tc 6.4mm
Back focal length fb 33.9mm
Radius of curvature r 36.33mm
Centration ＜1′
i
Biconvex Lens 40mm Diameter 200.6mm Focal Length 633 - 1064nm
SLB-40B-200PIR1 		40mm 200.6mm
6-12 weeks
$84.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ40mm
Focal length f 200.6mm
Edge thickness te 2mm
Center thickness tc 3.9mm
Back focal length fb 199.4mm
Radius of curvature r 207.6mm
Centration ＜1′
i
Biconvex Lens 50mm Diameter 62.3mm Focal Length 633 - 1064nm
SLB-50B-60PIR1 		50mm 62.3mm
6-12 weeks
$115.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50mm
Focal length f 62.3mm
Edge thickness te 3mm
Center thickness tc 13.5mm
Back focal length fb 57.7mm
Radius of curvature r 62.28mm
Centration ＜1′
i
Biconvex Lens 60mm Diameter 201.2mm Focal Length 633 - 1064nm
SLB-60B-200PIR1 		60mm 201.2mm
6-12 weeks
$123.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ60mm
Focal length f 201.2mm
Edge thickness te 3mm
Center thickness tc 7.4mm
Back focal length fb 198.8mm
Radius of curvature r 207.6mm
Centration ＜1′
i
Biconvex Lens 8mm Diameter 15.4mm Focal Length 633 - 1064nm
SLB-08B-15PIR1 		8mm 15.4mm
6-12 weeks
$65.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ8mm
Focal length f 15.4mm
Edge thickness te 1.5mm
Center thickness tc 2.5mm
Back focal length fb 14.6mm
Radius of curvature r 15.57mm
Centration ＜3′
i
Biconvex Lens 15mm Diameter 90.4mm Focal Length 633 - 1064nm
SLB-15B-90PIR1 		15mm 90.4mm
6-12 weeks
$52.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ15mm
Focal length f 90.4mm
Edge thickness te 2mm
Center thickness tc 2.6mm
Back focal length fb 89.6mm
Radius of curvature r 93.42mm
Centration ＜1′
i
Biconvex Lens 25.4mm Diameter 60.8mm Focal Length 633 - 1064nm
SLB-25.4B-60PIR1 		25.4mm 60.8mm
in stock
$75.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25.4mm
Focal length f 60.8mm
Edge thickness te 1.9mm
Center thickness tc 4.5mm
Back focal length fb 59.2mm
Radius of curvature r 62.28mm
Centration ＜1′
i
Biconvex Lens 50mm Diameter 91.6mm Focal Length 633 - 1064nm
SLB-50B-90PIR1 		50mm 91.6mm
6-12 weeks
$107.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50mm
Focal length f 91.6mm
Edge thickness te 3mm
Center thickness tc 9.8mm
Back focal length fb 88.4mm
Radius of curvature r 93.42mm
Centration ＜1′
i
Biconvex Lens 80mm Diameter 103.2mm Focal Length 633 - 1064nm
SLB-80B-100PIR1 		80mm 103.2mm
6-12 weeks
$269.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ80mm
Focal length f 103.2mm
Edge thickness te 3mm
Center thickness tc 19mm
Back focal length fb 96.8mm
Radius of curvature r 103.8mm
Centration ＜1′
i
Biconvex Lens 10mm Diameter 10.8mm Focal Length 633 - 1064nm
SLB-10B-10PIR1 		10mm 10.8mm
6-12 weeks
$57.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ10mm
Focal length f 10.8mm
Edge thickness te 2mm
Center thickness tc 4.6mm
Back focal length fb 9.2mm
Radius of curvature r 10.38mm
Centration ＜1′
i
Biconvex Lens 20mm Diameter 26mm Focal Length 633 - 1064nm
SLB-20B-25PIR1 		20mm 26mm
6-12 weeks
$70.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ20mm
Focal length f 26mm
Edge thickness te 2mm
Center thickness tc 6mm
Back focal length fb 24mm
Radius of curvature r 25.95mm
Centration ＜1′
i
Biconvex Lens 25.4mm Diameter 100.6mm Focal Length 633 - 1064nm
SLB-25.4B-100PIR1 		25.4mm 100.6mm
in stock
$67.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25.4mm
Focal length f 100.6mm
Edge thickness te 1.9mm
Center thickness tc 3.5mm
Back focal length fb 99.4mm
Radius of curvature r 103.8mm
Centration ＜1′
i
Biconvex Lens 50mm Diameter 151.2mm Focal Length 633 - 1064nm
SLB-50B-150PIR1 		50mm 151.2mm
6-12 weeks
$99.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50mm
Focal length f 151.2mm
Edge thickness te 3mm
Center thickness tc 7mm
Back focal length fb 148.8mm
Radius of curvature r 155.7mm
Centration ＜1′
i
Biconvex Lens 80mm Diameter 251.5mm Focal Length 633 - 1064nm
SLB-80B-250PIR1 		80mm 251.5mm
6-12 weeks
$240.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ80mm
Focal length f 251.5mm
Edge thickness te 3mm
Center thickness tc 9.2mm
Back focal length fb 248.5mm
Radius of curvature r 259.5mm
Centration ＜1′
i
Biconvex Lens 10mm Diameter 25.5mm Focal Length 633 - 1064nm
SLB-10B-25PIR1 		10mm 25.5mm
6-12 weeks
$54.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ10mm
Focal length f 25.5mm
Edge thickness te 2mm
Center thickness tc 3mm
Back focal length fb 24.5mm
Radius of curvature r 25.95mm
Centration ＜1′
i
Biconvex Lens 20mm Diameter 50.7mm Focal Length 633 - 1064nm
SLB-20B-50PIR1 		20mm 50.7mm
2 weeks
$64.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ20mm
Focal length f 50.7mm
Edge thickness te 2mm
Center thickness tc 3.9mm
Back focal length fb 49.3mm
Radius of curvature r 51.9mm
Centration ＜1′
i
Biconvex Lens 30mm Diameter 31.7mm Focal Length 633 - 1064nm
SLB-30B-30PIR1 		30mm 31.7mm
6-12 weeks
$95.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ30mm
Focal length f 31.7mm
Edge thickness te 2mm
Center thickness tc 9.7mm
Back focal length fb 28.3mm
Radius of curvature r 31.14mm
Centration ＜1′
i
Biconvex Lens 50mm Diameter 220.9mm Focal Length 633 - 1064nm
SLB-50B-220PIR1 		50mm 220.9mm
6-12 weeks
$96.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50mm
Focal length f 220.9mm
Edge thickness te 3mm
Center thickness tc 5.7mm
Back focal length fb 219.1mm
Radius of curvature r 228.36mm
Centration ＜1′
i
Biconvex Lens 80mm Diameter 501mm Focal Length 633 - 1064nm
SLB-80B-500PIR1 		80mm 501mm
6-12 weeks
$230.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ80mm
Focal length f 501mm
Edge thickness te 3mm
Center thickness tc 6.1mm
Back focal length fb 499mm
Radius of curvature r 519mm
Centration ＜1′
i
Biconvex Lens 10mm Diameter 50.4mm Focal Length 633 - 1064nm
SLB-10B-50PIR1 		10mm 50.4mm
6-12 weeks
$51.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ10mm
Focal length f 50.4mm
Edge thickness te 2mm
Center thickness tc 2.5mm
Back focal length fb 49.6mm
Radius of curvature r 51.9mm
Centration ＜1′
i
Biconvex Lens 20mm Diameter 80.5mm Focal Length 633 - 1064nm
SLB-20B-80PIR1 		20mm 80.5mm
6-12 weeks
$62.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ20mm
Focal length f 80.5mm
Edge thickness te 2mm
Center thickness tc 3.2mm
Back focal length fb 79.5mm
Radius of curvature r 83.04mm
Centration ＜1′
i
Biconvex Lens 30mm Diameter 51.1mm Focal Length 633 - 1064nm
SLB-30B-50PIR1 		30mm 51.1mm
6-12 weeks
$85.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ30mm
Focal length f 51.1mm
Edge thickness te 2mm
Center thickness tc 6.4mm
Back focal length fb 48.9mm
Radius of curvature r 51.9mm
Centration ＜1′
i
Biconvex Lens 50.8mm Diameter 52.7mm Focal Length 633 - 1064nm
SLB-50.8B-50PIR1 		50.8mm 52.7mm
in stock
$120.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50.8mm
Focal length f 52.7mm
Edge thickness te 3mm
Center thickness tc 16.3mm
Back focal length fb 47.1mm
Radius of curvature r 51.9mm
Centration ＜1′
i
Biconvex Lens 100mm Diameter 153.3mm Focal Length 633 - 1064nm
SLB-100B-150PIR1 		100mm 153.3mm
6-12 weeks
$339.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ100mm
Focal length f 153.3mm
Edge thickness te 3mm
Center thickness tc 19.5mm
Back focal length fb 146.7mm
Radius of curvature r 155.7mm
Centration ＜1′
i
Biconvex Lens 5mm Diameter 8.4mm Focal Length 633 - 1064nm
SLB-05B-08PIR1 		5mm 8.4mm
6-12 weeks
$75.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ5mm
Focal length f 8.4mm
Edge thickness te 1.4mm
Center thickness tc 2.1mm
Back focal length fb 7.6mm
Radius of curvature r 8.3mm
Centration ＜3′
i
Biconvex Lens 10mm Diameter 80.4mm Focal Length 633 - 1064nm
SLB-10B-80PIR1 		10mm 80.4mm
6-12 weeks
$51.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ10mm
Focal length f 80.4mm
Edge thickness te 2mm
Center thickness tc 2.3mm
Back focal length fb 79.6mm
Radius of curvature r 83.04mm
Centration ＜1′
i
Biconvex Lens 20mm Diameter 120.5mm Focal Length 633 - 1064nm
SLB-20B-120PIR1 		20mm 120.5mm
6-12 weeks
$60.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ20mm
Focal length f 120.5mm
Edge thickness te 2mm
Center thickness tc 2.8mm
Back focal length fb 119.5mm
Radius of curvature r 124.56mm
Centration ＜1′
i
Biconvex Lens 30mm Diameter 80.8mm Focal Length 633 - 1064nm
SLB-30B-80PIR1 		30mm 80.8mm
2 weeks
$73.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ30mm
Focal length f 80.8mm
Edge thickness te 2mm
Center thickness tc 4.7mm
Back focal length fb 79.2mm
Radius of curvature r 83.04mm
Centration ＜1′
i
Biconvex Lens 50.8mm Diameter 81.8mm Focal Length 633 - 1064nm
SLB-50.8B-80PIR1 		50.8mm 81.8mm
in stock
$107.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50.8mm
Focal length f 81.8mm
Edge thickness te 3mm
Center thickness tc 11mm
Back focal length fb 78.2mm
Radius of curvature r 83.04mm
Centration ＜1′
i
Biconvex Lens 100mm Diameter 301.8mm Focal Length 633 - 1064nm
SLB-100B-300PIR1 		100mm 301.8mm
6-12 weeks
$309.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ100mm
Focal length f 301.8mm
Edge thickness te 3mm
Center thickness tc 11.1mm
Back focal length fb 298.2mm
Radius of curvature r 311.4mm
Centration ＜1′
i
Biconvex Lens 5mm Diameter 15.3mm Focal Length 633 - 1064nm
SLB-05B-15PIR1 		5mm 15.3mm
6-12 weeks
$75.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ5mm
Focal length f 15.3mm
Edge thickness te 1.2mm
Center thickness tc 1.6mm
Back focal length fb 14.7mm
Radius of curvature r 15.57mm
Centration ＜3′
i
Biconvex Lens 12.7mm Diameter 13.0mm Focal Length 633 - 1064nm
SLB-12.7B-12PIR1 		12.7mm 13.0mm
in stock
$57.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture φD≧φ10mm ; 85% of the diameter
φD＜φ10mm ; 83% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ12.7mm
Focal length f 13.0mm
Edge thickness te 2mm
Center thickness tc 5.5mm
Back focal length fb 11.0mm
Radius of curvature r 12.46mm
Centration ＜1′
i
Biconvex Lens 25mm Diameter 31.2mm Focal Length 633 - 1064nm
SLB-25B-30PIR1 		25mm 31.2mm
2 weeks
$83.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25mm
Focal length f 31.2mm
Edge thickness te 2mm
Center thickness tc 7.2mm
Back focal length fb 28.8mm
Radius of curvature r 31.14mm
Centration ＜1′
i
Biconvex Lens 30mm Diameter 150.6mm Focal Length 633 - 1064nm
SLB-30B-150PIR1 		30mm 150.6mm
6-12 weeks
$70.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ30mm
Focal length f 150.6mm
Edge thickness te 2mm
Center thickness tc 3.4mm
Back focal length fb 149.4mm
Radius of curvature r 155.7mm
Centration ＜1′

You must be logged in to ask questions

We detect that you are accessing the website from a different region. You will be redirected to a local version of OptoSigma.

Your requested the page :

AMERICA

Redirection to :
