Absorptive Neutral Density Filter

MAN

Absorptive Neutral Density Filter
In stock
SKU
MAN
We offer a complete line of ND filters to reduce intensity of the visible light. This is an absorptive type of filter that reduces stray reflected light and reduces intensity of the light with minimal difference of transmission for visible wavelengths.
custom product
Customize product
Name Diameter φD Transmittance Delivery Price Add to cart
i
Absorptive Neutral Density Filter Mounted (Visible) 30mm Diameter 30%
MAN-30-30
30mm 30±3% (400-700nm)
6-12 weeks
$71.00
Material Optical Glass
(including a substance of visible light absorption)
Wavelength Range Visible : 400 − 700nm

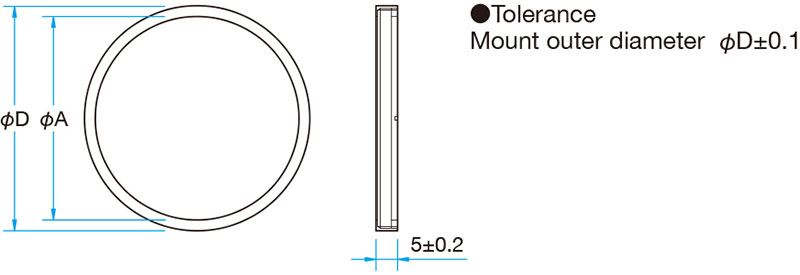

Mount outer diameter φD φ30mm
Clear aperture φA φ22mm
Average transmittance <br>(400-700nm) 30±3%
i
Absorptive Neutral Density Filter Mounted (Visible) 30mm Diameter 70%
MAN-30-70
30mm 70±5% (400-700nm)
in stock
$71.00
Material Optical Glass
(including a substance of visible light absorption)
Wavelength Range Visible : 400 − 700nm
Mount outer diameter φD φ30mm
Clear aperture φA φ22mm
Average transmittance <br>(400-700nm) 70±5%
i
Absorptive Neutral Density Filter Mounted (Visible) 52mm Diameter 5%
MAN-52-5
52mm 5±1% (400-700nm)
6-12 weeks
$92.00
Material Optical Glass
(including a substance of visible light absorption)
Wavelength Range Visible : 400 − 700nm
Mount outer diameter φD φ52mm
Clear aperture φA φ47mm
Average transmittance <br>(400-700nm) 5±1%
i
Absorptive Neutral Density Filter Mounted (Visible) 52mm Diameter 25%
MAN-52-25
52mm 25±2.5% (400-700nm)
6-12 weeks
$92.00
Material Optical Glass
(including a substance of visible light absorption)
Wavelength Range Visible : 400 − 700nm
Mount outer diameter φD φ52mm
Clear aperture φA φ47mm
Average transmittance <br>(400-700nm) 25±2.5%
i
Absorptive Neutral Density Filter Mounted (Visible) 52mm Diameter 50%
MAN-52-50
52mm 50±5% (400-700nm)
in stock
$92.00
Material Optical Glass
(including a substance of visible light absorption)
Wavelength Range Visible : 400 − 700nm
Mount outer diameter φD φ52mm
Clear aperture φA φ47mm
Average transmittance <br>(400-700nm) 50±5%
i
Absorptive Neutral Density Filter Mounted (Visible) 25mm Diameter 1%
MAN-25-1
25mm 1±0.5% (400-700nm)
in stock
$51.00
Material Optical Glass
(including a substance of visible light absorption)
Wavelength Range Visible : 400 − 700nm
Mount outer diameter φD φ25mm
Clear aperture φA φ17mm
Average transmittance <br>(400-700nm) 1±0.5%
i
Absorptive Neutral Density Filter Mounted (Visible) 25mm Diameter 13%
MAN-25-13
25mm 12.5±2% (400-700nm)
6-12 weeks
$51.00
Material Optical Glass
(including a substance of visible light absorption)
Wavelength Range Visible : 400 − 700nm
Mount outer diameter φD φ25mm
Clear aperture φA φ17mm
Average transmittance <br>(400-700nm) 12.5±2%
i
Absorptive Neutral Density Filter Mounted (Visible) 25mm Diameter 30%
MAN-25-30
25mm 30±3% (400-700nm)
6-12 weeks
$51.00
Material Optical Glass
(including a substance of visible light absorption)
Wavelength Range Visible : 400 − 700nm
Mount outer diameter φD φ25mm
Clear aperture φA φ17mm
Average transmittance <br>(400-700nm) 30±3%
i
Absorptive Neutral Density Filter Mounted (Visible) 25mm Diameter 70%
MAN-25-70
25mm 70±5% (400-700nm)
in stock
$51.00
Material Optical Glass
(including a substance of visible light absorption)
Wavelength Range Visible : 400 − 700nm
Mount outer diameter φD φ25mm
Clear aperture φA φ17mm
Average transmittance <br>(400-700nm) 70±5%
i
Absorptive Neutral Density Filter Mounted (Visible) 30mm Diameter 5%
MAN-30-5
30mm 5±1% (400-700nm)
in stock
$71.00
Material Optical Glass
(including a substance of visible light absorption)
Wavelength Range Visible : 400 − 700nm
Mount outer diameter φD φ30mm
Clear aperture φA φ22mm
Average transmittance <br>(400-700nm) 5±1%
i
Absorptive Neutral Density Filter Mounted (Visible) 30mm Diameter 20%
MAN-30-20
30mm 20±2% (400-700nm)
6-12 weeks
$71.00
Material Optical Glass
(including a substance of visible light absorption)
Wavelength Range Visible : 400 − 700nm
Mount outer diameter φD φ30mm
Clear aperture φA φ22mm
Average transmittance <br>(400-700nm) 20±2%
i
Absorptive Neutral Density Filter Mounted (Visible) 30mm Diameter 40%
MAN-30-40
30mm 40±4% (400-700nm)
in stock
$71.00
Material Optical Glass
(including a substance of visible light absorption)
Wavelength Range Visible : 400 − 700nm
Mount outer diameter φD φ30mm
Clear aperture φA φ22mm
Average transmittance <br>(400-700nm) 40±4%
i
Absorptive Neutral Density Filter Mounted (Visible) 52mm Diameter 0.1%
MAN-52-0.1
52mm 0.1±0.07% (400-700nm)
6-12 weeks
$92.00
Material Optical Glass
(including a substance of visible light absorption)
Wavelength Range Visible : 400 − 700nm
Mount outer diameter φD φ52mm
Clear aperture φA φ47mm
Average transmittance <br>(400-700nm) 0.1±0.07%
i
Absorptive Neutral Density Filter Mounted (Visible) 52mm Diameter 13%
MAN-52-13
52mm 12.5±2% (400-700nm)
6-12 weeks
$92.00
Material Optical Glass
(including a substance of visible light absorption)
Wavelength Range Visible : 400 − 700nm
Mount outer diameter φD φ52mm
Clear aperture φA φ47mm
Average transmittance <br>(400-700nm) 12.5±2%
i
Absorptive Neutral Density Filter Mounted (Visible) 52mm Diameter 10%
MAN-52-10
52mm 10±2% (400-700nm)
in stock
$92.00
Material Optical Glass
(including a substance of visible light absorption)
Wavelength Range Visible : 400 − 700nm
Mount outer diameter φD φ52mm
Clear aperture φA φ47mm
Average transmittance <br>(400-700nm) 10±2%
i
Absorptive Neutral Density Filter Mounted (Visible) 52mm Diameter 30%
MAN-52-30
52mm 30±3% (400-700nm)
in stock
$92.00
Material Optical Glass
(including a substance of visible light absorption)
Wavelength Range Visible : 400 − 700nm
Mount outer diameter φD φ52mm
Clear aperture φA φ47mm
Average transmittance <br>(400-700nm) 30±3%
i
Absorptive Neutral Density Filter Mounted (Visible) 52mm Diameter 70%
MAN-52-70
52mm 70±5% (400-700nm)
in stock
$92.00
Material Optical Glass
(including a substance of visible light absorption)
Wavelength Range Visible : 400 − 700nm
Mount outer diameter φD φ52mm
Clear aperture φA φ47mm
Average transmittance <br>(400-700nm) 70±5%
i
Absorptive Neutral Density Filter Mounted (Visible) 25mm Diameter 5%
MAN-25-5
25mm 5±1% (400-700nm)
in stock
$51.00
Material Optical Glass
(including a substance of visible light absorption)
Wavelength Range Visible : 400 − 700nm
Mount outer diameter φD φ25mm
Clear aperture φA φ17mm
Average transmittance <br>(400-700nm) 5±1%
i
Absorptive Neutral Density Filter Mounted (Visible) 25mm Diameter 20%
MAN-25-20
25mm 20±2% (400-700nm)
6-12 weeks
$51.00
Material Optical Glass
(including a substance of visible light absorption)
Wavelength Range Visible : 400 − 700nm
Mount outer diameter φD φ25mm
Clear aperture φA φ17mm
Average transmittance <br>(400-700nm) 20±2%
i
Absorptive Neutral Density Filter Mounted (Visible) 25mm Diameter 40%
MAN-25-40
25mm 40±4% (400-700nm)
in stock
$51.00
Material Optical Glass
(including a substance of visible light absorption)
Wavelength Range Visible : 400 − 700nm
Mount outer diameter φD φ25mm
Clear aperture φA φ17mm
Average transmittance <br>(400-700nm) 40±4%
i
Absorptive Neutral Density Filter Mounted (Visible) 30mm Diameter 0.1%
MAN-30-0.1
30mm 0.1±0.07% (400-700nm)
6-12 weeks
$71.00
Material Optical Glass
(including a substance of visible light absorption)
Wavelength Range Visible : 400 − 700nm
Mount outer diameter φD φ30mm
Clear aperture φA φ22mm
Average transmittance <br>(400-700nm) 0.1±0.07%
i
Absorptive Neutral Density Filter Mounted (Visible) 30mm Diameter 10%
MAN-30-10
30mm 10±2% (400-700nm)
in stock
$71.00
Material Optical Glass
(including a substance of visible light absorption)
Wavelength Range Visible : 400 − 700nm
Mount outer diameter φD φ30mm
Clear aperture φA φ22mm
Average transmittance <br>(400-700nm) 10±2%
i
Absorptive Neutral Density Filter Mounted (Visible) 30mm Diameter 25%
MAN-30-25
30mm 25±2.5% (400-700nm)
in stock
$71.00
Material Optical Glass
(including a substance of visible light absorption)
Wavelength Range Visible : 400 − 700nm
Mount outer diameter φD φ30mm
Clear aperture φA φ22mm
Average transmittance <br>(400-700nm) 25±2.5%
i
Absorptive Neutral Density Filter Mounted (Visible) 30mm Diameter 50%
MAN-30-50
30mm 50±5% (400-700nm)
in stock
$71.00
Material Optical Glass
(including a substance of visible light absorption)
Wavelength Range Visible : 400 − 700nm
Mount outer diameter φD φ30mm
Clear aperture φA φ22mm
Average transmittance <br>(400-700nm) 50±5%
i
Absorptive Neutral Density Filter Mounted (Visible) 52mm Diameter 1%
MAN-52-1
52mm 1±0.5% (400-700nm)
in stock
$92.00
Material Optical Glass
(including a substance of visible light absorption)
Wavelength Range Visible : 400 − 700nm
Mount outer diameter φD φ52mm
Clear aperture φA φ47mm
Average transmittance <br>(400-700nm) 1±0.5%
i
Absorptive Neutral Density Filter Mounted (Visible) 52mm Diameter 20%
MAN-52-20
52mm 20±2% (400-700nm)
6-12 weeks
$92.00
Material Optical Glass
(including a substance of visible light absorption)
Wavelength Range Visible : 400 − 700nm
Mount outer diameter φD φ52mm
Clear aperture φA φ47mm
Average transmittance <br>(400-700nm) 20±2%
i
Absorptive Neutral Density Filter Mounted (Visible) 52mm Diameter 40%
MAN-52-40
52mm 40±4% (400-700nm)
6-12 weeks
$92.00
Material Optical Glass
(including a substance of visible light absorption)
Wavelength Range Visible : 400 − 700nm
Mount outer diameter φD φ52mm
Clear aperture φA φ47mm
Average transmittance <br>(400-700nm) 40±4%
i
Absorptive Neutral Density Filter Mounted (Visible) 25mm Diameter 0.1%
MAN-25-0.1
25mm 0.1±0.07% (400-700nm)
in stock
$51.00
Material Optical Glass
(including a substance of visible light absorption)
Wavelength Range Visible : 400 − 700nm
Mount outer diameter φD φ25mm
Clear aperture φA φ17mm
Average transmittance <br>(400-700nm) 0.1±0.07%
i
Absorptive Neutral Density Filter Mounted (Visible) 25mm Diameter 10%
MAN-25-10
25mm 10±2% (400-700nm)
in stock
$51.00
Material Optical Glass
(including a substance of visible light absorption)
Wavelength Range Visible : 400 − 700nm
Mount outer diameter φD φ25mm
Clear aperture φA φ17mm
Average transmittance <br>(400-700nm) 10±2%
i
Absorptive Neutral Density Filter Mounted (Visible) 25mm Diameter 25%
MAN-25-25
25mm 25±2.5% (400-700nm)
in stock
$51.00
Material Optical Glass
(including a substance of visible light absorption)
Wavelength Range Visible : 400 − 700nm
Mount outer diameter φD φ25mm
Clear aperture φA φ17mm
Average transmittance <br>(400-700nm) 25±2.5%
i
Absorptive Neutral Density Filter Mounted (Visible) 25mm Diameter 50%
MAN-25-50
25mm 50±5% (400-700nm)
6-12 weeks
$51.00
Material Optical Glass
(including a substance of visible light absorption)
Wavelength Range Visible : 400 − 700nm
Mount outer diameter φD φ25mm
Clear aperture φA φ17mm
Average transmittance <br>(400-700nm) 50±5%
i
Absorptive Neutral Density Filter Mounted (Visible) 30mm Diameter 1%
MAN-30-1
30mm 1±0.5% (400-700nm)
in stock
$71.00
Material Optical Glass
(including a substance of visible light absorption)
Wavelength Range Visible : 400 − 700nm
Mount outer diameter φD φ30mm
Clear aperture φA φ22mm
Average transmittance <br>(400-700nm) 1±0.5%
i
Absorptive Neutral Density Filter Mounted (Visible) 30mm Diameter 13%
MAN-30-13
30mm 12.5±2% (400-700nm)
in stock
$71.00
Material Optical Glass
(including a substance of visible light absorption)
Wavelength Range Visible : 400 − 700nm
Mount outer diameter φD φ30mm
Clear aperture φA φ22mm
Average transmittance <br>(400-700nm) 12.5±2%

You must be logged in to ask questions

◦The transmittance can be fine tuned and can offer light intensity adjustment. Moreover, with a multi-filter set up, ultra fine light intensity tuning can be realized.
◦The mounted filter (model MAN/MANY) with it’s outer frame can be easily mounted in our filter holder (model FH). For a filter with diameter 30mm outer frame please see lens holder (model LHF-30S) for your reference.
