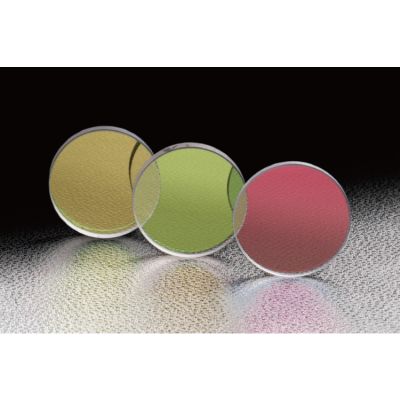

Laser Line Plate Half Mirror 50mm Diameter 193nm
PSMH-50C08-10W-193
Laser line plate mirrors are plate beamsplitters that are optically coated with dielectric multi-layer on the front surface of optical parallels or wedged substrates. The rear surface is coated with multi-layer anti-reflection.
◦Half mirrors divide input beam into reflectance and transmittance ratio of 1:1. A beamsplitter of R:T=1:1 is called “Half Mirror”.
◦Any loss from the input beams of this product is minimized because dielectric coatings have no absorption properties. However, the input ratio of reflection to transmission depends on wavelength, polarization and angle of incident of input beam.
◦Plate beamsplitters have beam deviations on transmission and ghost on rear surface reflections. Wedged substrates are used to prevent ghosting.
◦Any loss from the input beams of this product is minimized because dielectric coatings have no absorption properties. However, the input ratio of reflection to transmission depends on wavelength, polarization and angle of incident of input beam.
◦Plate beamsplitters have beam deviations on transmission and ghost on rear surface reflections. Wedged substrates are used to prevent ghosting.
| Name | Laser Line Plate Half Mirror 50mm Diameter 193nm |
|---|---|
| Weight | 0.0350kgs |
| Standard Coatings Available | No |
| Guide |
|
| Remark | - |
| Attention |
|
| Design wavelength | 193nm |
| Image Label | Laser Line Plate Half Mirror 50mm Diameter 193nm |
| Diameter φD | 50mm |
| Material | Synthetic fused silica |
| Reflectance : Transmittance | T=45±5% |
| Material | Synthetic fused silica |
| Surface flatness | λ/10( PSMH-157 is Polished) |
| Coating |
Front surface ; Dielectric multilayer coating Rear surfaces ; Multilayer antireflection coating |
| Incident angle | 45° |
| Divergence ratio <br> (reflectance : transmittance) | 1 : 1 |
| Surface Quality <br> (Scratch-Dig) | 10-5 (PSMH-157 ; 40-20) |
| Wavelength range | 193nm |
| Diameter φD | φ50mm |
| Thickness t | 8mm |
| Parallelism<br>Wedge angle W | 1°±5′ |
| Reflectance R<br>Transmittance T | T=45±5% |
| Laser Damage Threshold<sup>*</sup> | 1J/cm2 |
| Availability | Please contact |
| *Laser Pulse width ; 10ns , Repetition frequency ; 20Hz |
In stock
SKU
PSMH-50C08-10W-193
$769.00
Customize product
Laser line plate mirrors are plate beamsplitters that are optically coated with dielectric multi-layer on the front surface of optical parallels or wedged substrates. The rear surface is coated with multi-layer anti-reflection.
