X-Axis Steel Piezomotor Linear Stages

TSD-X-PDM

In stock

SKU

TSD-X-PDM

TSD-X-PDM x-axis piezomotor linear stages are our flagship stage and feature EXC bearings with hardened tool-steel construction delivering 20nm resolution.

Add to Wish List

Customize product

Filters

Enabled filters :

Remove all filters

Attention

Actuator mounting brackets may extend above the top surface of some stages.
Note that based upon payload size, rated travel could be reduced.

Name Stage Size Mounting Thread Delivery Price Add to cart

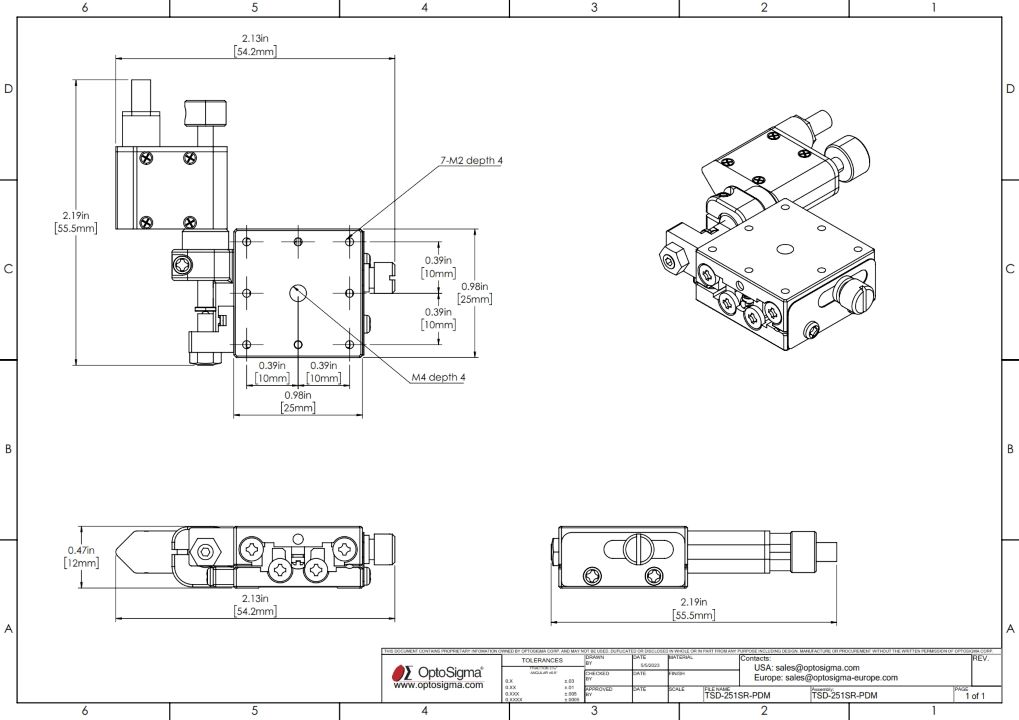

Motorized 25X25mm EXC Bearing, Steel, X-Axis Stage, Side Piezomotor, +/-3mm, M2 Threads, Right-Handed
TSD-251SR-PDM

25×25mm

2-3 weeks

$1,136.00

Moment Stiffness / Pitch	1.8″/N・cm
Moment Stiffness / Yaw	1.1″/N･cm
Moment Stiffness / Roll	1.1″/N･cm
Guide Method	Extended Contact Ball Bearing Guide
Travel Accuracy / Pitch	30″
Travel Accuracy / Yaw	25″
Travel Accuracy / Straightness	0.5μm
Running Parallelism	7μm
Max. Moment Capacity / Pitch	3.0N・m
Max. Moment Capacity / Yaw	1.5N・m
Max. Moment Capacity / Roll	3.7N・m
Primary material	Steel
Finish	Super black chrome

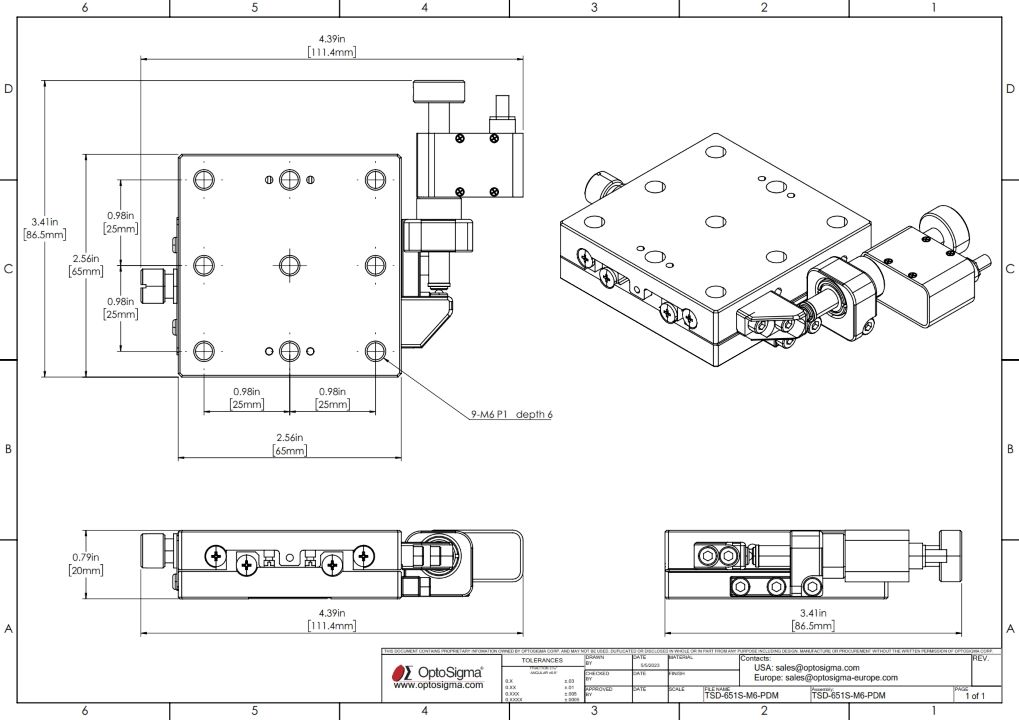

Motorized 65X65mm EXC Bearing, Steel, X-Axis Stage, Side Piezomotor, +/-6.5mm, M6 Threads
TSD-651S-M6-PDM

65×65mm

2-3 weeks

$1,161.00

Moment Stiffness / Pitch	0.08″/N・cm
Moment Stiffness / Yaw	0.08″/N・cm
Moment Stiffness / Roll	0.05″/N・cm
Guide Method	Extended Contact Ball Bearing Guide
Travel Accuracy / Pitch	25″
Travel Accuracy / Yaw	15″
Running Parallelism	7μm
Max. Moment Capacity / Pitch	13.2N・m
Max. Moment Capacity / Yaw	10N・m
Max. Moment Capacity / Roll	14.7N・m
Primary material	Steel
Finish	Super black chrome

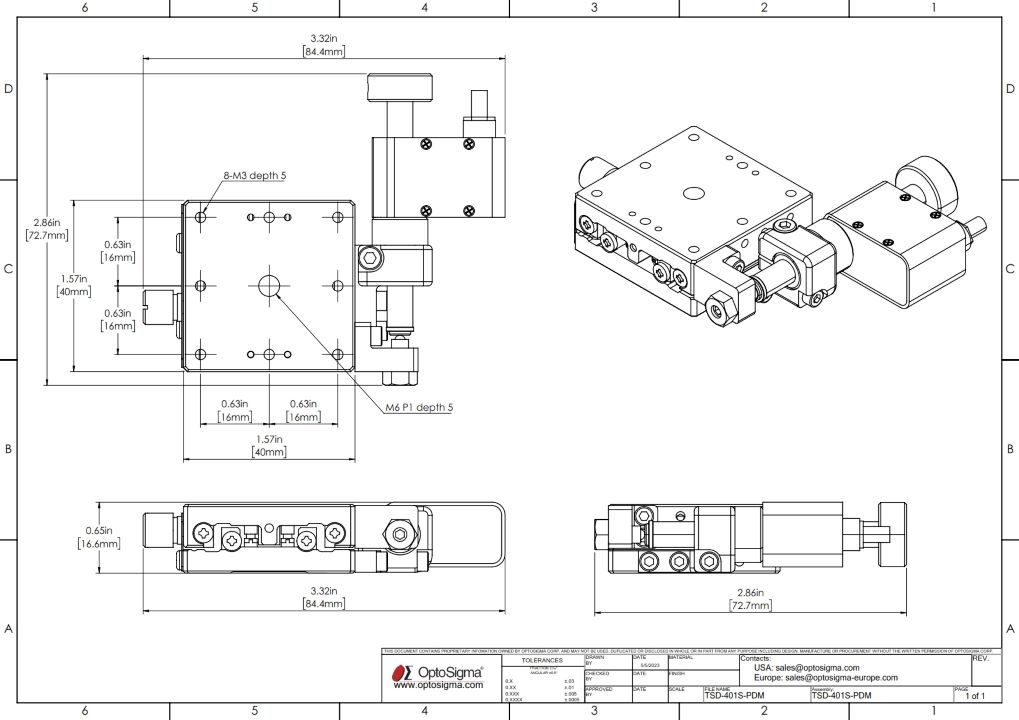

Motorized 40X40mm EXC Bearing, Steel, X-Axis Stage, Side Piezomotor, +/-6.5mm, M3 Threads
TSD-401S-PDM

40×40mm

2-3 weeks

$1,070.00

Moment Stiffness / Pitch	0.3″/N・cm
Moment Stiffness / Yaw	0.23″/N・cm
Moment Stiffness / Roll	0.2″/N・cm
Guide Method	Extended Contact Ball Bearing Guide
Travel Accuracy / Pitch	25″
Travel Accuracy / Yaw	15″
Travel Accuracy / Straightness	0.5μm
Running Parallelism	7μm
Max. Moment Capacity / Pitch	7.8N・m
Max. Moment Capacity / Yaw	5.0N・m
Max. Moment Capacity / Roll	7.8N・m
Primary material	Steel
Finish	Super black chrome

Motorized 65X65mm EXC Bearing, Steel, X-Axis Stage, Side Piezomotor, +/-6.5mm, 1/4-20 Threads
TSD-651SUU-PDM

65×65mm

1/4-20UNC

2-3 weeks

$1,161.00

Moment Stiffness / Pitch	0.08″/N・cm
Moment Stiffness / Yaw	0.08″/N・cm
Moment Stiffness / Roll	0.05″/N・cm
Guide Method	Extended Contact Ball Bearing Guide
Travel Accuracy / Pitch	25″
Travel Accuracy / Yaw	15″
Running Parallelism	7μm
Max. Moment Capacity / Pitch	13.2N・m
Max. Moment Capacity / Yaw	10N・m
Max. Moment Capacity / Roll	14.7N・m
Primary material	Steel
Finish	Super black chrome

Motorized 25X25mm EXC Bearing, Steel, X-Axis Stage, Side Piezomotor, +/-3mm, M2 Threads
TSD-251S-PDM

25×25mm

2-3 weeks

$1,136.00

Moment Stiffness / Pitch	1.8″/N・cm
Moment Stiffness / Yaw	1.1″/N･cm
Moment Stiffness / Roll	1.1″/N･cm
Guide Method	Extended Contact Ball Bearing Guide
Travel Accuracy / Pitch	30″
Travel Accuracy / Yaw	25″
Travel Accuracy / Straightness	0.5μm
Running Parallelism	7μm
Max. Moment Capacity / Pitch	3.0N・m
Max. Moment Capacity / Yaw	1.5N・m
Max. Moment Capacity / Roll	3.7N・m
Primary material	Steel
Finish	Super black chrome

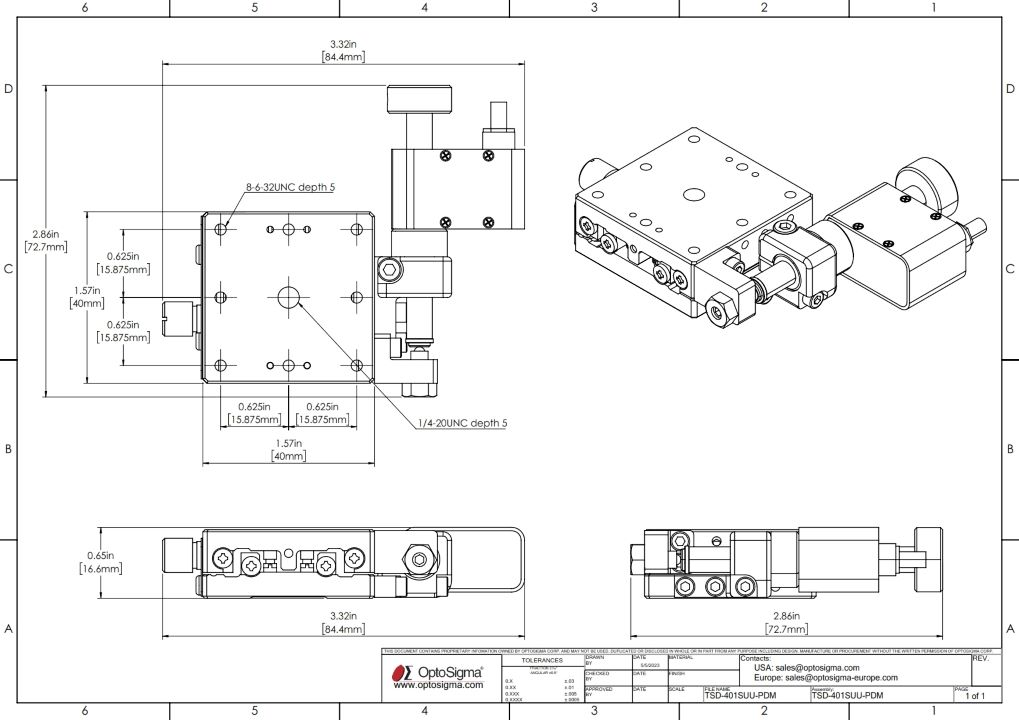

Motorized 40X40mm EXC Bearing, Steel, X-Axis Stage, Side Piezomotor, +/-6.5mm, 6-32 Threads
TSD-401SUU-PDM

40×40mm

6-32UNC

2-3 weeks

$1,070.00

Moment Stiffness / Pitch	0.3″/N・cm
Moment Stiffness / Yaw	0.23″/N・cm
Moment Stiffness / Roll	0.2″/N・cm
Guide Method	Extended Contact Ball Bearing Guide
Travel Accuracy / Pitch	25″
Travel Accuracy / Yaw	15″
Travel Accuracy / Straightness	0.5μm
Running Parallelism	7μm
Max. Moment Capacity / Pitch	7.8N・m
Max. Moment Capacity / Yaw	5.0N・m
Max. Moment Capacity / Roll	7.8N・m
Primary material	Steel
Finish	Super black chrome
