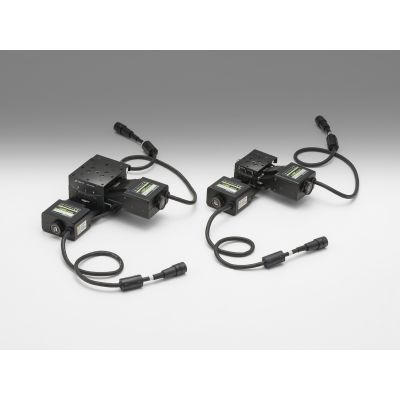

Two Axis Motorized Steel Goniometer Stage (Motor Right Side)

OSMS-60B85R

CE
3d-simple-product
High precision motorized goniometers with integrated bearing ways for superior stiffness, accuracy and durability.Their smooth motion makes them ideal for frequent angle adjustment.



More Information
Name Two Axis Motorized Steel Goniometer Stage (Motor Right Side)
Weight 1.6000kgs
Guide
  • Contact our Sales Division if you desire to assemble into an αβ axis stage.
  • Manual type αβ axis (GOHT-40 (WEB Reference Catalog Code/W7104) and (GOHT-60 (WEB Reference Catalog Code/W7105) isalso available.
Attention -
Image Label Two Axis Motorized Steel Goniometer Stage (Motor Right Side)
Travel Upper β axis / Lower α axis (Upper)±9°/(Lower)±7°
Load Capacity 19.6N (2.0kg)
Type Opposite Model
Travel Upper β axis / Lower α axis (Upper)±9°/(Lower)±7°
Stage Size 60×60mm
Travel Mechanism (reduction ratio) Upper β axis / Lower α axis (Upper)Worm gear(1:314)(Lower)Worm gear(1:380)
Positioning Slide Extended Contact Ball Guide
Stage Material SUS440C quench hardened
Finish Super black chrome
Stage Height 40mm
Rotation Center Height 85±0.1mm
Rotation Center Deflection Accuracy Within φ0.01mm
Resolution (Full) (Upper)β axis / (Lower)α axis (Upper)about 0.00229°/pulse (Lower)about 0.00198°/pulse
Resolution (Half) (Upper)β axis / (Lower)α axis (Upper)about 0.00115°/pulse (Lower)about 0.00095°/pulse
MAX Speed 6°/sec
Load Capacity 19.6(2.0kgf)
Sensor Part Number Micro photo sensor : GP1S097HCZ(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor Equipped (NORMAL OPEN)
Proximity Origin Sensor None
In stock
SKU
OSMS-60B85R
$3,257.00

Delivery in : 6-12 weeks

High precision motorized goniometers with integrated bearing ways for superior stiffness, accuracy and durability.Their smooth motion makes them ideal for frequent angle adjustment.
