Two-Axis Pitch/Roll Tilt Stages

AIS

Two-Axis Pitch/Roll Tilt Stages
In stock
SKU
AIS
The AIS stages are a series of aluminum 2-Axis kinematic tilt platforms which are available in sizes from 25X25mm up to 160X220mm. The edge-knob adjustment design provides pitch/roll tilt which can be used to level one platform to match another. These stages are compatible with other linear and rotation stages having the same size and mounting threads.
custom product
Customize product
Name Stage Size Tilt Range Load Capacity Delivery Price Add to cart
i
25X25mm, 2-Axis Kinematic Tilt Stage, Aluminum, Edge-Knob Adjustment, +/-2-deg., M2 Threads
AIS-25B
25×25mm ±2° 9.8N (1.0kg)
in stock
$160.00
Stage Size 25×25mm
Tilt Range ±2°
Travel per Knob Rotation about 1.8°
Primary Material Aluminum
Finish Black anodized
Load Capacity 9.8N(1.0kgf)
i
60X60mm, 2-Axis Kinematic Tilt Stage, Aluminum, Edge-Knob Adjustment, +/-2-deg., M4 Threads
AIS-60B
60×60mm ±2° 49N (5.0kg)
2 weeks
$201.00
Stage Size 60×60mm
Tilt Range ±2°
Travel per Knob Rotation about 0.65°
Primary Material Aluminum
Finish Black anodized
Load Capacity 49N(5.0kgf)
i
100X100mm, 2-Axis Kinematic Tilt Stage, Aluminum, Micrometer Adjustment, +/-3-deg., M4 Threads
AIS-100CM
100×100mm (α axis)±3°(β axis)±3° 68.6N (7.0kg)
2 weeks
$270.00
Stage Size 100×100mm
Tilt Range (α axis)±3°(β axis)±3°
Travel per Knob Rotation (α axis)±0.35°(β axis)±0.35°
Primary Material Aluminum
Finish Black anodized
Load Capacity 68.6N(7.0kgf)
i
160X220mm, 2-Axis Kinematic Tilt Stage, Aluminum, Edge-Knob Adjustment, +/-0.7-deg.,+/-0.6-deg, M4 Threads
AIS-1622B
160×220mm (α axis)±0.7°(β axis)±0.6° 98N (10.0kg)
2 weeks
$649.00
Stage Size 160×220mm
Tilt Range (α axis)±0.7°(β axis)±0.6°
Travel per Knob Rotation (α axis)about 0.33°(β axis)about 0.22°
Primary Material Aluminum
Finish Black anodized
Load Capacity 98.0N(10.0kgf)
i
40X40mm, 2-Axis Kinematic Tilt Stage, Aluminum, Edge-Knob Adjustment, +/-2-deg., M3 Threads
AIS-40B
40×40mm ±2° 29.4N (3.0kg)
in stock
$165.00
Stage Size 40×40mm
Tilt Range ±2°
Travel per Knob Rotation about 1°
Primary Material Aluminum
Finish Black anodized
Load Capacity 29.4N(3.0kgf)
i

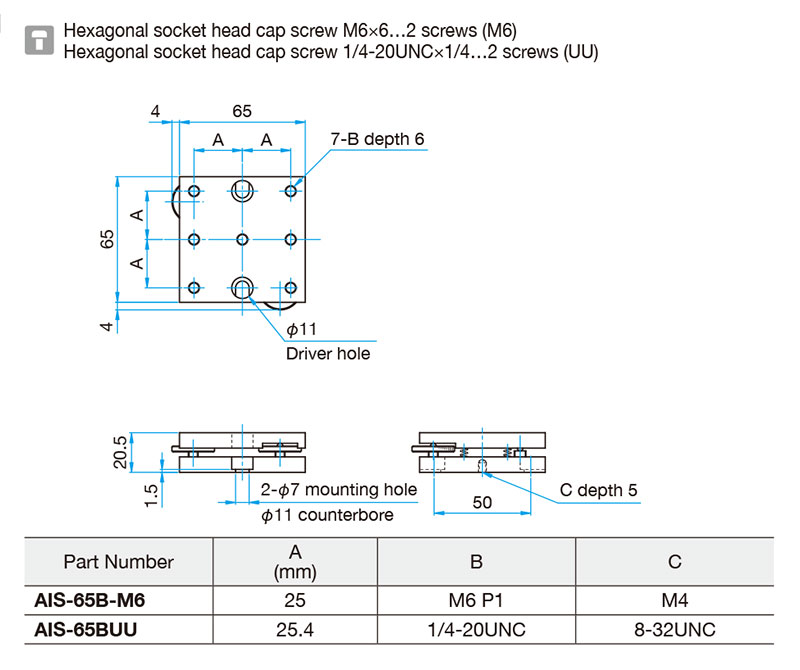

65X65mm, 2-Axis Kinematic Tilt Stage, Aluminum, Edge-Knob Adjustment, +/-2-deg., M6 Threads
AIS-65B-M6
65×65mm ±2° 49N (5.0kg)
in stock
$225.00
Stage Size 65×65mm
Tilt Range ±2°
Travel per Knob Rotation about 0.58°
Primary Material Aluminum
Finish Black anodized
Load Capacity 49N(5.0kgf)
i
80X132mm, 2-Axis Kinematic Tilt Stage, Aluminum, Edge-Knob Adjustment, +/-1.4-deg.,+/-0.8-deg, M4 Threads
AIS-8013B
80×132mm (α axis)±1.4°(β axis)±0.8° 78.4N (8.0kg)
2 weeks
$472.00
Stage Size 80×132mm
Tilt Range (α axis)±1.4°(β axis)±0.8°
Travel per Knob Rotation (α axis)about 0.74°(β axis)about 0.37°
Primary Material Aluminum
Finish Black anodized
Load Capacity 78.4N(8.0kgf)
i
40X40mm, 2-Axis Kinematic Tilt Stage, Aluminum, Edge-Knob Adjustment, +/-2-deg., 6-32 Threads
AIS-40BUU
40×40mm ±2° 29.4N (3.0kg)
in stock
$165.00
Stage Size 40×40mm
Tilt Range ±2°
Travel per Knob Rotation about 1°
Primary Material Aluminum
Finish Black anodized
Load Capacity 29.4N(3.0kgf)
i
65X65mm, 2-Axis Kinematic Tilt Stage, Aluminum, Edge-Knob Adjustment, +/-2-deg., 1/4-20 Threads
AIS-65BUU
65×65mm ±2° 49N (5.0kg)
2 weeks
$225.00
Stage Size 65×65mm
Tilt Range ±2°
Travel per Knob Rotation about 0.58°
Primary Material Aluminum
Finish Black anodized
Load Capacity 49N(5.0kgf)
i
100X160mm, 2-Axis Kinematic Tilt Stage, Aluminum, Edge-Knob Adjustment, +/-1.2-deg.,+/-0.7-deg, M4 Threads
AIS-1016B
100×160mm (α axis)±1.2°(β axis)±0.7° 98N (10.0kg)
2 weeks
$561.00
Stage Size 100×160mm
Tilt Range (α axis)±1.2°(β axis)±0.7°
Travel per Knob Rotation (α axis)about 0.6°(β axis)about 0.32°
Primary Material Aluminum
Finish Black anodized
Load Capacity 98.0N(10.0kgf)

You must be logged in to ask questions

The adjustment knob style is ideal for quick and easy tilt adjustment.
The micrometer style is effective in confined spaces where vertical control from the top is required.
