2-Axis, Nickel-Plated Stainless Steel, EXC Precision-Bearing Lead Screw Goniometers

GOHT-B-NI

2-Axis, Nickel-Plated Stainless Steel, EXC Precision-Bearing Lead Screw Goniometers
In stock
SKU
GOHT-B-NI
OptoSigma’s GOHT-B-NI 2-Axis Goniometers are the only stages to feature curved EXC™ precision bearing ways built directly into their body—delivering unmatched stiffness, load capacity, and ultra-smooth motion. With 1/10th the axis displacement of dovetail designs, these stages enable high-resolution, low-friction performance. Stackable for orbit-like motion around a single point, each stage includes a vernier scale (0.10° resolution), lead screw drive, and locking mechanism. Built from hardened stainless steel with electroless nickel plating, they're ideal for demanding UV applications.
Add to Wish List
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name
Stage Size
Angle Range/(Upper) β axis
Load Capacity
Delivery Price Add to cart
details

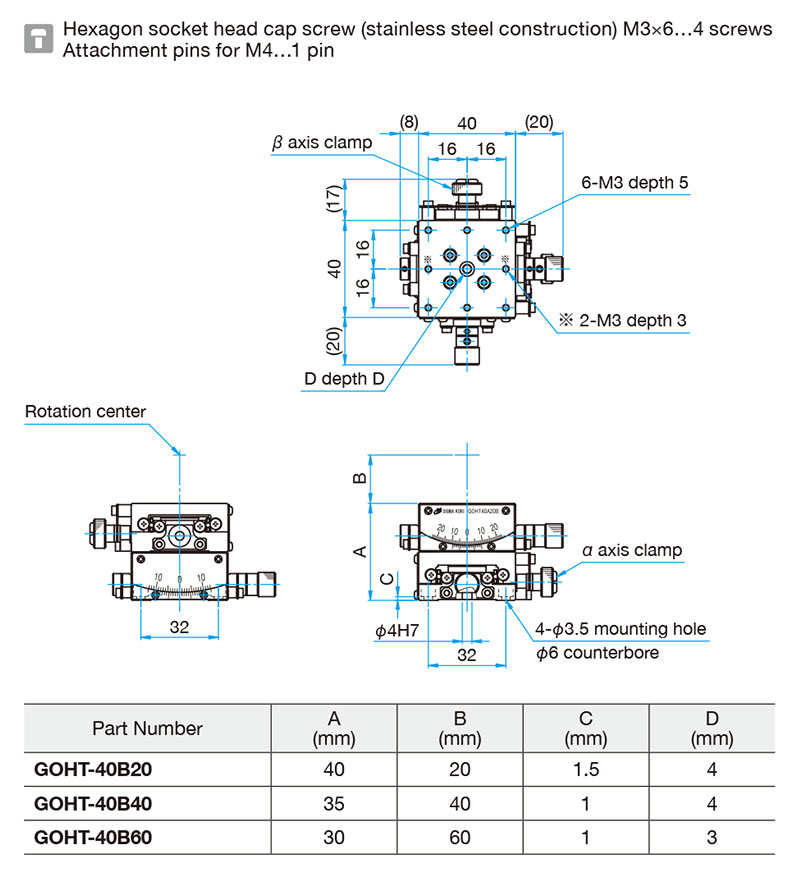

GOHT-40B40
40×40mm ±10° 58.8N (6.0kg)
6-12 weeks
$1,885.00
Rotation Center Height 40±0.2mm
Angle Range/(Upper) β axis ±10°
Angle Range/(Lower) α axis ±8°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 1.41°
Travel per Knob Rotation/(Lower) α axis about 1.08°
Rotation Center Displacement φ0.007mm or less
details
GOHT-40B60R
40×40mm ±8° 58.8N (6.0kg)
6-12 weeks
$1,885.00
Rotation Center Height 60±0.2mm
Angle Range/(Upper) β axis ±8°
Angle Range/(Lower) α axis ±6°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 1.08°
Travel per Knob Rotation/(Lower) α axis about 0.89°
Rotation Center Displacement φ0.007mm or less
details
GOHT-60B60
60×60mm ±15° 98N (10.0kg)
2-3 weeks
$1,885.00
Rotation Center Height 60±0.2mm
Angle Range/(Upper) β axis ±15°
Angle Range/(Lower) α axis ±10°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 1.46°
Travel per Knob Rotation/(Lower) α axis about 1.15°
Rotation Center Displacement φ0.007mm or less
details
GOHT-60B85R
60×60mm ±10° 98N (10.0kg)
2-3 weeks
$1,885.00
Rotation Center Height 85±0.2mm
Angle Range/(Upper) β axis ±10°
Angle Range/(Lower) α axis ±8°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 1.15°
Travel per Knob Rotation/(Lower) α axis about 0.95°
Rotation Center Displacement φ0.007mm or less
Stage Size 60×60mm
Type of Axis αβ axis
Guide Method Extended Contact Ball Bearing Guide
Primary material SUS440C quench hardened
Finish Electroless nickel　GOHT-60B**B：Super black chrome
Load Capacity 98N(10.0kgf)
Max. Moment Capacity / Pitch 3.0N・m
Max. Moment Capacity / Roll 3.0N・m
Max. Moment Capacity / Yaw 3.0N・m
Moment Stiffness / Roll －
Moment Stiffness / Yaw －
Parallelism 30μm
details
GOHT-40B20
40×40mm ±20° 58.8N (6.0kg)
6-12 weeks
$1,885.00
Rotation Center Height 20±0.2mm
Angle Range/(Upper) β axis ±20°
Angle Range/(Lower) α axis ±10°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 2.34°
Travel per Knob Rotation/(Lower) α axis about 1.41°
Rotation Center Displacement φ0.007mm or less
Stage Size 40×40mm
Type of Axis αβ axis
Guide Method Extended Contact Ball Bearing Guide
Primary material SUS440C quench hardened
Finish Electroless nickel　GOHT-40B**B：Super black chrome
Load Capacity 58.8N(6.0kgf)
Max. Moment Capacity / Pitch 2.0N・m
Max. Moment Capacity / Roll 2.0N・m
Max. Moment Capacity / Yaw 2.0N・m
Parallelism 30μm
details
GOHT-40B40R
40×40mm ±10° 58.8N (6.0kg)
6-12 weeks
$1,885.00
Rotation Center Height 40±0.2mm
Angle Range/(Upper) β axis ±10°
Angle Range/(Lower) α axis ±8°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 1.41°
Travel per Knob Rotation/(Lower) α axis about 1.08°
Rotation Center Displacement φ0.007mm or less
details
GOHT-60B35
60×60mm ±20° 98N (10.0kg)
2-3 weeks
$1,885.00
Rotation Center Height 35±0.2mm
Angle Range/(Upper) β axis ±20°
Angle Range/(Lower) α axis ±15°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 2.2°
Travel per Knob Rotation/(Lower) α axis about 1.46°
Rotation Center Displacement φ0.007mm or less
details
GOHT-60B60R
60×60mm ±15° 98N (10.0kg)
2-3 weeks
$1,885.00
Rotation Center Height 60±0.2mm
Angle Range/(Upper) β axis ±15°
Angle Range/(Lower) α axis ±10°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 1.46°
Travel per Knob Rotation/(Lower) α axis about 1.15°
Rotation Center Displacement φ0.007mm or less
details
GOHT-40B20R
40×40mm ±20° 58.8N (6.0kg)
6-12 weeks
$1,885.00
Rotation Center Height 20±0.2mm
Angle Range/(Upper) β axis ±20°
Angle Range/(Lower) α axis ±10°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 2.34°
Travel per Knob Rotation/(Lower) α axis about 1.41°
Rotation Center Displacement φ0.007mm or less
Stage Size 40×40mm
Type of Axis αβ axis
Guide Method Extended Contact Ball Bearing Guide
Primary material SUS440C quench hardened
Finish Electroless nickel　GOHT-40B**B：Super black chrome
Load Capacity 58.8N(6.0kgf)
Max. Moment Capacity / Pitch 2.0N・m
Max. Moment Capacity / Roll 2.0N・m
Max. Moment Capacity / Yaw 2.0N・m
Parallelism 30μm
details
GOHT-40B60
40×40mm ±8° 58.8N (6.0kg)
6-12 weeks
$1,885.00
Rotation Center Height 60±0.2mm
Angle Range/(Upper) β axis ±8°
Angle Range/(Lower) α axis ±6°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 1.08°
Travel per Knob Rotation/(Lower) α axis about 0.89°
Rotation Center Displacement φ0.007mm or less
details
GOHT-60B35R
60×60mm ±20° 98N (10.0kg)
2-3 weeks
$1,885.00
Rotation Center Height 35±0.2mm
Angle Range/(Upper) β axis ±20°
Angle Range/(Lower) α axis ±15°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 2.2°
Travel per Knob Rotation/(Lower) α axis about 1.46°
Rotation Center Displacement φ0.007mm or less
details
GOHT-60B85
60×60mm ±10° 98N (10.0kg)
2 weeks
$1,885.00
Rotation Center Height 85±0.2mm
Angle Range/(Upper) β axis ±10°
Angle Range/(Lower) α axis ±8°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 1.15°
Travel per Knob Rotation/(Lower) α axis about 0.95°
Rotation Center Displacement φ0.007mm or less
Stage Size 60×60mm
Type of Axis αβ axis
Guide Method Extended Contact Ball Bearing Guide
Primary material SUS440C quench hardened
Finish Electroless nickel　GOHT-60B**B：Super black chrome
Load Capacity 98N(10.0kgf)
Max. Moment Capacity / Pitch 3.0N・m
Max. Moment Capacity / Roll 3.0N・m
Max. Moment Capacity / Yaw 3.0N・m
Moment Stiffness / Roll －
Moment Stiffness / Yaw －
Parallelism 30μm
