HIGH STABILITY UV, VIS, AND IR DIODE LASERS

LDKT

HIGH STABILITY UV, VIS, AND IR DIODE LASERS
In stock
SKU
LDKT
LDKT continuous-wave laser diode modules are designed specifically for high-end Life Science, Research, and OEM applications requiring superior beam quality, ultra-stable wavelengths and consistent output powers. These laser modules are available in a wide range of UV, Visible, and IR wavelengths and have either a round or elliptical beam shape. The LDKT operates with an onboard microprocessor allowing for advanced integration and user control. Wavelength and output power stability is enabled by a precision current source as well as a precision temperature controller which is incorporated into the module. The low operating voltage creates less heat, thereby increasing diode lifetime, stability, and reliability. The mechanical and electrical design of the LDKT laser allows for a cost effective solution without sacrificing performance.
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name Wavelength Range Delivery Price Add to cart
i
655nm Diode Laser, Round Beam, Output Power: 5mW
LDKT-655-5R
655nm
2-3 weeks
$3,266.00
Wavelength 655nm
Color Category Red
Power 5mW
Laser Spot Dimensions at Exit (1/e2) 1.88x1.88mm

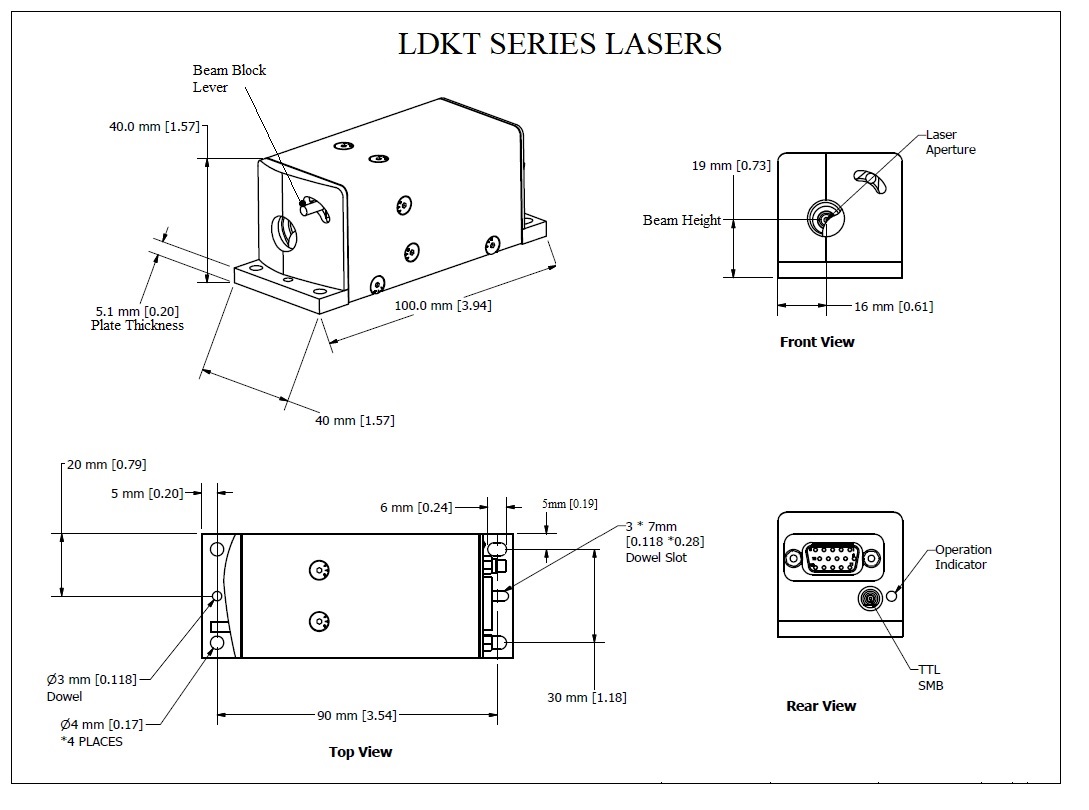

Envelope Dimensions 40x40x100mm
Input Voltage 5VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad

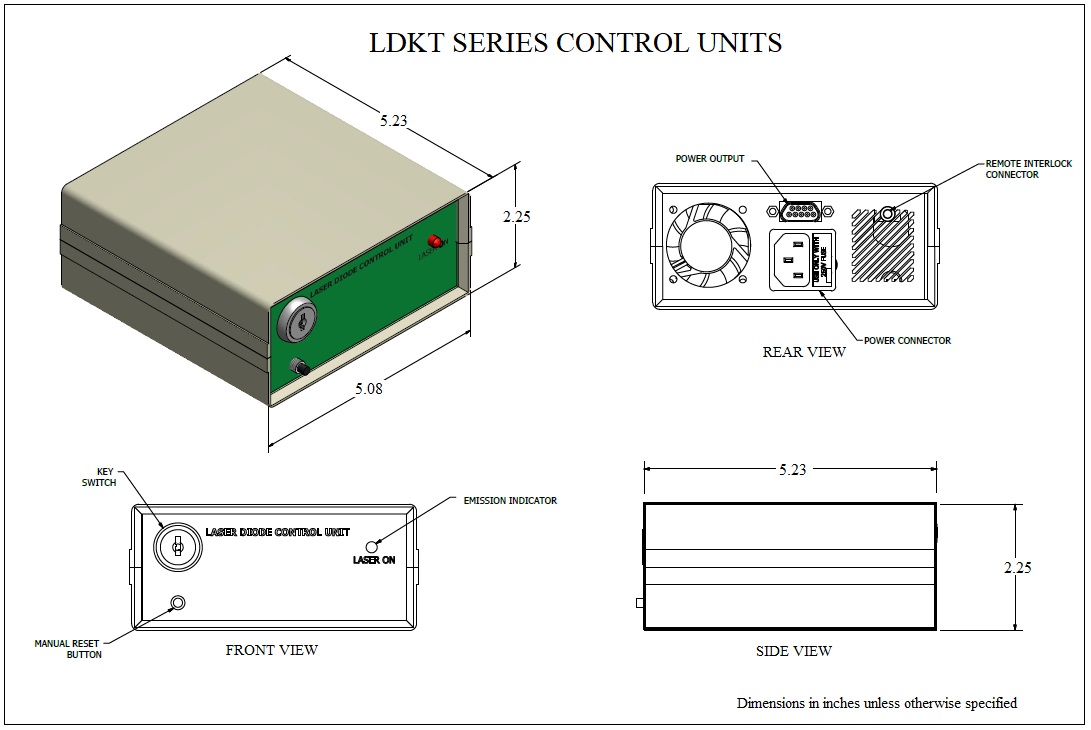

Compatible Controller LDKT-CU-5V
CDRH Laser Safety Classification 3r
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
660nm Diode Laser, Elliptical Beam, Output Power: 115mW
LDKT-660-115E
660nm
2-3 weeks
$3,136.00
Wavelength 660nm
Color Category Red
Power 115mW
Laser Spot Dimensions at Exit (1/e2) 1.98x3.37mm
Envelope Dimensions 40x40x100mm
Input Voltage 5VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-5V
CDRH Laser Safety Classification 3b
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
670nm Diode Laser, Round Beam, Output Power: 5mW
LDKT-670-5R
670nm
2-3 weeks
$3,245.00
Wavelength 670nm
Color Category Red
Power 5mW
Laser Spot Dimensions at Exit (1/e2) 1.78x1.78mm
Envelope Dimensions 40x40x100mm
Input Voltage 5VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-5V
CDRH Laser Safety Classification 3r
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
375nm Diode Laser, Elliptical Beam, Output Power: 75mW
LDKT-375-75E
375nm
2-3 weeks
$11,530.00
Wavelength 375nm
Color Category Ultraviolet
Power 75mW
Laser Spot Dimensions at Exit (1/e2) 0.94x2.36mm
Envelope Dimensions 40x40x100mm
Input Voltage 8VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-8V
CDRH Laser Safety Classification 3b
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
685nm Diode Laser, Elliptical Beam, Output Power: 100mW
LDKT-685-100E
685nm
2-3 weeks
$2,154.00
Wavelength 685nm
Color Category Red
Power 100mW
Laser Spot Dimensions at Exit (1/e2) 1.16x1.80mm
Envelope Dimensions 40x40x100mm
Input Voltage 5VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-5V
CDRH Laser Safety Classification 3b
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
405nm Diode Laser, Elliptical Beam, Output Power: 100mW
LDKT-405-100E
405nm
2-3 weeks
$5,405.00
Wavelength 405nm
Color Category Blue
Power 100mW
Laser Spot Dimensions at Exit (1/e2) 0.94x1.99mm
Envelope Dimensions 40x40x100mm
Input Voltage 8VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-8V
CDRH Laser Safety Classification 3b
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
705nm Diode Laser, Elliptical Beam, Output Power: 5mW
LDKT-705-5E
705nm
2-3 weeks
$4,081.00
Wavelength 705nm
Color Category Red
Power 5mW
Laser Spot Dimensions at Exit (1/e2) 1.78x3.57mm
Envelope Dimensions 40x40x100mm
Input Voltage 5VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-5V
CDRH Laser Safety Classification 3r
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
473nm Diode Laser, Elliptical Beam, Output Power: 90mW
LDKT-473-90E
473nm
2-3 weeks
$10,679.00
Wavelength 473nm
Color Category Blue
Power 90mW
Laser Spot Dimensions at Exit (1/e2) 1.22x3.03mm
Envelope Dimensions 40x40x100mm
Input Voltage 8VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-8V
CDRH Laser Safety Classification 3b
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
785nm Diode Laser, Elliptical Beam, Output Power: 110mW
LDKT-785-110E
785nm
2-3 weeks
$2,999.00
Wavelength 785nm
Color Category Infrared
Power 110mW
Laser Spot Dimensions at Exit (1/e2) 1.78x3.17mm
Envelope Dimensions 40x40x100mm
Input Voltage 5VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-5V
CDRH Laser Safety Classification 3b
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
515nm Diode Laser, Elliptical Beam, Output Power: 5mW
LDKT-515-5E
515nm
2-3 weeks
$3,484.00
Wavelength 515nm
Color Category Green
Power 5mW
Laser Spot Dimensions at Exit (1/e2) 0.73x2.30mm
Envelope Dimensions 40x40x100mm
Input Voltage 8VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-8V
CDRH Laser Safety Classification 3r
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
808nm Diode Laser, Elliptical Beam, Output Power: 130mW
LDKT-808-130E
808nm
2-3 weeks
$3,674.00
Wavelength 808nm
Color Category Infrared
Power 130mW
Laser Spot Dimensions at Exit (1/e2) 1.58x3.17mm
Envelope Dimensions 40x40x100mm
Input Voltage 5VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-5V
CDRH Laser Safety Classification 3b
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
520nm Diode Laser, Elliptical Beam, Output Power: 45mW
LDKT-520-45E
520nm
2-3 weeks
$4,215.00
Wavelength 520nm
Color Category Green
Power 45mW
Laser Spot Dimensions at Exit (1/e2) 0.73x2.30mm
Envelope Dimensions 40x40x100mm
Input Voltage 8VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-8V
CDRH Laser Safety Classification 3b
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
940nm Diode Laser, Elliptical Beam, Output Power: 300mW
LDKT-940-300E
940nm
2-3 weeks
$2,681.00
Wavelength 940nm
Color Category Infrared
Power 300mW
Laser Spot Dimensions at Exit (1/e2) 1.28x3.58mm
Envelope Dimensions 40x40x100mm
Input Voltage 5VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-5V
CDRH Laser Safety Classification 3b
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
635nm Diode Laser, Elliptical Beam, Output Power: 5mW
LDKT-635-5E
635nm
2-3 weeks
$1,933.00
Wavelength 635nm
Color Category Red
Power 5mW
Laser Spot Dimensions at Exit (1/e2) 1.03x4.00mm
Envelope Dimensions 40x40x100mm
Input Voltage 5VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-5V
CDRH Laser Safety Classification 3r
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
1064nm Diode Laser, Elliptical Beam, Output Power: 180mW
LDKT-1064-180E
1064nm
2-3 weeks
$4,398.00
Wavelength 1064nm
Color Category Infrared
Power 180mW
Laser Spot Dimensions at Exit (1/e2) 1.58x5.52mm
Envelope Dimensions 40x40x100mm
Input Voltage 5VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-5V
CDRH Laser Safety Classification 3b
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
635nm Diode Laser, Round Beam, Output Power: 13mW
LDKT-635-13R
635nm
2-3 weeks
$3,983.00
Wavelength 635nm
Color Category Red
Power 13mW
Laser Spot Dimensions at Exit (1/e2) 1.60x1.60mm
Envelope Dimensions 40x40x100mm
Input Voltage 5VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-5V
CDRH Laser Safety Classification 3b
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
1550nm Diode Laser, Elliptical Beam, Output Power: 5mW
LDKT-1550-5E
1550nm
2-3 weeks
$3,454.00
Wavelength 1550nm
Color Category Infrared
Power 5mW
Laser Spot Dimensions at Exit (1/e2) 4.88x5.85mm
Envelope Dimensions 40x40x100mm
Input Voltage 5VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-5V
CDRH Laser Safety Classification 3r
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
639nm Diode Laser, Elliptical Beam, Output Power: 180mW
LDKT-639-180E
639nm
2-3 weeks
$3,596.00
Wavelength 639nm
Color Category Red
Power 180mW
Laser Spot Dimensions at Exit (1/e2) 1.69x2.78mm
Envelope Dimensions 40x40x100mm
Input Voltage 5VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-5V
CDRH Laser Safety Classification 3b
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
658nm Diode Laser, Elliptical Beam, Output Power: 40mW
LDKT-658-40E
658nm
2-3 weeks
$3,335.00
Wavelength 658nm
Color Category Red
Power 40mW
Laser Spot Dimensions at Exit (1/e2) 1.60x4.36mm
Envelope Dimensions 40x40x100mm
Input Voltage 5VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-5V
CDRH Laser Safety Classification 3b
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
660nm Diode Laser, Round Beam, Output Power: 115mW
LDKT-660-115R
660nm
2-3 weeks
$3,911.00
Wavelength 660nm
Color Category Red
Power 115mW
Laser Spot Dimensions at Exit (1/e2) 1.98x1.98mm
Envelope Dimensions 40x40x100mm
Input Voltage 5VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-5V
CDRH Laser Safety Classification 3b
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
670nm Diode Laser, Elliptical Beam, Output Power: 10mW
LDKT-670-10E
670nm
2-3 weeks
$2,034.00
Wavelength 670nm
Color Category Red
Power 10mW
Laser Spot Dimensions at Exit (1/e2) 1.60x4.36mm
Envelope Dimensions 40x40x100mm
Input Voltage 5VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-5V
CDRH Laser Safety Classification 3b
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
395nm Diode Laser, Elliptical Beam, Output Power: 350mW
LDKT-395-350E
395nm
2-3 weeks
$7,029.00
Wavelength 395nm
Color Category Ultraviolet
Power 350mW
Laser Spot Dimensions at Exit (1/e2) 1.41x5.16mm
Envelope Dimensions 40x40x100mm
Input Voltage 8VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-8V
CDRH Laser Safety Classification 3b
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
690nm Diode Laser, Elliptical Beam, Output Power: 35mW
LDKT-690-35E
690nm
2-3 weeks
$3,204.00
Wavelength 690nm
Color Category Red
Power 35mW
Laser Spot Dimensions at Exit (1/e2) 1.69x3.77mm
Envelope Dimensions 40x40x100mm
Input Voltage 5VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-5V
CDRH Laser Safety Classification 3b
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
450nm Diode Laser, Elliptical Beam, Output Power: 5mW
LDKT-450-5E
450nm
2-3 weeks
$4,638.00
Wavelength 450nm
Color Category Blue
Power 5mW
Laser Spot Dimensions at Exit (1/e2) 0.78x2.25mm
Envelope Dimensions 40x40x100mm
Input Voltage 8VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-8V
CDRH Laser Safety Classification 3r
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
705nm Diode Laser, Elliptical Beam, Output Power: 35mW
LDKT-705-35E
705nm
2-3 weeks
$4,081.00
Wavelength 705nm
Color Category Red
Power 35mW
Laser Spot Dimensions at Exit (1/e2) 1.78x3.57mm
Envelope Dimensions 40x40x100mm
Input Voltage 5VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-5V
CDRH Laser Safety Classification 3b
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
488nm Diode Laser, Elliptical Beam, Output Power: 50mW
LDKT-488-50E
488nm
2-3 weeks
$6,671.00
Wavelength 488nm
Color Category Blue
Power 50mW
Laser Spot Dimensions at Exit (1/e2) 0.73x2.40mm
Envelope Dimensions 40x40x100mm
Input Voltage 8VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-8V
CDRH Laser Safety Classification 3b
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
785nm Diode Laser, Round Beam, Output Power: 110mW
LDKT-785-110R
785nm
2-3 weeks
$3,962.00
Wavelength 785nm
Color Category Infrared
Power 110mW
Laser Spot Dimensions at Exit (1/e2) 1.78x1.78mm
Envelope Dimensions 40x40x100mm
Input Voltage 5VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-5V
CDRH Laser Safety Classification 3b
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
515nm Diode Laser, Elliptical Beam, Output Power: 25mW
LDKT-515-25E
515nm
2-3 weeks
$5,988.00
Wavelength 515nm
Color Category Green
Power 25mW
Laser Spot Dimensions at Exit (1/e2) 0.73x2.30mm
Envelope Dimensions 40x40x100mm
Input Voltage 8VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-8V
CDRH Laser Safety Classification 3b
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
830nm Diode Laser, Elliptical Beam, Output Power: 190mW
LDKT-830-190E
830nm
2-3 weeks
$2,246.00
Wavelength 830nm
Color Category Infrared
Power 190mW
Laser Spot Dimensions at Exit (1/e2) 1.78x3.56mm
Envelope Dimensions 40x40x100mm
Input Voltage 5VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-5V
CDRH Laser Safety Classification 3b
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
520nm Diode Laser, Elliptical Beam, Output Power: 75mW
LDKT-520-75E
520nm
2-3 weeks
$4,139.00
Wavelength 520nm
Color Category Green
Power 75mW
Laser Spot Dimensions at Exit (1/e2) 1.25x4.47mm
Envelope Dimensions 40x40x100mm
Input Voltage 8VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-8V
CDRH Laser Safety Classification 3b
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
980nm Diode Laser, Elliptical Beam, Output Power: 5mW
LDKT-980-5E
980nm
2-3 weeks
$2,700.00
Wavelength 980nm
Color Category Infrared
Power 5mW
Laser Spot Dimensions at Exit (1/e2) 1.76x5.90mm
Envelope Dimensions 40x40x100mm
Input Voltage 5VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-5V
CDRH Laser Safety Classification 3r
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
635nm Diode Laser, Round Beam, Output Power: 5mW
LDKT-635-5R
635nm
2-3 weeks
$3,284.00
Wavelength 635nm
Color Category Red
Power 5mW
Laser Spot Dimensions at Exit (1/e2) 1.60x1.60mm
Envelope Dimensions 40x40x100mm
Input Voltage 5VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-5V
CDRH Laser Safety Classification 3r
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
1064nm Diode Laser, Elliptical Beam, Output Power: 270mW
LDKT-1064-270E
1064nm
2-3 weeks
$4,678.00
Wavelength 1064nm
Color Category Infrared
Power 270mW
Laser Spot Dimensions at Exit (1/e2) 1.58x5.52mm
Envelope Dimensions 40x40x100mm
Input Voltage 5VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-5V
CDRH Laser Safety Classification 3b
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
639nm Diode Laser, Elliptical Beam, Output Power: 30mW
LDKT-639-30E
639nm
2-3 weeks
$3,622.00
Wavelength 639nm
Color Category Red
Power 30mW
Laser Spot Dimensions at Exit (1/e2) 1.98x5.9mm
Envelope Dimensions 40x40x100mm
Input Voltage 5VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-5V
CDRH Laser Safety Classification 3b
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
Controller for LDKT-series Diode Lasers, 5V
LDKT-CU-5V
2-3 weeks
$482.00
i
655nm Diode Laser, Elliptical Beam, Output Power: 5mW
LDKT-655-5E
655nm
2-3 weeks
$2,987.00
Wavelength 655nm
Color Category Red
Power 5mW
Laser Spot Dimensions at Exit (1/e2) 1.60x5.56mm
Envelope Dimensions 40x40x100mm
Input Voltage 5VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-5V
CDRH Laser Safety Classification 3r
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
658nm Diode Laser, Round Beam, Output Power: 40mW
LDKT-658-40R
658nm
2-3 weeks
$3,932.00
Wavelength 658nm
Color Category Red
Power 40mW
Laser Spot Dimensions at Exit (1/e2) 1.98x1.98mm
Envelope Dimensions 40x40x100mm
Input Voltage 5VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-5V
CDRH Laser Safety Classification 3b
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
670nm Diode Laser, Elliptical Beam, Output Power: 5mW
LDKT-670-5E
670nm
2-3 weeks
$2,034.00
Wavelength 670nm
Color Category Red
Power 5mW
Laser Spot Dimensions at Exit (1/e2) 1.60x4.36mm
Envelope Dimensions 40x40x100mm
Input Voltage 5VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-5V
CDRH Laser Safety Classification 3r
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
670nm Diode Laser, Round Beam, Output Power: 10mW
LDKT-670-10R
670nm
2-3 weeks
$3,404.00
Wavelength 670nm
Color Category Red
Power 10mW
Laser Spot Dimensions at Exit (1/e2) 1.60x1.60mm
Envelope Dimensions 40x40x100mm
Input Voltage 5VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-5V
CDRH Laser Safety Classification 3b
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
405nm Diode Laser, Elliptical Beam, Output Power: 5mW
LDKT-405-5E
405nm
2-3 weeks
$3,263.00
Wavelength 405nm
Color Category Blue
Power 5mW
Laser Spot Dimensions at Exit (1/e2) 0.84x2.20mm
Envelope Dimensions 40x40x100mm
Input Voltage 8VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-8V
CDRH Laser Safety Classification 3r
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
690nm Diode Laser, Round Beam, Output Power: 35mW
LDKT-690-35R
690nm
2-3 weeks
$3,505.00
Wavelength 690nm
Color Category Red
Power 35mW
Laser Spot Dimensions at Exit (1/e2) 1.60x1.60mm
Envelope Dimensions 40x40x100mm
Input Voltage 5VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-5V
CDRH Laser Safety Classification 3b
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
450nm Diode Laser, Elliptical Beam, Output Power: 75mW
LDKT-450-75E
450nm
2-3 weeks
$7,669.00
Wavelength 450nm
Color Category Blue
Power 75mW
Laser Spot Dimensions at Exit (1/e2) 0.78x2.25mm
Envelope Dimensions 40x40x100mm
Input Voltage 8VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-8V
CDRH Laser Safety Classification 3b
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
785nm Diode Laser, Elliptical Beam, Output Power: 5mW
LDKT-785-5E
785nm
2-3 weeks
$2,096.00
Wavelength 785nm
Color Category Infrared
Power 5mW
Laser Spot Dimensions at Exit (1/e2) 1.16x2.82mm
Envelope Dimensions 40x40x100mm
Input Voltage 5VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-5V
CDRH Laser Safety Classification 3r
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
488nm Diode Laser, Elliptical Beam, Output Power: 150mW
LDKT-488-150E
488nm
2-3 weeks
$17,483.00
Wavelength 488nm
Color Category Blue
Power 150mW
Laser Spot Dimensions at Exit (1/e2) 0.89x2.46mm
Envelope Dimensions 40x40x100mm
Input Voltage 8VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-8V
CDRH Laser Safety Classification 3b
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
785nm Diode Laser, Elliptical Beam, Output Power: 150mW
LDKT-785-150E
785nm
2-3 weeks
$3,823.00
Wavelength 785nm
Color Category Infrared
Power 150mW
Laser Spot Dimensions at Exit (1/e2) 1.03x3.21mm
Envelope Dimensions 40x40x100mm
Input Voltage 5VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-5V
CDRH Laser Safety Classification 3b
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
520nm Diode Laser, Elliptical Beam, Output Power: 5mW
LDKT-520-5E
520nm
2-3 weeks
$3,543.00
Wavelength 520nm
Color Category Green
Power 5mW
Laser Spot Dimensions at Exit (1/e2) 0.73x2.30mm
Envelope Dimensions 40x40x100mm
Input Voltage 8VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-8V
CDRH Laser Safety Classification 3r
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
905nm Diode Laser, Elliptical Beam, Output Power: 200mW
LDKT-905-200E
905nm
2-3 weeks
$2,942.00
Wavelength 905nm
Color Category Infrared
Power 200mW
Laser Spot Dimensions at Exit (1/e2) 1.77x3.55mm
Envelope Dimensions 40x40x100mm
Input Voltage 5VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-5V
CDRH Laser Safety Classification 3b
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
520nm Diode Laser, Elliptical Beam, Output Power: 120mW
LDKT-520-120E
520nm
2-3 weeks
$3,115.00
Wavelength 520nm
Color Category Green
Power 120mW
Laser Spot Dimensions at Exit (1/e2) 1.60x4.38mm
Envelope Dimensions 40x40x100mm
Input Voltage 8VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-8V
CDRH Laser Safety Classification 3b
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
980nm Diode Laser, Elliptical Beam, Output Power: 45mW
LDKT-980-45E
980nm
2-3 weeks
$3,674.00
Wavelength 980nm
Color Category Infrared
Power 45mW
Laser Spot Dimensions at Exit (1/e2) 1.76x5.90mm
Envelope Dimensions 40x40x100mm
Input Voltage 5VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-5V
CDRH Laser Safety Classification 3b
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
635nm Diode Laser, Elliptical Beam, Output Power: 13mW
LDKT-635-13E
635nm
2-3 weeks
$3,241.00
Wavelength 635nm
Color Category Red
Power 13mW
Laser Spot Dimensions at Exit (1/e2) 1.60x5.90mm
Envelope Dimensions 40x40x100mm
Input Voltage 5VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-5V
CDRH Laser Safety Classification 3b
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
1310nm Diode Laser, Elliptical Beam, Output Power: 5mW
LDKT-1310-5E
1310nm
2-3 weeks
$3,335.00
Wavelength 1310nm
Color Category Infrared
Power 5mW
Laser Spot Dimensions at Exit (1/e2) 4.88x5.88mm
Envelope Dimensions 40x40x100mm
Input Voltage 5VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-5V
CDRH Laser Safety Classification 3r
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
639nm Diode Laser, Round Beam, Output Power: 30mW
LDKT-639-30R
639nm
2-3 weeks
$3,970.00
Wavelength 639nm
Color Category Red
Power 30mW
Laser Spot Dimensions at Exit (1/e2) 1.60x1.60mm
Envelope Dimensions 40x40x100mm
Input Voltage 5VDC
Power Stability in APC Mode 1%
Beam Pointing Stability <5uRad/C Deg.
Polarization Linear, >100:1 Ratio at Max. Power
Collimated Beam Divergence <1mrad
Compatible Controller LDKT-CU-5V
CDRH Laser Safety Classification 3b
Contents of Box Laser, Focus Adjustment Tool, DB15 Pigtail Cable
i
Controller for LDKT-series Diode Lasers, 8V
LDKT-CU-8V
2-3 weeks
$482.00

You must be logged in to ask questions

We detect that you are accessing the website from a different region. You will be redirected to a local version of OptoSigma.

Your requested the page :

AMERICA

Redirection to :
