CYLINDRICAL UV, VIS AND IR DIODE LASERS WITH USB INTERFACE

LDUS-R

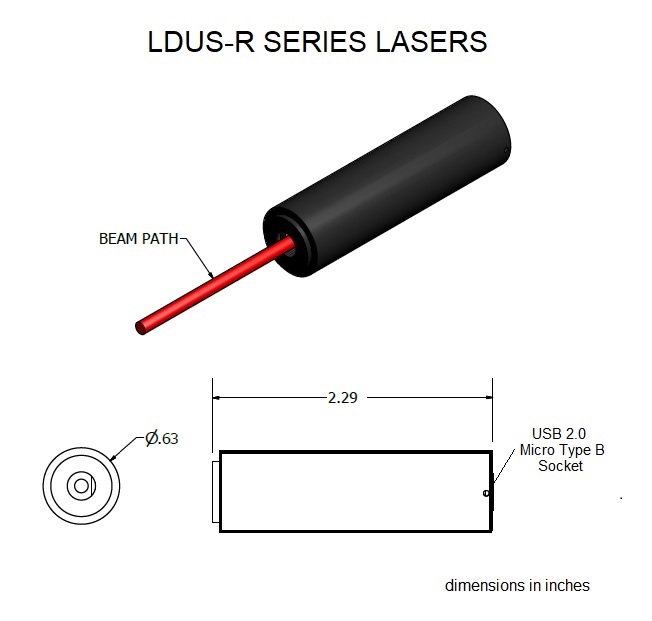

CYLINDRICAL UV, VIS AND IR DIODE LASERS WITH USB INTERFACE
In stock
SKU
LDUS-R
LDUS-R continuous-wave laser diode modules are designed for Research and OEM applications needing high beam quality and compact size. LDUS-R laser modules are only 0.63 inches in diamter and exceptionally easy to use due to their standard USB interface. These laser modules are available in a wide range of UV, Visible, and IR wavelengths and have either a round or elliptical beam shape. The LDUS-R is powered and controlled through its USB interface. Connecting via USB Micro Type B, the LDUS-R will work with modern USB 2.0 connections (or later standards). USB 1.0 will provide enough power for most LDUS-R lasers, however, the green, blue and violet lasers need a USB 2.0 connection. All models offer stable adjustable output power which can be operated through a downloadable graphical user interface.
Add to Wish List
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name Wavelength Range Delivery Price Add to cart
i
635nm Diode Laser, Cylindrical Body, Round Beam, Output Power: 4.5mW
LDUS-635-4.5R-R 		635nm
2-3 weeks
$1,231.00
Wavelength 635nm
Power 4.5mW
Laser Spot Dimensions at Exit (1/e2) 1.03x1.03mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3r
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
655nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 5mW
LDUS-655-5E-R 		655nm
2-3 weeks
$934.00
Wavelength 655nm
Power 5mW
Laser Spot Dimensions at Exit (1/e2) 1.03x3.61mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3r
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
658nm Diode Laser, Cylindrical Body, Round Beam, Output Power: 40mW
LDUS-658-40R-R 		658nm
2-3 weeks
$1,880.00
Wavelength 658nm
Power 40mW
Laser Spot Dimensions at Exit (1/e2) 1.29x1.29mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
670nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 5mW
LDUS-670-5E-R 		670nm
2-3 weeks
$1,134.00
Wavelength 670nm
Power 5mW
Laser Spot Dimensions at Exit (1/e2) 1.03x2.84mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3r
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
670nm Diode Laser, Cylindrical Body, Round Beam, Output Power: 9mW
LDUS-670-9R-R 		670nm
2-3 weeks
$1,351.00
Wavelength 670nm
Power 9mW
Laser Spot Dimensions at Exit (1/e2) 1.03x1.03mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3r
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
690nm Diode Laser, Cylindrical Body, Round Beam, Output Power: 31mW
LDUS-690-31R-R 		690nm
2-3 weeks
$1,452.00
Wavelength 690nm
Power 31mW
Laser Spot Dimensions at Exit (1/e2) 1.03x1.03mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
785nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 5mW
LDUS-785-5E-R 		785nm
2-3 weeks
$996.00
Wavelength 785nm
Power 5mW
Laser Spot Dimensions at Exit (1/e2) 1.16x2.82mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
785nm Diode Laser, Cylindrical Body, Round Beam, Output Power: 110mW
LDUS-785-110R-R 		785nm
2-3 weeks
$1,909.00
Wavelength 785nm
Power 110mW
Laser Spot Dimensions at Exit (1/e2) 1.16x1.16mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
830nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 190mW
LDUS-830-190E-R 		830nm
2-3 weeks
$1,346.00
Wavelength 830nm
Power 190mW
Laser Spot Dimensions at Exit (1/e2) 1.78x3.56mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
405nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 5mW
LDUS-405-5E-R 		405nm
2-3 weeks
$1,210.00
Wavelength 405nm
Power 5mW
Laser Spot Dimensions at Exit (1/e2) 0.84x2.20mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3r
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail, Universal AC-DC Wall Transformer
i
980nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 5mW
LDUS-980-5E-R 		980nm
2-3 weeks
$1,085.00
Wavelength 980nm
Power 5mW
Laser Spot Dimensions at Exit (1/e2) 2.76x5.90mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
515nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 25mW
LDUS-515-25E-R 		515nm
2-3 weeks
$1,431.00
Wavelength 515nm
Power 25mW
Laser Spot Dimensions at Exit (1/e2) 0.73x2.30mm
Body Style Cylindrical, ?0.625in.
USB Power USB 2.x only
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
1310nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 5mW
LDUS-1310-5E-R 		1310nm
2-3 weeks
$1,282.00
Wavelength 1310nm
Power 5mW
Laser Spot Dimensions at Exit (1/e2) 4.90x5.88mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
635nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 15mW
LDUS-635-15E-R 		635nm
2-3 weeks
$1,342.00
Wavelength 635nm
Power 15mW
Laser Spot Dimensions at Exit (1/e2) 1.03x3.87mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
655nm Diode Laser, Cylindrical Body, Round Beam, Output Power: 5mW
LDUS-655-5R-R 		655nm
2-3 weeks
$1,213.00
Wavelength 655nm
Power 5mW
Laser Spot Dimensions at Exit (1/e2) 1.23x1.23mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3r
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
660nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 115mW
LDUS-660-115E-R 		660nm
2-3 weeks
$1,471.00
Wavelength 660nm
Power 115mW
Laser Spot Dimensions at Exit (1/e2) 1.29x2.19mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
670nm Diode Laser, Cylindrical Body, Round Beam, Output Power: 5mW
LDUS-670-5R-R 		670nm
2-3 weeks
$1,192.00
Wavelength 670nm
Power 5mW
Laser Spot Dimensions at Exit (1/e2) 1.16x1.16mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3r
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
685nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 90mW
LDUS-685-90E-R 		685nm
2-3 weeks
$1,453.00
Wavelength 685nm
Power 90mW
Laser Spot Dimensions at Exit (1/e2) 1.16x1.80mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
705nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 5mW
LDUS-705-5E-R 		705nm
2-3 weeks
$2,027.00
Wavelength 705nm
Power 5mW
Laser Spot Dimensions at Exit (1/e2) 1.16x2.32mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
785nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 50mW
LDUS-785-50E-R 		785nm
2-3 weeks
$1,134.00
Wavelength 785nm
Power 50mW
Laser Spot Dimensions at Exit (1/e2) 1.16x2.06mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
785nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 150mW
LDUS-785-150E-R 		785nm
2-3 weeks
$1,769.00
Wavelength 785nm
Power 150mW
Laser Spot Dimensions at Exit (1/e2) mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
905nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 200mW
LDUS-905-200E-R 		905nm
2-3 weeks
$2,041.00
Wavelength 905nm
Power 200mW
Laser Spot Dimensions at Exit (1/e2) 1.77x3.55mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
450nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 5mW
LDUS-450-5E-R 		450nm
2-3 weeks
$2,586.00
Wavelength 450nm
Power 5mW
Laser Spot Dimensions at Exit (1/e2) 0.78x2.25mm
Body Style Cylindrical, ?0.625in.
USB Power USB 2.x only
CDRH Laser Safety Classification 3r
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail, Universal AC-DC Wall Transformer
i
980nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 45mW
LDUS-980-45E-R 		980nm
2-3 weeks
$1,085.00
Wavelength 980nm
Power 45mW
Laser Spot Dimensions at Exit (1/e2) 2.76x5.90mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
635nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 4.5mW
LDUS-635-4.5E-R 		635nm
2-3 weeks
$1,097.00
Wavelength 635nm
Power 4.5mW
Laser Spot Dimensions at Exit (1/e2) mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3r
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
1550nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 5mW
LDUS-1550-5E-R 		1550nm
2-3 weeks
$1,402.00
Wavelength 1550nm
Power 5mW
Laser Spot Dimensions at Exit (1/e2) 4.88x5.85mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
635nm Diode Laser, Cylindrical Body, Round Beam, Output Power: 15mW
LDUS-635-15R-R 		635nm
2-3 weeks
$1,930.00
Wavelength 635nm
Power 15mW
Laser Spot Dimensions at Exit (1/e2) 1.03x1.03mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
658nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 40mW
LDUS-658-40E-R 		658nm
2-3 weeks
$1,282.00
Wavelength 658nm
Power 40mW
Laser Spot Dimensions at Exit (1/e2) 1.03x2.84mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
660nm Diode Laser, Cylindrical Body, Round Beam, Output Power: 115mW
LDUS-660-115R-R 		660nm
2-3 weeks
$1,859.00
Wavelength 660nm
Power 115mW
Laser Spot Dimensions at Exit (1/e2) 1.29x1.29mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
670nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 9mW
LDUS-670-9E-R 		670nm
2-3 weeks
$1,134.00
Wavelength 670nm
Power 9mW
Laser Spot Dimensions at Exit (1/e2) 1.03x2.84mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3r
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
690nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 31mW
LDUS-690-31E-R 		690nm
2-3 weeks
$1,150.00
Wavelength 690nm
Power 31mW
Laser Spot Dimensions at Exit (1/e2) 1.10x2.45mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
705nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 35mW
LDUS-705-35E-R 		705nm
2-3 weeks
$2,027.00
Wavelength 705nm
Power 35mW
Laser Spot Dimensions at Exit (1/e2) 1.16x2.32mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
785nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 110mW
LDUS-785-110E-R 		785nm
2-3 weeks
$1,134.00
Wavelength 785nm
Power 110mW
Laser Spot Dimensions at Exit (1/e2) 1.16x2.06mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
808nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 130mW
LDUS-808-130E-R 		808nm
2-3 weeks
$1,561.00
Wavelength 808nm
Power 130mW
Laser Spot Dimensions at Exit (1/e2) 1.03x2.06mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
940nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 300mW
LDUS-940-300E-R 		940nm
2-3 weeks
$1,780.00
Wavelength 940nm
Power 300mW
Laser Spot Dimensions at Exit (1/e2) 1.28x3.58mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
515nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 5mW
LDUS-515-5E-R 		515nm
2-3 weeks
$1,431.00
Wavelength 515nm
Power 5mW
Laser Spot Dimensions at Exit (1/e2) 0.73x2.30mm
Body Style Cylindrical, ?0.625in.
USB Power USB 2.x only
CDRH Laser Safety Classification 3r
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
1064nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 100mW
LDUS-1064-100E-R 		1064nm
2-3 weeks
$2,345.00
Wavelength 1064nm
Power 100mW
Laser Spot Dimensions at Exit (1/e2) 1.58x5.52mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer

You must be logged in to ask questions

We detect that you are accessing the website from a different region. You will be redirected to a local version of OptoSigma.

Your requested the page :

AMERICA

Redirection to :
