Beam Dumps

BD

Beam Dumps
In stock
SKU
BD
Beam Dumps safely terminate the beam of high-power lasers and high energy pulse lasers. The laser light is scattered and absorbed in the beam dump and converted into heat.
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name Delivery Price Add to cart
i

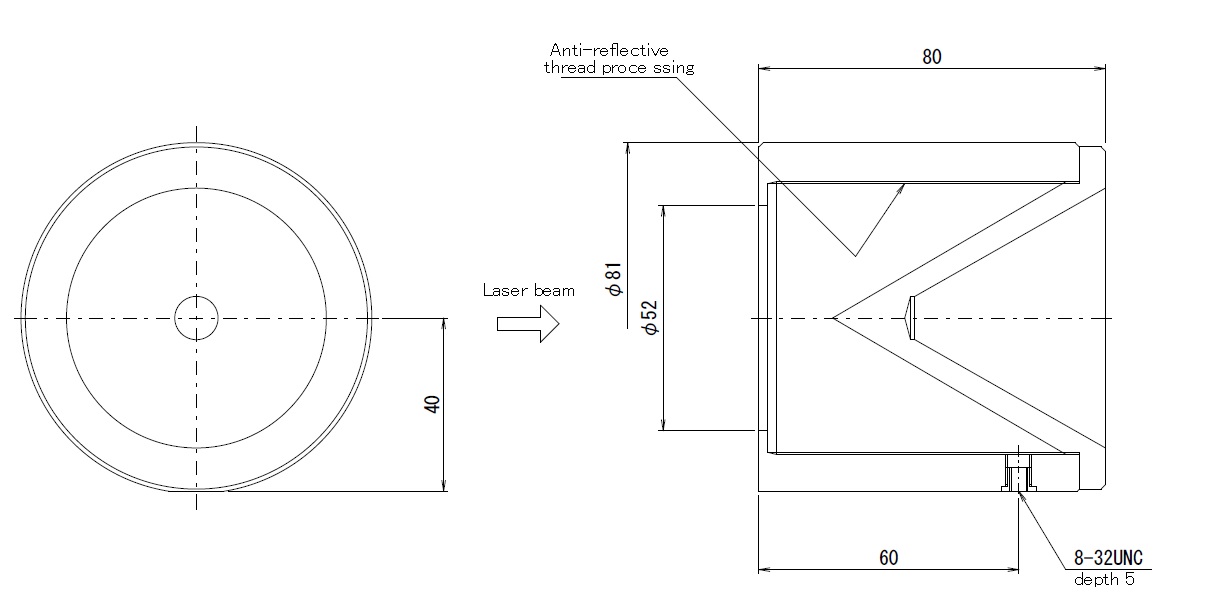

Beam Dump 80mm Diameter with 8-32UNC Thread
BD-80-UU
in stock
$262.00
Aperture Diameter φ52mm
i

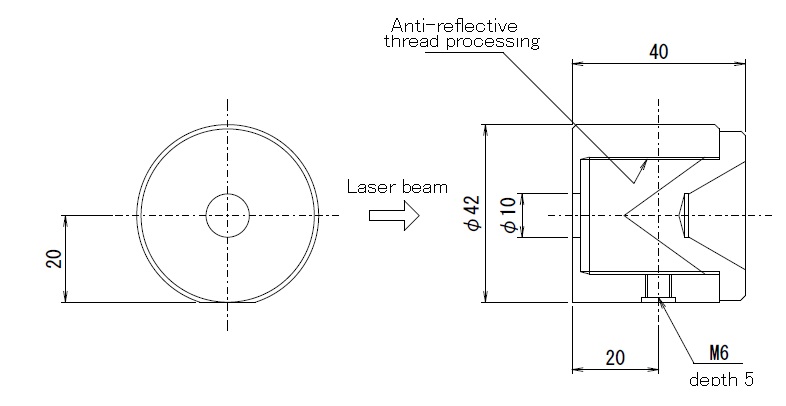

Beam Dump 40mm Diameter with M6 Thread
BD-40-N
2 weeks
$208.00
Aperture Diameter φ10mm
i

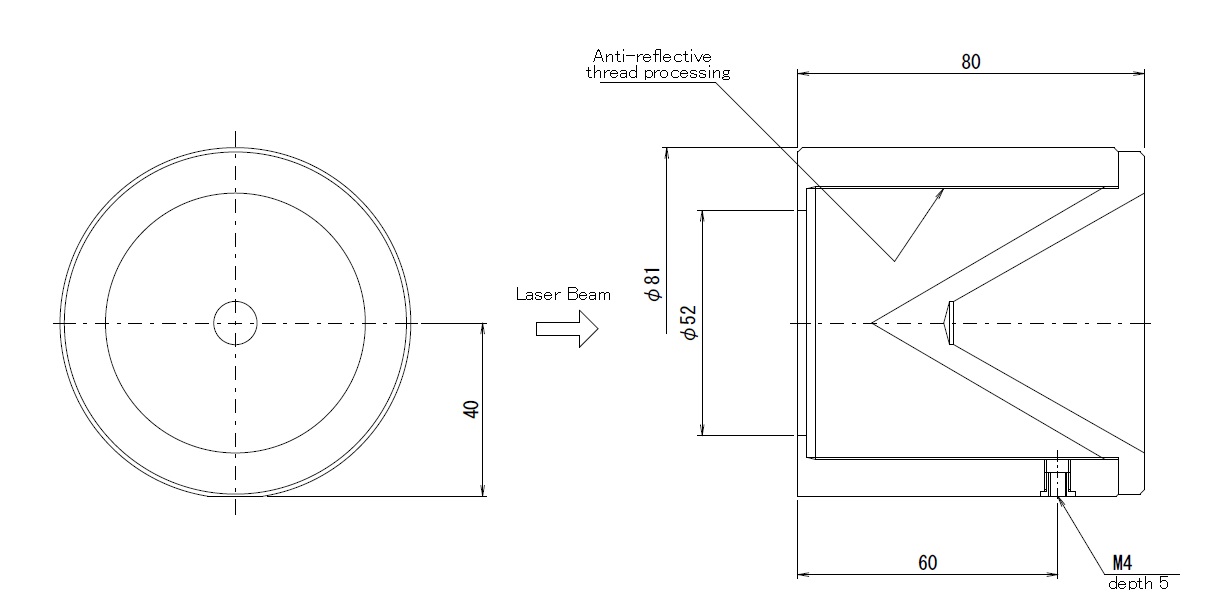

Beam Dump 80mm Diameter with M4 Thread
BD-80-EE
6-12 weeks
$262.00
Aperture Diameter φ52mm
i
Beam Dump 40mm Diameter with Post
BD-40
2 weeks
$218.00
Aperture Diameter φ10mm
i

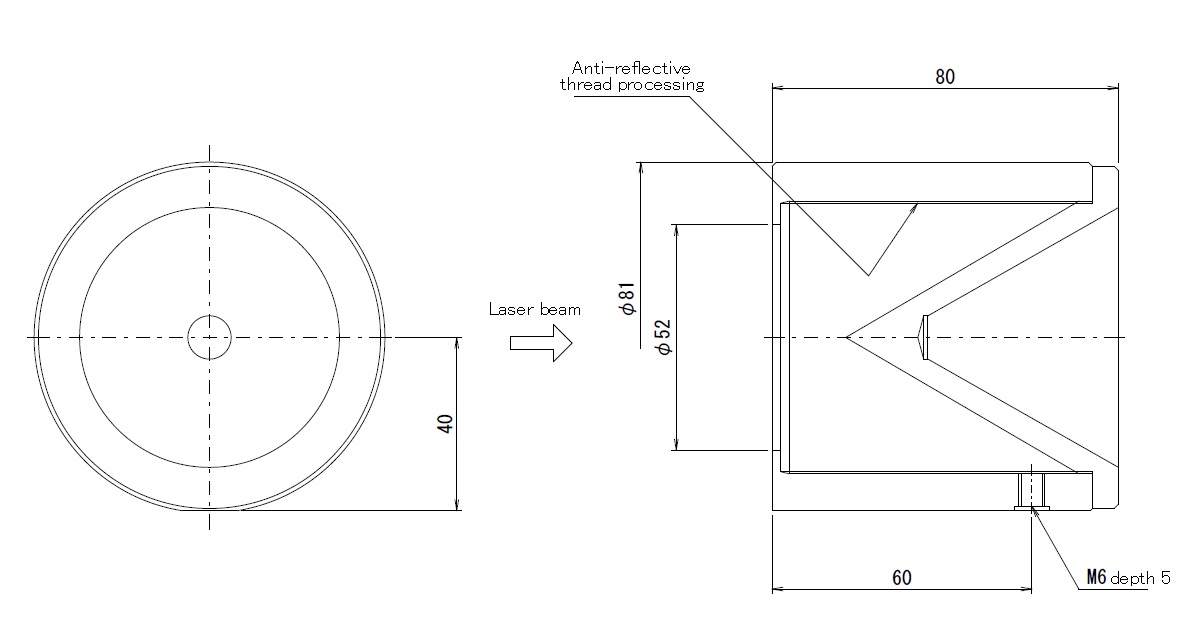

Beam Dump 80mm Diameter with M6 Thread
BD-80-N
2 weeks
$262.00
Aperture Diameter φ52mm
i

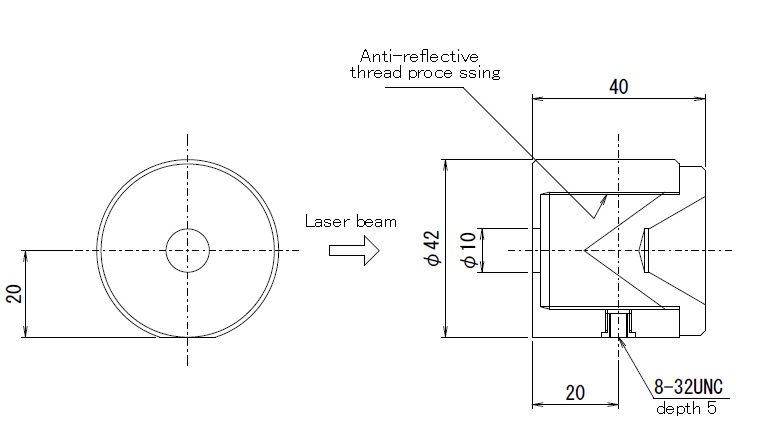

Beam Dump 40mm Diameter with 8-32UNC Thread
BD-40-UU
in stock
$208.00
Aperture Diameter φ10mm
i
Beam Dump 80mm Diameter with Post
BD-80
2 weeks
$274.00
Aperture Diameter φ52mm
i

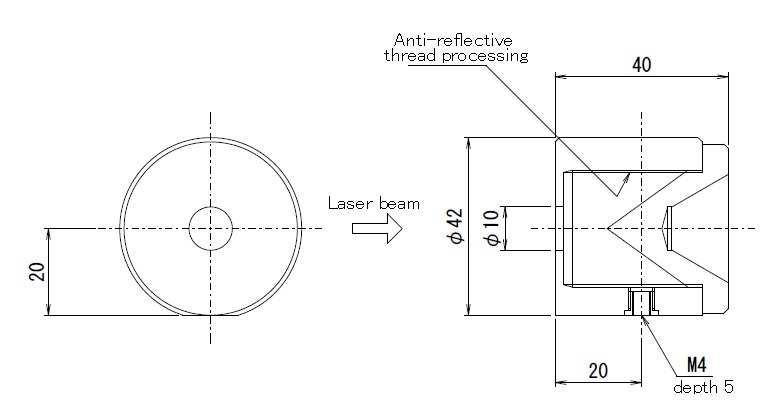

Beam Dump 40mm Diameter with M4 Thread
BD-40-EE
6-12 weeks
$208.00
Aperture Diameter φ10mm

You must be logged in to ask questions

◦Because the incident laser beam is scattered onto a conical surface, the light scatter back to the incident side can be greatly attenuated.
◦BD-40 for small beam diameter (φ5mm or less) and BD-80 for large diameter beams (φ30mm or less) are available.
