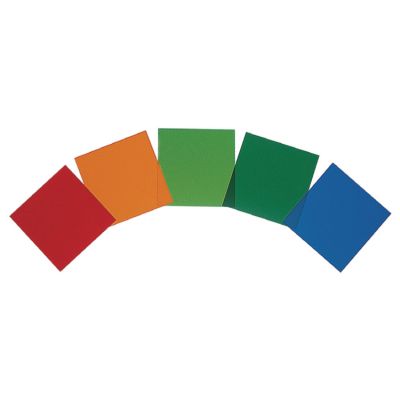

Laser Safety Windows (Acrylic Resin)

YL-500P-Y1(17)

Skip to the beginning of the images gallery

Protect eyes from accidental exposure to scattered lasers. Appropriate for use in enclosures or laser machine windows.

◦Designed for safety and adjustments.
◦High optical density blocks lasers.
◦Can be applied to partial windows, inset windows or partitions in laser controlled areas.
◦Effective safety measure to prevent potential injuries from unexpected visitors.

More Information

More Information
Name	Laser Safety Windows (Acrylic Resin)
Weight	1.2000kgs
Standard Coatings Available	No
Guide	Contact us for custom sizes or shapes. Replace laser safety windows periodically.
Attention	Do not use with incompatible lasers or wavelengths (even if laser are same, wavelengths can be different). Do not use if damaged or has already been exposed to laser energy. Do not irradiate the laser beam directly at laser safety windows because it may damage them. Do not directly look into the laser beam through laser safety windows.
Image Label	Laser Safety Windows (Acrylic Resin)
Length	500×600mm
Wavelength Range	900 - 1200nm
Compatible Laser	YAG
Wavelength	900 -1200nm
Optical Density	5＜
Color	Green
Visible Light Transmittance	25%
Length	500×600mm
Thickness t	3.5mm

In stock

SKU

YL-500P-Y1(17)

$1,122.00

Protect eyes from accidental exposure to scattered lasers. Appropriate for use in enclosures or laser machine windows.

Laser Safety Windows (Acrylic Resin)

Resources & Downloads
