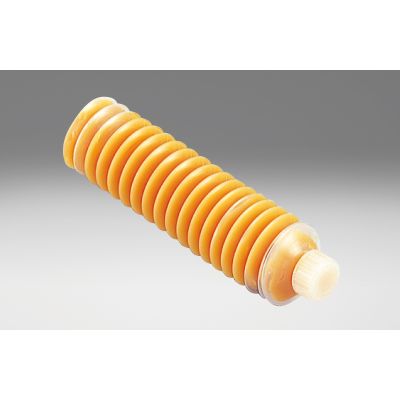

Grease
AFB
To maintain smooth operation, grease should be inspected and checked periodically and grease replaced if necessary. Regular grease maintenance will prevent rust and extend product life cycle significantly.
Effect of Grease
Minimizes friction to enable smooth drive.
Grease maintenance procedure
① Wipe off old grease.
② Apply new grease.
③ Move the stage over the full range several times to distribute grease thoroughly.
④ Wipe off excess grease from step ③.
* Too much grease will cause dust to adhere.
Minimizes friction to enable smooth drive.
Grease maintenance procedure
① Wipe off old grease.
② Apply new grease.
③ Move the stage over the full range several times to distribute grease thoroughly.
④ Wipe off excess grease from step ③.
* Too much grease will cause dust to adhere.
| Name | Grease |
|---|---|
| Weight | 0.5700kgs |
| Guide | Stages can be returned to OptoSigma for maintenance. Contact our Sales Division for more information. |
| Attention |
|
| Motorized Stages Used | OSMS33 Sereis |
| Manufacturer | THK CO., LTD. |
| Operating Temperature Range | -45 - +100℃ |
In stock
SKU
AFB
$7.80
Customize product
To maintain smooth operation, grease should be inspected and checked periodically and grease replaced if necessary. Regular grease maintenance will prevent rust and extend product life cycle significantly.
