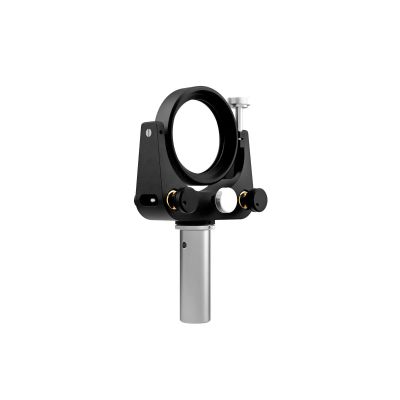

Gimballed Beamsplitter Holder

BHAN-50S

The frame of these mounts are narrow to accommodate a greater clear aperture at 45 degrees incident. The transmitted beam diameter is just about he same as the reflected beam diameter. Appropriate for beam branching optical systems or Michelson interferometers.
◦BHAN-S functions the same as MHAN.
More Information
Name Gimballed Beamsplitter Holder
Weight 0.1500kgs
Guide
  • The RO-20-60 post (diameter φ20mm, length 60mm) is included but it can be replaced with other sizes. Special tools are required to remove the post. Different sized post can be specified at the time of purchase.
Attention
  • Resin rings are sold separately and are recommended.
  • BHAN uses retaining rings unique to this mount. Contact the Sales Division for replacements..
  • The mount will have some backlash if a large wedged beamsplitter is used. Wedges work better when they are secured on their edges. Kinematic mirror holders (MHG-NL) are recommended for circular wedges.
  • WEB Reference Catalog Code/W4001
Compatible Optics Diameter φ50mm, φ50.8mm
Compatible Optics Thickness 5 - 8mm
Fine-Adjustment Range /Tilt ±4°
Fine-Adjustment Range /Rotation ±4°
Fine Adjustment Resolution /Tilt about 0.31°/rotation
Fine Adjustment Resolution /Rotation about 0.48°/rotation
Ultra Fine Adjustment Resolution /Tilt -
Ultra Fine Adjustment Resolution /Rotation -
Ultra Fine Adjuster Indicator Conversion /Tilt -
Ultra Fine Adjuster Indicator Conversion /Rotation -
In stock
SKU
BHAN-50S
$328.00

Delivery in : 6-12 weeks
