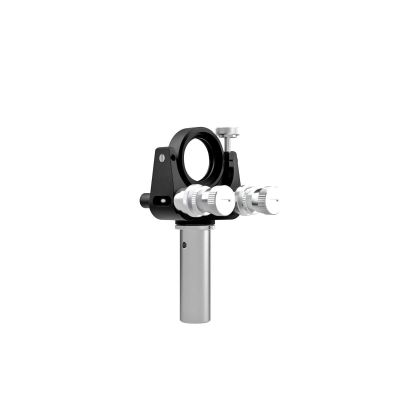

Gimballed Beamsplitter Holder
BHAN-30DM
The frame of these mounts are narrow to accommodate a greater clear aperture at 45 degrees incident. The transmitted beam diameter is just about he same as the reflected beam diameter. Appropriate for beam branching optical systems or Michelson interferometers.
◦BHAN-S functions the same as MHAN.
Name | Gimballed Beamsplitter Holder |
---|---|
Weight | 0.0800kgs |
Guide |
|
Attention |
|
Compatible Optics Diameter | φ30mm |
Compatible Optics Thickness | 3 - 5mm |
Fine-Adjustment Range /Tilt | ±4° |
Fine-Adjustment Range /Rotation | ±4° |
Fine Adjustment Resolution /Tilt | about 1.08°/rotation |
Fine Adjustment Resolution /Rotation | about 1.35°/rotation |
Ultra Fine Adjustment Resolution /Tilt | about 0.11°/rotation |
Ultra Fine Adjustment Resolution /Rotation | about 0.14°/rotation |
Ultra Fine Adjuster Indicator Conversion /Tilt | about 0.002°/DIV |
Ultra Fine Adjuster Indicator Conversion /Rotation | about 0.002°/DIV |
In stock
SKU
BHAN-30DM
$468.00
The frame of these mounts are narrow to accommodate a greater clear aperture at 45 degrees incident. The transmitted beam diameter is just about he same as the reflected beam diameter. Appropriate for beam branching optical systems or Michelson interferometers.
