Fused Silica, Plano Convex Lenses (Uncoated)

SLSQ-P

More about
Fused Silica, Plano Convex Lenses (Uncoated)
In stock
SKU
SLSQ-P
Synthetic fused silica Lens for wavelengths less than 350nm ultraviolet light.
Add to Wish List
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name Diameter φD Focal length Delivery Price Add to cart
i
Plano Convex Lens Synthetic Fused Silica 8mm Diameter 15mm Focal Length
SLSQ-08-15P 		8mm 15mm
6-12 weeks
$104.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　

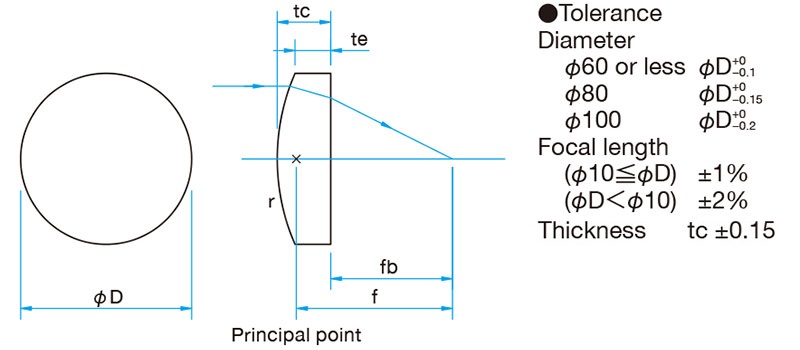

Diameter φD φ8mm
Focal length f 15mm
Edge thickness te 1.5mm
Center thickness tc 2.8mm
Back focal length fb 13.1mm
Radius of curvature r 6.9mm
Centration ＜3′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 20mm Diameter 50mm Focal Length
SLSQ-20-50P 		20mm 50mm
in stock
$95.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ20mm
Focal length f 50mm
Edge thickness te 2mm
Center thickness tc 4.3mm
Back focal length fb 47.1mm
Radius of curvature r 23mm
Centration ＜1′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 25.4mm Diameter 90mm Focal Length
SLSQ-25.4-90P 		25.4mm 90mm
in stock
$85.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25.4mm
Focal length f 90mm
Edge thickness te 1.9mm
Center thickness tc 3.9mm
Back focal length fb 87.3mm
Radius of curvature r 41.4mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 30mm Diameter 1000mm Focal Length
SLSQ-30-1000P 		30mm 1000mm
6-12 weeks
$88.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f 1000mm
Edge thickness te 2mm
Center thickness tc 2.2mm
Back focal length fb 998.5mm
Radius of curvature r 460mm
Centration ＜3′
i
Plano Convex Lens Synthetic Fused Silica 50mm Diameter 200mm Focal Length
SLSQ-50-200P 		50mm 200mm
in stock
$209.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50mm
Focal length f 200mm
Edge thickness te 3mm
Center thickness tc 6.5mm
Back focal length fb 195.6mm
Radius of curvature r 92mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 50.8mm Diameter 1000mm Focal Length
SLSQ-50.8-1000P 		50.8mm 1000mm
6-12 weeks
$170.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50.8mm
Focal length f 1000mm
Edge thickness te 3mm
Center thickness tc 3.7mm
Back focal length fb 997.5mm
Radius of curvature r 460mm
Centration ＜3′
i
Plano Convex Lens Synthetic Fused Silica 8mm Diameter 30mm Focal Length
SLSQ-08-30P 		8mm 30mm
in stock
$104.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ8mm
Focal length f 30mm
Edge thickness te 1.5mm
Center thickness tc 2.1mm
Back focal length fb 28.6mm
Radius of curvature r 13.8mm
Centration ＜3′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 20mm Diameter 80mm Focal Length
SLSQ-20-80P 		20mm 80mm
in stock
$80.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ20mm
Focal length f 80mm
Edge thickness te 2mm
Center thickness tc 3.4mm
Back focal length fb 77.7mm
Radius of curvature r 36.8mm
Centration ＜1′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 25.4mm Diameter 200mm Focal Length
SLSQ-25.4-200P 		25.4mm 200mm
in stock
$80.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25.4mm
Focal length f 200mm
Edge thickness te 1.9mm
Center thickness tc 2.9mm
Back focal length fb 198mm
Radius of curvature r 92mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 30mm Diameter 2000mm Focal Length
SLSQ-30-2000P 		30mm 2000mm
2 weeks
$103.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f 2000mm
Edge thickness te 2mm
Center thickness tc 2.1mm
Back focal length fb 1998.5mm
Radius of curvature r 920mm
Centration ＜3′
i
Plano Convex Lens Synthetic Fused Silica 50mm Diameter 300mm Focal Length
SLSQ-50-300P 		50mm 300mm
in stock
$170.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50mm
Focal length f 300mm
Edge thickness te 3mm
Center thickness tc 5.3mm
Back focal length fb 296.4mm
Radius of curvature r 138mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 60mm Diameter 100mm Focal Length
SLSQ-60-100P 		60mm 100mm
6-12 weeks
$299.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ60mm
Focal length f 100mm
Edge thickness te 3mm
Center thickness tc 14.1mm
Back focal length fb 90.3mm
Radius of curvature r 46mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 10mm Diameter 25mm Focal Length
SLSQ-10-25P 		10mm 25mm
in stock
$80.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ10mm
Focal length f 25mm
Edge thickness te 2mm
Center thickness tc 3.1mm
Back focal length fb 22.8mm
Radius of curvature r 11.5mm
Centration ＜1′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 20mm Diameter 120mm Focal Length
SLSQ-20-120P 		20mm 120mm
2 weeks
$80.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ20mm
Focal length f 120mm
Edge thickness te 2mm
Center thickness tc 2.9mm
Back focal length fb 118mm
Radius of curvature r 55.2mm
Centration ＜1′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 25.4mm Diameter 400mm Focal Length
SLSQ-25.4-400P 		25.4mm 400mm
in stock
$80.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25.4mm
Focal length f 400mm
Edge thickness te 1.9mm
Center thickness tc 2.3mm
Back focal length fb 398.4mm
Radius of curvature r 184mm
Centration ＜3′
i
Plano Convex Lens Synthetic Fused Silica 30mm Diameter 4000mm Focal Length
SLSQ-30-4000P 		30mm 4000mm
2 weeks
$113.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f 4000mm
Edge thickness te 2mm
Center thickness tc 2.1mm
Back focal length fb 3998.6mm
Radius of curvature r 1840mm
Centration ＜3′
i
Plano Convex Lens Synthetic Fused Silica 50mm Diameter 450mm Focal Length
SLSQ-50-450P 		50mm 450mm
in stock
$170.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50mm
Focal length f 450mm
Edge thickness te 3mm
Center thickness tc 4.5mm
Back focal length fb 446.9mm
Radius of curvature r 207mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 60mm Diameter 170mm Focal Length
SLSQ-60-170P 		60mm 170mm
6-12 weeks
$259.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ60mm
Focal length f 170mm
Edge thickness te 3mm
Center thickness tc 9mm
Back focal length fb 163.8mm
Radius of curvature r 78.2mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 60mm Diameter 250mm Focal Length
SLSQ-60-250P 		60mm 250mm
6-12 weeks
$245.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ60mm
Focal length f 250mm
Edge thickness te 3mm
Center thickness tc 7mm
Back focal length fb 245.2mm
Radius of curvature r 115mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 10mm Diameter 50mm Focal Length
SLSQ-10-50P 		10mm 50mm
in stock
$64.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ10mm
Focal length f 50mm
Edge thickness te 2mm
Center thickness tc 2.6mm
Back focal length fb 48.3mm
Radius of curvature r 23mm
Centration ＜1′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 20mm Diameter 200mm Focal Length
SLSQ-20-200P 		20mm 200mm
2 weeks
$80.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ20mm
Focal length f 200mm
Edge thickness te 2mm
Center thickness tc 2.5mm
Back focal length fb 198.3mm
Radius of curvature r 92mm
Centration ＜1′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 30mm Diameter 35mm Focal Length
SLSQ-30-35P 		30mm 35mm
2 weeks
$120.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f 35mm
Edge thickness te 2mm
Center thickness tc 12.3mm
Back focal length fb 26.6mm
Radius of curvature r 16.1mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 40mm Diameter 60mm Focal Length
SLSQ-40-60P 		40mm 60mm
2 weeks
$160.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ40mm
Focal length f 60mm
Edge thickness te 2mm
Center thickness tc 10.6mm
Back focal length fb 52.8mm
Radius of curvature r 27.6mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 50mm Diameter 700mm Focal Length
SLSQ-50-700P 		50mm 700mm
in stock
$170.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50mm
Focal length f 700mm
Edge thickness te 3mm
Center thickness tc 4mm
Back focal length fb 697.3mm
Radius of curvature r 322mm
Centration ＜3′
i
Plano Convex Lens Synthetic Fused Silica 5mm Diameter 8mm Focal Length
SLSQ-05-08P 		5mm 8mm
in stock
$120.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ5mm
Focal length f 8mm
Edge thickness te 1.6mm
Center thickness tc 2.5mm
Back focal length fb 6.3mm
Radius of curvature r 3.68mm
Centration ＜3′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 5mm Diameter 12mm Focal Length
SLSQ-05-12P 		5mm 12mm
in stock
$120.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ5mm
Focal length f 12mm
Edge thickness te 1.3mm
Center thickness tc 1.9mm
Back focal length fb 10.7mm
Radius of curvature r 5.52mm
Centration ＜3′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 60mm Diameter 400mm Focal Length
SLSQ-60-400P 		60mm 400mm
6-12 weeks
$240.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ60mm
Focal length f 400mm
Edge thickness te 3mm
Center thickness tc 5.5mm
Back focal length fb 396.3mm
Radius of curvature r 184mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 10mm Diameter 80mm Focal Length
SLSQ-10-80P 		10mm 80mm
2 weeks
$64.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ10mm
Focal length f 80mm
Edge thickness te 2mm
Center thickness tc 2.3mm
Back focal length fb 78.4mm
Radius of curvature r 36.8mm
Centration ＜1′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 25mm Diameter 40mm Focal Length
SLSQ-25-40P 		25mm 40mm
in stock
$100.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25mm
Focal length f 40mm
Edge thickness te 2mm
Center thickness tc 6.9mm
Back focal length fb 35.3mm
Radius of curvature r 18.4mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 30mm Diameter 60mm Focal Length
SLSQ-30-60P 		30mm 60mm
2 weeks
$105.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f 60mm
Edge thickness te 2mm
Center thickness tc 6.4mm
Back focal length fb 55.6mm
Radius of curvature r 27.6mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 40mm Diameter 90mm Focal Length
SLSQ-40-90P 		40mm 90mm
2 weeks
$150.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ40mm
Focal length f 90mm
Edge thickness te 2mm
Center thickness tc 7.2mm
Back focal length fb 85.1mm
Radius of curvature r 41.4mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 50mm Diameter 1000mm Focal Length
SLSQ-50-1000P 		50mm 1000mm
2 weeks
$170.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50mm
Focal length f 1000mm
Edge thickness te 3mm
Center thickness tc 3.7mm
Back focal length fb 997.5mm
Radius of curvature r 460mm
Centration ＜3′
i
Plano Convex Lens Synthetic Fused Silica 5mm Diameter 30mm Focal Length
SLSQ-05-30P 		5mm 30mm
2 weeks
$120.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ5mm
Focal length f 30mm
Edge thickness te 1.1mm
Center thickness tc 1.3mm
Back focal length fb 29.1mm
Radius of curvature r 13.8mm
Centration ＜3′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 100mm Diameter 200mm Focal Length
SLSQ-100-200P 		100mm 200mm
6-12 weeks
$898.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ100mm
Focal length f 200mm
Edge thickness te 3mm
Center thickness tc 17.8mm
Back focal length fb 187.8mm
Radius of curvature r 92mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 12.7mm Diameter 20mm Focal Length
SLSQ-12.7-20P 		12.7mm 20mm
in stock
$80.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ12.7mm
Focal length f 20mm
Edge thickness te 2mm
Center thickness tc 4.5mm
Back focal length fb 16.9mm
Radius of curvature r 9.20mm
Centration ＜1′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 25mm Diameter 70mm Focal Length
SLSQ-25-70P 		25mm 70mm
in stock
$95.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25mm
Focal length f 70mm
Edge thickness te 2mm
Center thickness tc 4.5mm
Back focal length fb 66.9mm
Radius of curvature r 32.2mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 30mm Diameter 90mm Focal Length
SLSQ-30-90P 		30mm 90mm
2 weeks
$97.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f 90mm
Edge thickness te 2mm
Center thickness tc 4.8mm
Back focal length fb 86.7mm
Radius of curvature r 41.4mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 40mm Diameter 150mm Focal Length
SLSQ-40-150P 		40mm 150mm
2 weeks
$150.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ40mm
Focal length f 150mm
Edge thickness te 2mm
Center thickness tc 5mm
Back focal length fb 146.6mm
Radius of curvature r 69mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 50mm Diameter 2000mm Focal Length
SLSQ-50-2000P 		50mm 2000mm
2 weeks
$190.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50mm
Focal length f 2000mm
Edge thickness te 3mm
Center thickness tc 3.3mm
Back focal length fb 1997.7mm
Radius of curvature r 920mm
Centration ＜3′
i
Plano Convex Lens Synthetic Fused Silica 6mm Diameter 12mm Focal Length
SLSQ-06-12P 		6mm 12mm
in stock
$120.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ6mm
Focal length f 12mm
Edge thickness te 1mm
Center thickness tc 1.9mm
Back focal length fb 10.7mm
Radius of curvature r 5.52mm
Centration ＜3′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 100mm Diameter 350mm Focal Length
SLSQ-100-350P 		100mm 350mm
6-12 weeks
$739.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ100mm
Focal length f 350mm
Edge thickness te 3mm
Center thickness tc 11mm
Back focal length fb 342.5mm
Radius of curvature r 161mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 12.7mm Diameter 50mm Focal Length
SLSQ-12.7-50P 		12.7mm 50mm
in stock
$64.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ12.7mm
Focal length f 50mm
Edge thickness te 2mm
Center thickness tc 2.9mm
Back focal length fb 48.0mm
Radius of curvature r 23.00mm
Centration ＜1′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 25mm Diameter 100mm Focal Length
SLSQ-25-100P 		25mm 100mm
in stock
$85.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25mm
Focal length f 100mm
Edge thickness te 2mm
Center thickness tc 3.7mm
Back focal length fb 97.4mm
Radius of curvature r 46mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 30mm Diameter 150mm Focal Length
SLSQ-30-150P 		30mm 150mm
2 weeks
$97.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f 150mm
Edge thickness te 2mm
Center thickness tc 3.7mm
Back focal length fb 147.5mm
Radius of curvature r 69mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 40mm Diameter 220mm Focal Length
SLSQ-40-220P 		40mm 220mm
2 weeks
$140.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ40mm
Focal length f 220mm
Edge thickness te 2mm
Center thickness tc 4mm
Back focal length fb 217.3mm
Radius of curvature r 101.2mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 50mm Diameter 4000mm Focal Length
SLSQ-50-4000P 		50mm 4000mm
6-12 weeks
$199.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50mm
Focal length f 4000mm
Edge thickness te 3mm
Center thickness tc 3.2mm
Back focal length fb 3997.8mm
Radius of curvature r 1840mm
Centration ＜3′
i
Plano Convex Lens Synthetic Fused Silica 6mm Diameter 25mm Focal Length
SLSQ-06-25P 		6mm 25mm
2 weeks
$120.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ6mm
Focal length f 25mm
Edge thickness te 1mm
Center thickness tc 1.4mm
Back focal length fb 24mm
Radius of curvature r 11.5mm
Centration ＜3′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 100mm Diameter 600mm Focal Length
SLSQ-100-600P 		100mm 600mm
2 weeks
$629.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ100mm
Focal length f 600mm
Edge thickness te 3mm
Center thickness tc 7.6mm
Back focal length fb 594.8mm
Radius of curvature r 276mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 15mm Diameter 30mm Focal Length
SLSQ-15-30P 		15mm 30mm
in stock
$87.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ15mm
Focal length f 30mm
Edge thickness te 2mm
Center thickness tc 4.2mm
Back focal length fb 27.1mm
Radius of curvature r 13.8mm
Centration ＜1′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 25mm Diameter 170mm Focal Length
SLSQ-25-170P 		25mm 170mm
2 weeks
$85.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25mm
Focal length f 170mm
Edge thickness te 2mm
Center thickness tc 3mm
Back focal length fb 167.9mm
Radius of curvature r 78.2mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 30mm Diameter 220mm Focal Length
SLSQ-30-220P 		30mm 220mm
2 weeks
$88.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f 220mm
Edge thickness te 2mm
Center thickness tc 3.1mm
Back focal length fb 217.9mm
Radius of curvature r 101.2mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 40mm Diameter 350mm Focal Length
SLSQ-40-350P 		40mm 350mm
in stock
$140.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ40mm
Focal length f 350mm
Edge thickness te 2mm
Center thickness tc 3.2mm
Back focal length fb 347.8mm
Radius of curvature r 161mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 50.8mm Diameter 80mm Focal Length
SLSQ-50.8-80P 		50.8mm 80mm
6-12 weeks
$228.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50.8mm
Focal length f 80mm
Edge thickness te 2.6mm
Center thickness tc 12.8mm
Back focal length fb 71.2mm
Radius of curvature r 36.8mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 7mm Diameter 12mm Focal Length
SLSQ-07-12P 		7mm 12mm
in stock
$104.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ7mm
Focal length f 12mm
Edge thickness te 2mm
Center thickness tc 3.2mm
Back focal length fb 9.8mm
Radius of curvature r 5.52mm
Centration ＜3′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 100mm Diameter 1000mm Focal Length
SLSQ-100-1000P 		100mm 1000mm
2 weeks
$549.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ100mm
Focal length f 1000mm
Edge thickness te 3mm
Center thickness tc 5.7mm
Back focal length fb 995.1mm
Radius of curvature r 460mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 15mm Diameter 60mm Focal Length
SLSQ-15-60P 		15mm 60mm
in stock
$72.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ15mm
Focal length f 60mm
Edge thickness te 2mm
Center thickness tc 3mm
Back focal length fb 57.9mm
Radius of curvature r 27.6mm
Centration ＜1′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 25mm Diameter 250mm Focal Length
SLSQ-25-250P 		25mm 250mm
in stock
$80.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25mm
Focal length f 250mm
Edge thickness te 2mm
Center thickness tc 2.7mm
Back focal length fb 248.2mm
Radius of curvature r 115mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 30mm Diameter 350mm Focal Length
SLSQ-30-350P 		30mm 350mm
2 weeks
$88.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f 350mm
Edge thickness te 2mm
Center thickness tc 2.7mm
Back focal length fb 348.2mm
Radius of curvature r 161mm
Centration ＜3′
i
Plano Convex Lens Synthetic Fused Silica 40mm Diameter 500mm Focal Length
SLSQ-40-500P 		40mm 500mm
in stock
$140.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ40mm
Focal length f 500mm
Edge thickness te 2mm
Center thickness tc 2.9mm
Back focal length fb 498mm
Radius of curvature r 230mm
Centration ＜3′
i
Plano Convex Lens Synthetic Fused Silica 50.8mm Diameter 120mm Focal Length
SLSQ-50.8-120P 		50.8mm 120mm
in stock
$209.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50.8mm
Focal length f 120mm
Edge thickness te 2.8mm
Center thickness tc 9mm
Back focal length fb 113.8mm
Radius of curvature r 55.2mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 7mm Diameter 30mm Focal Length
SLSQ-07-30P 		7mm 30mm
in stock
$104.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ7mm
Focal length f 30mm
Edge thickness te 1.6mm
Center thickness tc 2.1mm
Back focal length fb 28.6mm
Radius of curvature r 13.8mm
Centration ＜3′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 15mm Diameter 90mm Focal Length
SLSQ-15-90P 		15mm 90mm
6-12 weeks
$72.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ15mm
Focal length f 90mm
Edge thickness te 2mm
Center thickness tc 2.7mm
Back focal length fb 88.2mm
Radius of curvature r 41.4mm
Centration ＜1′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 25.4mm Diameter 40mm Focal Length
SLSQ-25.4-40P 		25.4mm 40mm
in stock
$100.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25.4mm
Focal length f 40mm
Edge thickness te 1.8mm
Center thickness tc 6.9mm
Back focal length fb 35.3mm
Radius of curvature r 18.4mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 30mm Diameter 500mm Focal Length
SLSQ-30-500P 		30mm 500mm
2 weeks
$88.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f 500mm
Edge thickness te 2mm
Center thickness tc 2.5mm
Back focal length fb 498.3mm
Radius of curvature r 230mm
Centration ＜3′
i
Plano Convex Lens Synthetic Fused Silica 50mm Diameter 90mm Focal Length
SLSQ-50-90P 		50mm 90mm
6-12 weeks
$218.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50mm
Focal length f 90mm
Edge thickness te 3mm
Center thickness tc 11.4mm
Back focal length fb 82.2mm
Radius of curvature r 41.4mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 50.8mm Diameter 200mm Focal Length
SLSQ-50.8-200P 		50.8mm 200mm
in stock
$209.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50.8mm
Focal length f 200mm
Edge thickness te 2.9mm
Center thickness tc 6.5mm
Back focal length fb 195.6mm
Radius of curvature r 92mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 8mm Diameter 10mm Focal Length
SLSQ-08-10P 		8mm 10mm
2 weeks
$104.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ8mm
Focal length f 10mm
Edge thickness te 1.5mm
Center thickness tc 3.8mm
Back focal length fb 7.4mm
Radius of curvature r 4.6mm
Centration ＜3′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 20mm Diameter 30mm Focal Length
SLSQ-20-30P 		20mm 30mm
in stock
$95.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ20mm
Focal length f 30mm
Edge thickness te 2mm
Center thickness tc 6.3mm
Back focal length fb 25.7mm
Radius of curvature r 13.8mm
Centration ＜1′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 25.4mm Diameter 70mm Focal Length
SLSQ-25.4-70P 		25.4mm 70mm
in stock
$95.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25.4mm
Focal length f 70mm
Edge thickness te 1.9mm
Center thickness tc 4.5mm
Back focal length fb 66.9mm
Radius of curvature r 32.2mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 30mm Diameter 800mm Focal Length
SLSQ-30-800P 		30mm 800mm
2 weeks
$88.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f 800mm
Edge thickness te 2mm
Center thickness tc 2.3mm
Back focal length fb 798.4mm
Radius of curvature r 368mm
Centration ＜3′
i
Plano Convex Lens Synthetic Fused Silica 50mm Diameter 150mm Focal Length
SLSQ-50-150P 		50mm 150mm
2 weeks
$209.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50mm
Focal length f 150mm
Edge thickness te 3mm
Center thickness tc 7.7mm
Back focal length fb 144.7mm
Radius of curvature r 69mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 50.8mm Diameter 400mm Focal Length
SLSQ-50.8-400P 		50.8mm 400mm
in stock
$170.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50.8mm
Focal length f 400mm
Edge thickness te 2.9mm
Center thickness tc 4.7mm
Back focal length fb 396.8mm
Radius of curvature r 184mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 8mm Diameter 20mm Focal Length
SLSQ-08-20P 		8mm 20mm
6-12 weeks
$104.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ8mm
Focal length f 20mm
Edge thickness te 1.5mm
Center thickness tc 2.4mm
Back focal length fb 18.3mm
Radius of curvature r 9.2mm
Centration ＜3′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 20mm Diameter 60mm Focal Length
SLSQ-20-60P 		20mm 60mm
in stock
$80.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ20mm
Focal length f 60mm
Edge thickness te 2mm
Center thickness tc 3.9mm
Back focal length fb 57.3mm
Radius of curvature r 27.6mm
Centration ＜1′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 25.4mm Diameter 100mm Focal Length
SLSQ-25.4-100P 		25.4mm 100mm
in stock
$85.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25.4mm
Focal length f 100mm
Edge thickness te 1.9mm
Center thickness tc 3.7mm
Back focal length fb 97.5mm
Radius of curvature r 46mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 30mm Diameter 1200mm Focal Length
SLSQ-30-1200P 		30mm 1200mm
2 weeks
$98.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f 1200mm
Edge thickness te 2mm
Center thickness tc 2.2mm
Back focal length fb 1198.5mm
Radius of curvature r 552mm
Centration ＜3′
i
Plano Convex Lens Synthetic Fused Silica 50mm Diameter 220mm Focal Length
SLSQ-50-220P 		50mm 220mm
6-12 weeks
$209.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50mm
Focal length f 220mm
Edge thickness te 3mm
Center thickness tc 6.1mm
Back focal length fb 215.8mm
Radius of curvature r 101.2mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 60mm Diameter 80mm Focal Length
SLSQ-60-80P 		60mm 80mm
in stock
$329.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ60mm
Focal length f 80mm
Edge thickness te 3mm
Center thickness tc 18.5mm
Back focal length fb 67.3mm
Radius of curvature r 36.8mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 10mm Diameter 15mm Focal Length
SLSQ-10-15P 		10mm 15mm
in stock
$80.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ10mm
Focal length f 15mm
Edge thickness te 2mm
Center thickness tc 4.1mm
Back focal length fb 12.2mm
Radius of curvature r 6.9mm
Centration ＜1′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 20mm Diameter 90mm Focal Length
SLSQ-20-90P 		20mm 90mm
2 weeks
$80.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ20mm
Focal length f 90mm
Edge thickness te 2mm
Center thickness tc 3.2mm
Back focal length fb 87.8mm
Radius of curvature r 41.4mm
Centration ＜1′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 25.4mm Diameter 250mm Focal Length
SLSQ-25.4-250P 		25.4mm 250mm
in stock
$80.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25.4mm
Focal length f 250mm
Edge thickness te 1.9mm
Center thickness tc 2.7mm
Back focal length fb 248.2mm
Radius of curvature r 115mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 30mm Diameter 2500mm Focal Length
SLSQ-30-2500P 		30mm 2500mm
2 weeks
$103.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f 2500mm
Edge thickness te 2mm
Center thickness tc 2.1mm
Back focal length fb 2498.6mm
Radius of curvature r 1150mm
Centration ＜3′
i
Plano Convex Lens Synthetic Fused Silica 50mm Diameter 350mm Focal Length
SLSQ-50-350P 		50mm 350mm
2 weeks
$170.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50mm
Focal length f 350mm
Edge thickness te 3mm
Center thickness tc 5mm
Back focal length fb 346.6mm
Radius of curvature r 161mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 60mm Diameter 120mm Focal Length
SLSQ-60-120P 		60mm 120mm
2 weeks
$279.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ60mm
Focal length f 120mm
Edge thickness te 3mm
Center thickness tc 11.9mm
Back focal length fb 111.9mm
Radius of curvature r 55.2mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 10mm Diameter 30mm Focal Length
SLSQ-10-30P 		10mm 30mm
2 weeks
$72.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ10mm
Focal length f 30mm
Edge thickness te 2mm
Center thickness tc 2.9mm
Back focal length fb 28mm
Radius of curvature r 13.8mm
Centration ＜1′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 20mm Diameter 150mm Focal Length
SLSQ-20-150P 		20mm 150mm
2 weeks
$80.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ20mm
Focal length f 150mm
Edge thickness te 2mm
Center thickness tc 2.7mm
Back focal length fb 148.1mm
Radius of curvature r 69mm
Centration ＜1′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 25.4mm Diameter 500mm Focal Length
SLSQ-25.4-500P 		25.4mm 500mm
in stock
$80.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25.4mm
Focal length f 500mm
Edge thickness te 1.9mm
Center thickness tc 2.3mm
Back focal length fb 498mm
Radius of curvature r 230mm
Centration ＜3′
i
Plano Convex Lens Synthetic Fused Silica 30mm Diameter 5000mm Focal Length
SLSQ-30-5000P 		30mm 5000mm
2 weeks
$118.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f 5000mm
Edge thickness te 2mm
Center thickness tc 2.1mm
Back focal length fb 4998.6mm
Radius of curvature r 2300mm
Centration ＜3′
i
Plano Convex Lens Synthetic Fused Silica 50mm Diameter 500mm Focal Length
SLSQ-50-500P 		50mm 500mm
2 weeks
$170.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50mm
Focal length f 500mm
Edge thickness te 3mm
Center thickness tc 4.4mm
Back focal length fb 497mm
Radius of curvature r 230mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 60mm Diameter 200mm Focal Length
SLSQ-60-200P 		60mm 200mm
in stock
$250.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ60mm
Focal length f 200mm
Edge thickness te 3mm
Center thickness tc 8mm
Back focal length fb 194.5mm
Radius of curvature r 92mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 60mm Diameter 300mm Focal Length
SLSQ-60-300P 		60mm 300mm
6-12 weeks
$245.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ60mm
Focal length f 300mm
Edge thickness te 3mm
Center thickness tc 6.3mm
Back focal length fb 295.7mm
Radius of curvature r 138mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 10mm Diameter 60mm Focal Length
SLSQ-10-60P 		10mm 60mm
in stock
$64.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ10mm
Focal length f 60mm
Edge thickness te 2mm
Center thickness tc 2.5mm
Back focal length fb 58.3mm
Radius of curvature r 27.6mm
Centration ＜1′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 25mm Diameter 30mm Focal Length
SLSQ-25-30P 		25mm 30mm
2 weeks
$100.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25mm
Focal length f 30mm
Edge thickness te 2mm
Center thickness tc 10mm
Back focal length fb 23.2mm
Radius of curvature r 13.8mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 30mm Diameter 40mm Focal Length
SLSQ-30-40P 		30mm 40mm
in stock
$105.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f 40mm
Edge thickness te 2mm
Center thickness tc 9.7mm
Back focal length fb 33.3mm
Radius of curvature r 18.4mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 40mm Diameter 70mm Focal Length
SLSQ-40-70P 		40mm 70mm
2 weeks
$160.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ40mm
Focal length f 70mm
Edge thickness te 2mm
Center thickness tc 9mm
Back focal length fb 63.9mm
Radius of curvature r 32.2mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 50mm Diameter 800mm Focal Length
SLSQ-50-800P 		50mm 800mm
in stock
$170.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50mm
Focal length f 800mm
Edge thickness te 3mm
Center thickness tc 3.9mm
Back focal length fb 797.4mm
Radius of curvature r 368mm
Centration ＜3′
i
Plano Convex Lens Synthetic Fused Silica 5mm Diameter 9mm Focal Length
SLSQ-05-09P 		5mm 9mm
2 weeks
$120.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ5mm
Focal length f 9mm
Edge thickness te 1.4mm
Center thickness tc 2.3mm
Back focal length fb 7.6mm
Radius of curvature r 4.14mm
Centration ＜3′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 5mm Diameter 15mm Focal Length
SLSQ-05-15P 		5mm 15mm
in stock
$120.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ5mm
Focal length f 15mm
Edge thickness te 1.2mm
Center thickness tc 1.7mm
Back focal length fb 13.8mm
Radius of curvature r 6.9mm
Centration ＜3′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 60mm Diameter 450mm Focal Length
SLSQ-60-450P 		60mm 450mm
2 weeks
$240.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ60mm
Focal length f 450mm
Edge thickness te 3mm
Center thickness tc 5.2mm
Back focal length fb 446.5mm
Radius of curvature r 207mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 10mm Diameter 100mm Focal Length
SLSQ-10-100P 		10mm 100mm
in stock
$64.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ10mm
Focal length f 100mm
Edge thickness te 2mm
Center thickness tc 2.3mm
Back focal length fb 98.4mm
Radius of curvature r 46mm
Centration ＜1′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 25mm Diameter 50mm Focal Length
SLSQ-25-50P 		25mm 50mm
in stock
$100.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25mm
Focal length f 50mm
Edge thickness te 2mm
Center thickness tc 5.7mm
Back focal length fb 46.1mm
Radius of curvature r 23mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 30mm Diameter 70mm Focal Length
SLSQ-30-70P 		30mm 70mm
2 weeks
$105.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f 70mm
Edge thickness te 2mm
Center thickness tc 5.7mm
Back focal length fb 66.1mm
Radius of curvature r 32.2mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 40mm Diameter 100mm Focal Length
SLSQ-40-100P 		40mm 100mm
2 weeks
$150.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ40mm
Focal length f 100mm
Edge thickness te 2mm
Center thickness tc 6.6mm
Back focal length fb 95.5mm
Radius of curvature r 46mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 50mm Diameter 1200mm Focal Length
SLSQ-50-1200P 		50mm 1200mm
2 weeks
$180.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50mm
Focal length f 1200mm
Edge thickness te 3mm
Center thickness tc 3.6mm
Back focal length fb 1197.6mm
Radius of curvature r 552mm
Centration ＜3′
i
Plano Convex Lens Synthetic Fused Silica 6mm Diameter 8mm Focal Length
SLSQ-06-08P 		6mm 8mm
in stock
$120.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ6mm
Focal length f 8mm
Edge thickness te 1mm
Center thickness tc 2.5mm
Back focal length fb 6.3mm
Radius of curvature r 3.68mm
Centration ＜3′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 100mm Diameter 250mm Focal Length
SLSQ-100-250P 		100mm 250mm
6-12 weeks
$828.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ100mm
Focal length f 250mm
Edge thickness te 3mm
Center thickness tc 14.4mm
Back focal length fb 240.1mm
Radius of curvature r 115mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 12.7mm Diameter 25mm Focal Length
SLSQ-12.7-25P 		12.7mm 25mm
in stock
$80.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ12.7mm
Focal length f 25mm
Edge thickness te 2mm
Center thickness tc 3.9mm
Back focal length fb 22.3mm
Radius of curvature r 11.50mm
Centration ＜1′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 25mm Diameter 80mm Focal Length
SLSQ-25-80P 		25mm 80mm
2 weeks
$85.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25mm
Focal length f 80mm
Edge thickness te 2mm
Center thickness tc 4.2mm
Back focal length fb 77.1mm
Radius of curvature r 36.8mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 30mm Diameter 100mm Focal Length
SLSQ-30-100P 		30mm 100mm
2 weeks
$97.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f 100mm
Edge thickness te 2mm
Center thickness tc 4.5mm
Back focal length fb 96.9mm
Radius of curvature r 46mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 40mm Diameter 170mm Focal Length
SLSQ-40-170P 		40mm 170mm
6-12 weeks
$150.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ40mm
Focal length f 170mm
Edge thickness te 2mm
Center thickness tc 4.6mm
Back focal length fb 166.8mm
Radius of curvature r 78.2mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 50mm Diameter 2500mm Focal Length
SLSQ-50-2500P 		50mm 2500mm
in stock
$190.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50mm
Focal length f 2500mm
Edge thickness te 3mm
Center thickness tc 3.3mm
Back focal length fb 2497.8mm
Radius of curvature r 1150mm
Centration ＜3′
i
Plano Convex Lens Synthetic Fused Silica 6mm Diameter 15mm Focal Length
SLSQ-06-15P 		6mm 15mm
in stock
$120.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ6mm
Focal length f 15mm
Edge thickness te 1mm
Center thickness tc 1.7mm
Back focal length fb 13.8mm
Radius of curvature r 6.9mm
Centration ＜3′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 100mm Diameter 400mm Focal Length
SLSQ-100-400P 		100mm 400mm
6-12 weeks
$699.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ100mm
Focal length f 400mm
Edge thickness te 3mm
Center thickness tc 9.9mm
Back focal length fb 393.2mm
Radius of curvature r 184mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 15mm Diameter 20mm Focal Length
SLSQ-15-20P 		15mm 20mm
in stock
$97.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ15mm
Focal length f 20mm
Edge thickness te 2mm
Center thickness tc 5.9mm
Back focal length fb 16mm
Radius of curvature r 9.2mm
Centration ＜1′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 25mm Diameter 120mm Focal Length
SLSQ-25-120P 		25mm 120mm
2 weeks
$85.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25mm
Focal length f 120mm
Edge thickness te 2mm
Center thickness tc 3.4mm
Back focal length fb 117.6mm
Radius of curvature r 55.2mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 30mm Diameter 170mm Focal Length
SLSQ-30-170P 		30mm 170mm
2 weeks
$97.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f 170mm
Edge thickness te 2mm
Center thickness tc 3.5mm
Back focal length fb 167.6mm
Radius of curvature r 78.2mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 40mm Diameter 250mm Focal Length
SLSQ-40-250P 		40mm 250mm
2 weeks
$140.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ40mm
Focal length f 250mm
Edge thickness te 2mm
Center thickness tc 3.8mm
Back focal length fb 247.4mm
Radius of curvature r 115mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 50mm Diameter 5000mm Focal Length
SLSQ-50-5000P 		50mm 5000mm
2 weeks
$209.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50mm
Focal length f 5000mm
Edge thickness te 3mm
Center thickness tc 3.1mm
Back focal length fb 4997.9mm
Radius of curvature r 2300mm
Centration ＜3′
i
Plano Convex Lens Synthetic Fused Silica 6mm Diameter 30mm Focal Length
SLSQ-06-30P 		6mm 30mm
6-12 weeks
$120.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ6mm
Focal length f 30mm
Edge thickness te 1mm
Center thickness tc 1.3mm
Back focal length fb 29.1mm
Radius of curvature r 13.8mm
Centration ＜3′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 100mm Diameter 700mm Focal Length
SLSQ-100-700P 		100mm 700mm
6-12 weeks
$599.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ100mm
Focal length f 700mm
Edge thickness te 3mm
Center thickness tc 6.9mm
Back focal length fb 695.3mm
Radius of curvature r 322mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 15mm Diameter 40mm Focal Length
SLSQ-15-40P 		15mm 40mm
in stock
$87.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ15mm
Focal length f 40mm
Edge thickness te 2mm
Center thickness tc 3.6mm
Back focal length fb 37.5mm
Radius of curvature r 18.4mm
Centration ＜1′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 25mm Diameter 200mm Focal Length
SLSQ-25-200P 		25mm 200mm
in stock
$80.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25mm
Focal length f 200mm
Edge thickness te 2mm
Center thickness tc 2.9mm
Back focal length fb 198mm
Radius of curvature r 92mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 30mm Diameter 250mm Focal Length
SLSQ-30-250P 		30mm 250mm
2 weeks
$88.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f 250mm
Edge thickness te 2mm
Center thickness tc 3mm
Back focal length fb 248mm
Radius of curvature r 115mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 40mm Diameter 400mm Focal Length
SLSQ-40-400P 		40mm 400mm
in stock
$140.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ40mm
Focal length f 400mm
Edge thickness te 2mm
Center thickness tc 3.1mm
Back focal length fb 397.9mm
Radius of curvature r 184mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 50.8mm Diameter 90mm Focal Length
SLSQ-50.8-90P 		50.8mm 90mm
in stock
$218.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50.8mm
Focal length f 90mm
Edge thickness te 2.7mm
Center thickness tc 11.4mm
Back focal length fb 82.2mm
Radius of curvature r 41.4mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 7mm Diameter 15mm Focal Length
SLSQ-07-15P 		7mm 15mm
in stock
$104.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ7mm
Focal length f 15mm
Edge thickness te 1.8mm
Center thickness tc 2.8mm
Back focal length fb 13.1mm
Radius of curvature r 6.9mm
Centration ＜3′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 15mm Diameter 70mm Focal Length
SLSQ-15-70P 		15mm 70mm
in stock
$72.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ15mm
Focal length f 70mm
Edge thickness te 2mm
Center thickness tc 2.9mm
Back focal length fb 68mm
Radius of curvature r 32.2mm
Centration ＜1′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 25.4mm Diameter 30mm Focal Length
SLSQ-25.4-30P 		25.4mm 30mm
in stock
$100.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25.4mm
Focal length f 30mm
Edge thickness te 1.6mm
Center thickness tc 10mm
Back focal length fb 23.2mm
Radius of curvature r 13.8mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 30mm Diameter 400mm Focal Length
SLSQ-30-400P 		30mm 400mm
2 weeks
$88.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f 400mm
Edge thickness te 2mm
Center thickness tc 2.6mm
Back focal length fb 398.2mm
Radius of curvature r 184mm
Centration ＜3′
i
Plano Convex Lens Synthetic Fused Silica 50mm Diameter 70mm Focal Length
SLSQ-50-70P 		50mm 70mm
2 weeks
$232.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50mm
Focal length f 70mm
Edge thickness te 3mm
Center thickness tc 14.9mm
Back focal length fb 59.8mm
Radius of curvature r 32.2mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 50.8mm Diameter 150mm Focal Length
SLSQ-50.8-150P 		50.8mm 150mm
in stock
$209.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50.8mm
Focal length f 150mm
Edge thickness te 2.9mm
Center thickness tc 7.7mm
Back focal length fb 144.7mm
Radius of curvature r 69mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 7mm Diameter 40mm Focal Length
SLSQ-07-40P 		7mm 40mm
in stock
$104.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ7mm
Focal length f 40mm
Edge thickness te 1.6mm
Center thickness tc 1.9mm
Back focal length fb 38.7mm
Radius of curvature r 18.4mm
Centration ＜3′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 15mm Diameter 100mm Focal Length
SLSQ-15-100P 		15mm 100mm
in stock
$72.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ15mm
Focal length f 100mm
Edge thickness te 2mm
Center thickness tc 2.6mm
Back focal length fb 98.3mm
Radius of curvature r 46mm
Centration ＜1′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 25.4mm Diameter 50mm Focal Length
SLSQ-25.4-50P 		25.4mm 50mm
in stock
$100.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25.4mm
Focal length f 50mm
Edge thickness te 1.9mm
Center thickness tc 5.7mm
Back focal length fb 46.1mm
Radius of curvature r 23mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 30mm Diameter 600mm Focal Length
SLSQ-30-600P 		30mm 600mm
2 weeks
$88.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f 600mm
Edge thickness te 2mm
Center thickness tc 2.4mm
Back focal length fb 598.4mm
Radius of curvature r 276mm
Centration ＜3′
i
Plano Convex Lens Synthetic Fused Silica 50mm Diameter 100mm Focal Length
SLSQ-50-100P 		50mm 100mm
2 weeks
$209.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50mm
Focal length f 100mm
Edge thickness te 3mm
Center thickness tc 10.4mm
Back focal length fb 92.9mm
Radius of curvature r 46mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 50.8mm Diameter 250mm Focal Length
SLSQ-50.8-250P 		50.8mm 250mm
in stock
$170.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50.8mm
Focal length f 250mm
Edge thickness te 2.9mm
Center thickness tc 5.7mm
Back focal length fb 246.1mm
Radius of curvature r 115mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 8mm Diameter 12mm Focal Length
SLSQ-08-12P 		8mm 12mm
in stock
$104.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ8mm
Focal length f 12mm
Edge thickness te 1.5mm
Center thickness tc 3.2mm
Back focal length fb 9.8mm
Radius of curvature r 5.52mm
Centration ＜3′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 20mm Diameter 40mm Focal Length
SLSQ-20-40P 		20mm 40mm
in stock
$95.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ20mm
Focal length f 40mm
Edge thickness te 2mm
Center thickness tc 5mm
Back focal length fb 36.6mm
Radius of curvature r 18.4mm
Centration ＜1′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 25.4mm Diameter 80mm Focal Length
SLSQ-25.4-80P 		25.4mm 80mm
in stock
$85.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25.4mm
Focal length f 80mm
Edge thickness te 1.9mm
Center thickness tc 4.2mm
Back focal length fb 77.1mm
Radius of curvature r 36.8mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 30mm Diameter 900mm Focal Length
SLSQ-30-900P 		30mm 900mm
2 weeks
$88.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f 900mm
Edge thickness te 2mm
Center thickness tc 2.3mm
Back focal length fb 898.4mm
Radius of curvature r 414mm
Centration ＜3′
i
Plano Convex Lens Synthetic Fused Silica 50mm Diameter 170mm Focal Length
SLSQ-50-170P 		50mm 170mm
in stock
$209.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50mm
Focal length f 170mm
Edge thickness te 3mm
Center thickness tc 7.1mm
Back focal length fb 165.1mm
Radius of curvature r 78.2mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 50.8mm Diameter 500mm Focal Length
SLSQ-50.8-500P 		50.8mm 500mm
in stock
$170.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50.8mm
Focal length f 500mm
Edge thickness te 3mm
Center thickness tc 4.4mm
Back focal length fb 497mm
Radius of curvature r 230mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 8mm Diameter 25mm Focal Length
SLSQ-08-25P 		8mm 25mm
in stock
$104.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ8mm
Focal length f 25mm
Edge thickness te 1.5mm
Center thickness tc 2.2mm
Back focal length fb 23.5mm
Radius of curvature r 11.5mm
Centration ＜3′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 20mm Diameter 70mm Focal Length
SLSQ-20-70P 		20mm 70mm
in stock
$80.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ20mm
Focal length f 70mm
Edge thickness te 2mm
Center thickness tc 3.6mm
Back focal length fb 67.5mm
Radius of curvature r 32.2mm
Centration ＜1′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 25.4mm Diameter 150mm Focal Length
SLSQ-25.4-150P 		25.4mm 150mm
in stock
$85.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25.4mm
Focal length f 150mm
Edge thickness te 1.9mm
Center thickness tc 3.1mm
Back focal length fb 147.9mm
Radius of curvature r 69mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 30mm Diameter 1500mm Focal Length
SLSQ-30-1500P 		30mm 1500mm
2 weeks
$98.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f 1500mm
Edge thickness te 2mm
Center thickness tc 2.2mm
Back focal length fb 1498.5mm
Radius of curvature r 690mm
Centration ＜3′
i
Plano Convex Lens Synthetic Fused Silica 50mm Diameter 250mm Focal Length
SLSQ-50-250P 		50mm 250mm
2 weeks
$170.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50mm
Focal length f 250mm
Edge thickness te 3mm
Center thickness tc 5.8mm
Back focal length fb 246.1mm
Radius of curvature r 115mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 60mm Diameter 90mm Focal Length
SLSQ-60-90P 		60mm 90mm
6-12 weeks
$299.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ60mm
Focal length f 90mm
Edge thickness te 3mm
Center thickness tc 15.9mm
Back focal length fb 79.1mm
Radius of curvature r 41.4mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 10mm Diameter 20mm Focal Length
SLSQ-10-20P 		10mm 20mm
in stock
$80.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ10mm
Focal length f 20mm
Edge thickness te 2mm
Center thickness tc 3.5mm
Back focal length fb 17.6mm
Radius of curvature r 9.2mm
Centration ＜1′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 20mm Diameter 100mm Focal Length
SLSQ-20-100P 		20mm 100mm
in stock
$80.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ20mm
Focal length f 100mm
Edge thickness te 2mm
Center thickness tc 3.1mm
Back focal length fb 97.9mm
Radius of curvature r 46mm
Centration ＜1′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 25.4mm Diameter 300mm Focal Length
SLSQ-25.4-300P 		25.4mm 300mm
in stock
$80.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25.4mm
Focal length f 300mm
Edge thickness te 1.9mm
Center thickness tc 2.5mm
Back focal length fb 298.3mm
Radius of curvature r 138mm
Centration ＜3′
i
Plano Convex Lens Synthetic Fused Silica 30mm Diameter 3000mm Focal Length
SLSQ-30-3000P 		30mm 3000mm
2 weeks
$113.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f 3000mm
Edge thickness te 2mm
Center thickness tc 2.1mm
Back focal length fb 2998.6mm
Radius of curvature r 1380mm
Centration ＜3′
i
Plano Convex Lens Synthetic Fused Silica 50mm Diameter 400mm Focal Length
SLSQ-50-400P 		50mm 400mm
in stock
$170.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50mm
Focal length f 400mm
Edge thickness te 3mm
Center thickness tc 4.7mm
Back focal length fb 396.8mm
Radius of curvature r 184mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 60mm Diameter 150mm Focal Length
SLSQ-60-150P 		60mm 150mm
in stock
$269.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ60mm
Focal length f 150mm
Edge thickness te 3mm
Center thickness tc 9.9mm
Back focal length fb 143.2mm
Radius of curvature r 69mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 10mm Diameter 40mm Focal Length
SLSQ-10-40P 		10mm 40mm
2 weeks
$72.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ10mm
Focal length f 40mm
Edge thickness te 2mm
Center thickness tc 2.7mm
Back focal length fb 38.2mm
Radius of curvature r 18.4mm
Centration ＜1′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 20mm Diameter 170mm Focal Length
SLSQ-20-170P 		20mm 170mm
2 weeks
$80.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ20mm
Focal length f 170mm
Edge thickness te 2mm
Center thickness tc 2.6mm
Back focal length fb 168.2mm
Radius of curvature r 78.2mm
Centration ＜1′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 25.4mm Diameter 1000mm Focal Length
SLSQ-25.4-1000P 		25.4mm 1000mm
in stock
$80.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25.4mm
Focal length f 1000mm
Edge thickness te 1.9mm
Center thickness tc 2.1mm
Back focal length fb 998.6mm
Radius of curvature r 460mm
Centration ＜3′
i
Plano Convex Lens Synthetic Fused Silica 40mm Diameter 50mm Focal Length
SLSQ-40-50P 		40mm 50mm
in stock
$170.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ40mm
Focal length f 50mm
Edge thickness te 2mm
Center thickness tc 13.6mm
Back focal length fb 40.7mm
Radius of curvature r 23mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 50mm Diameter 600mm Focal Length
SLSQ-50-600P 		50mm 600mm
2 weeks
$170.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50mm
Focal length f 600mm
Edge thickness te 3mm
Center thickness tc 4.1mm
Back focal length fb 597.2mm
Radius of curvature r 276mm
Centration ＜3′
i
Plano Convex Lens Synthetic Fused Silica 60mm Diameter 220mm Focal Length
SLSQ-60-220P 		60mm 220mm
6-12 weeks
$250.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ60mm
Focal length f 220mm
Edge thickness te 3mm
Center thickness tc 7.5mm
Back focal length fb 214.8mm
Radius of curvature r 101.2mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 5mm Diameter 10mm Focal Length
SLSQ-05-10P 		5mm 10mm
in stock
$120.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ5mm
Focal length f 10mm
Edge thickness te 1.4mm
Center thickness tc 2.1mm
Back focal length fb 8.6mm
Radius of curvature r 4.6mm
Centration ＜3′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 60mm Diameter 350mm Focal Length
SLSQ-60-350P 		60mm 350mm
6-12 weeks
$240.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ60mm
Focal length f 350mm
Edge thickness te 3mm
Center thickness tc 5.8mm
Back focal length fb 346mm
Radius of curvature r 161mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 10mm Diameter 70mm Focal Length
SLSQ-10-70P 		10mm 70mm
in stock
$64.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ10mm
Focal length f 70mm
Edge thickness te 2mm
Center thickness tc 2.4mm
Back focal length fb 68.4mm
Radius of curvature r 32.2mm
Centration ＜1′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 25mm Diameter 35mm Focal Length
SLSQ-25-35P 		25mm 35mm
2 weeks
$105.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25mm
Focal length f 35mm
Edge thickness te 2mm
Center thickness tc 8mm
Back focal length fb 29.6mm
Radius of curvature r 16.1mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 30mm Diameter 50mm Focal Length
SLSQ-30-50P 		30mm 50mm
2 weeks
$105.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f 50mm
Edge thickness te 2mm
Center thickness tc 7.6mm
Back focal length fb 44.8mm
Radius of curvature r 23mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 40mm Diameter 80mm Focal Length
SLSQ-40-80P 		40mm 80mm
6-12 weeks
$160.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ40mm
Focal length f 80mm
Edge thickness te 2mm
Center thickness tc 7.9mm
Back focal length fb 74.6mm
Radius of curvature r 36.8mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 50mm Diameter 900mm Focal Length
SLSQ-50-900P 		50mm 900mm
in stock
$170.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50mm
Focal length f 900mm
Edge thickness te 3mm
Center thickness tc 3.8mm
Back focal length fb 897.4mm
Radius of curvature r 414mm
Centration ＜3′
i
Plano Convex Lens Synthetic Fused Silica 5mm Diameter 20mm Focal Length
SLSQ-05-20P 		5mm 20mm
in stock
$120.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ5mm
Focal length f 20mm
Edge thickness te 1.2mm
Center thickness tc 1.5mm
Back focal length fb 19mm
Radius of curvature r 9.2mm
Centration ＜3′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 60mm Diameter 500mm Focal Length
SLSQ-60-500P 		60mm 500mm
in stock
$235.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ60mm
Focal length f 500mm
Edge thickness te 3mm
Center thickness tc 5mm
Back focal length fb 496.6mm
Radius of curvature r 230mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 12.7mm Diameter 15mm Focal Length
SLSQ-12.7-15P 		12.7mm 15mm
in stock
$80.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ12.7mm
Focal length f 15mm
Edge thickness te 2mm
Center thickness tc 6.2mm
Back focal length fb 10.8mm
Radius of curvature r 6.90mm
Centration ＜1′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 25mm Diameter 60mm Focal Length
SLSQ-25-60P 		25mm 60mm
in stock
$95.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25mm
Focal length f 60mm
Edge thickness te 2mm
Center thickness tc 5mm
Back focal length fb 56.6mm
Radius of curvature r 27.6mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 30mm Diameter 80mm Focal Length
SLSQ-30-80P 		30mm 80mm
in stock
$97.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f 80mm
Edge thickness te 2mm
Center thickness tc 5.2mm
Back focal length fb 76.4mm
Radius of curvature r 36.8mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 40mm Diameter 120mm Focal Length
SLSQ-40-120P 		40mm 120mm
2 weeks
$150.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ40mm
Focal length f 120mm
Edge thickness te 2mm
Center thickness tc 5.8mm
Back focal length fb 116.1mm
Radius of curvature r 55.2mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 50mm Diameter 1500mm Focal Length
SLSQ-50-1500P 		50mm 1500mm
2 weeks
$180.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50mm
Focal length f 1500mm
Edge thickness te 3mm
Center thickness tc 3.5mm
Back focal length fb 1497.6mm
Radius of curvature r 690mm
Centration ＜3′
i
Plano Convex Lens Synthetic Fused Silica 6mm Diameter 10mm Focal Length
SLSQ-06-10P 		6mm 10mm
in stock
$120.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ6mm
Focal length f 10mm
Edge thickness te 1mm
Center thickness tc 2.1mm
Back focal length fb 8.6mm
Radius of curvature r 4.6mm
Centration ＜3′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 100mm Diameter 300mm Focal Length
SLSQ-100-300P 		100mm 300mm
2 weeks
$769.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ100mm
Focal length f 300mm
Edge thickness te 3mm
Center thickness tc 12.4mm
Back focal length fb 291.5mm
Radius of curvature r 138mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 12.7mm Diameter 40mm Focal Length
SLSQ-12.7-40P 		12.7mm 40mm
in stock
$72.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ12.7mm
Focal length f 40mm
Edge thickness te 2mm
Center thickness tc 3.1mm
Back focal length fb 37.9mm
Radius of curvature r 18.40mm
Centration ＜1′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 25mm Diameter 90mm Focal Length
SLSQ-25-90P 		25mm 90mm
2 weeks
$85.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25mm
Focal length f 90mm
Edge thickness te 2mm
Center thickness tc 3.9mm
Back focal length fb 87.3mm
Radius of curvature r 41.4mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 30mm Diameter 120mm Focal Length
SLSQ-30-120P 		30mm 120mm
2 weeks
$97.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f 120mm
Edge thickness te 2mm
Center thickness tc 4.1mm
Back focal length fb 117.2mm
Radius of curvature r 55.2mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 40mm Diameter 200mm Focal Length
SLSQ-40-200P 		40mm 200mm
2 weeks
$140.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ40mm
Focal length f 200mm
Edge thickness te 2mm
Center thickness tc 4.2mm
Back focal length fb 197.1mm
Radius of curvature r 92mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 50mm Diameter 3000mm Focal Length
SLSQ-50-3000P 		50mm 3000mm
2 weeks
$199.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50mm
Focal length f 3000mm
Edge thickness te 3mm
Center thickness tc 3.2mm
Back focal length fb 2997.8mm
Radius of curvature r 1380mm
Centration ＜3′
i
Plano Convex Lens Synthetic Fused Silica 6mm Diameter 20mm Focal Length
SLSQ-06-20P 		6mm 20mm
2 weeks
$120.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ6mm
Focal length f 20mm
Edge thickness te 1mm
Center thickness tc 1.5mm
Back focal length fb 19mm
Radius of curvature r 9.2mm
Centration ＜3′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 100mm Diameter 500mm Focal Length
SLSQ-100-500P 		100mm 500mm
2 weeks
$649.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ100mm
Focal length f 500mm
Edge thickness te 3mm
Center thickness tc 8.5mm
Back focal length fb 494.2mm
Radius of curvature r 230mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 15mm Diameter 25mm Focal Length
SLSQ-15-25P 		15mm 25mm
in stock
$92.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ15mm
Focal length f 25mm
Edge thickness te 2mm
Center thickness tc 4.8mm
Back focal length fb 21.7mm
Radius of curvature r 11.5mm
Centration ＜1′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 25mm Diameter 150mm Focal Length
SLSQ-25-150P 		25mm 150mm
in stock
$85.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25mm
Focal length f 150mm
Edge thickness te 2mm
Center thickness tc 3.1mm
Back focal length fb 147.8mm
Radius of curvature r 69mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 30mm Diameter 200mm Focal Length
SLSQ-30-200P 		30mm 200mm
2 weeks
$88.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f 200mm
Edge thickness te 2mm
Center thickness tc 3.2mm
Back focal length fb 197.8mm
Radius of curvature r 92mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 40mm Diameter 300mm Focal Length
SLSQ-40-300P 		40mm 300mm
in stock
$140.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ40mm
Focal length f 300mm
Edge thickness te 2mm
Center thickness tc 3.5mm
Back focal length fb 297.6mm
Radius of curvature r 138mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 50.8mm Diameter 70mm Focal Length
SLSQ-50.8-70P 		50.8mm 70mm
6-12 weeks
$232.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50.8mm
Focal length f 70mm
Edge thickness te 2.5mm
Center thickness tc 14.9mm
Back focal length fb 59.8mm
Radius of curvature r 32.2mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 7mm Diameter 10mm Focal Length
SLSQ-07-10P 		7mm 10mm
in stock
$104.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ7mm
Focal length f 10mm
Edge thickness te 2.2mm
Center thickness tc 3.8mm
Back focal length fb 7.4mm
Radius of curvature r 4.6mm
Centration ＜3′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 100mm Diameter 800mm Focal Length
SLSQ-100-800P 		100mm 800mm
2 weeks
$579.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ100mm
Focal length f 800mm
Edge thickness te 3mm
Center thickness tc 6.4mm
Back focal length fb 795.6mm
Radius of curvature r 368mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 15mm Diameter 50mm Focal Length
SLSQ-15-50P 		15mm 50mm
2 weeks
$72.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ15mm
Focal length f 50mm
Edge thickness te 2mm
Center thickness tc 3.3mm
Back focal length fb 47.8mm
Radius of curvature r 23mm
Centration ＜1′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 25mm Diameter 220mm Focal Length
SLSQ-25-220P 		25mm 220mm
2 weeks
$80.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25mm
Focal length f 220mm
Edge thickness te 2mm
Center thickness tc 2.8mm
Back focal length fb 218.1mm
Radius of curvature r 101.2mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 30mm Diameter 300mm Focal Length
SLSQ-30-300P 		30mm 300mm
2 weeks
$88.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f 300mm
Edge thickness te 2mm
Center thickness tc 2.8mm
Back focal length fb 298.1mm
Radius of curvature r 138mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 40mm Diameter 450mm Focal Length
SLSQ-40-450P 		40mm 450mm
in stock
$140.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ40mm
Focal length f 450mm
Edge thickness te 2mm
Center thickness tc 3mm
Back focal length fb 448mm
Radius of curvature r 207mm
Centration ＜3′
i
Plano Convex Lens Synthetic Fused Silica 50.8mm Diameter 100mm Focal Length
SLSQ-50.8-100P 		50.8mm 100mm
in stock
$209.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50.8mm
Focal length f 100mm
Edge thickness te 2.8mm
Center thickness tc 10.4mm
Back focal length fb 92.9mm
Radius of curvature r 46mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 7mm Diameter 20mm Focal Length
SLSQ-07-20P 		7mm 20mm
in stock
$104.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ7mm
Focal length f 20mm
Edge thickness te 1.7mm
Center thickness tc 2.4mm
Back focal length fb 18.3mm
Radius of curvature r 9.2mm
Centration ＜3′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 15mm Diameter 80mm Focal Length
SLSQ-15-80P 		15mm 80mm
in stock
$72.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ15mm
Focal length f 80mm
Edge thickness te 2mm
Center thickness tc 2.8mm
Back focal length fb 78.1mm
Radius of curvature r 36.8mm
Centration ＜1′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 25.4mm Diameter 35mm Focal Length
SLSQ-25.4-35P 		25.4mm 35mm
in stock
$105.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25.4mm
Focal length f 35mm
Edge thickness te 1.8mm
Center thickness tc 8mm
Back focal length fb 29.5mm
Radius of curvature r 16.1mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 30mm Diameter 450mm Focal Length
SLSQ-30-450P 		30mm 450mm
2 weeks
$88.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f 450mm
Edge thickness te 2mm
Center thickness tc 2.5mm
Back focal length fb 448.3mm
Radius of curvature r 207mm
Centration ＜3′
i
Plano Convex Lens Synthetic Fused Silica 50mm Diameter 80mm Focal Length
SLSQ-50-80P 		50mm 80mm
2 weeks
$228.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50mm
Focal length f 80mm
Edge thickness te 3mm
Center thickness tc 12.8mm
Back focal length fb 71.2mm
Radius of curvature r 36.8mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 50.8mm Diameter 170mm Focal Length
SLSQ-50.8-170P 		50.8mm 170mm
in stock
$209.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50.8mm
Focal length f 170mm
Edge thickness te 2.9mm
Center thickness tc 7.1mm
Back focal length fb 165.1mm
Radius of curvature r 78.2mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 7mm Diameter 50mm Focal Length
SLSQ-07-50P 		7mm 50mm
in stock
$104.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ7mm
Focal length f 50mm
Edge thickness te 1.6mm
Center thickness tc 1.9mm
Back focal length fb 48.7mm
Radius of curvature r 23mm
Centration ＜3′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 20mm Diameter 25mm Focal Length
SLSQ-20-25P 		20mm 25mm
in stock
$100.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ20mm
Focal length f 25mm
Edge thickness te 2mm
Center thickness tc 7.8mm
Back focal length fb 19.6mm
Radius of curvature r 11.5mm
Centration ＜1′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 25.4mm Diameter 60mm Focal Length
SLSQ-25.4-60P 		25.4mm 60mm
in stock
$95.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25.4mm
Focal length f 60mm
Edge thickness te 1.9mm
Center thickness tc 5mm
Back focal length fb 56.6mm
Radius of curvature r 27.6mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 30mm Diameter 700mm Focal Length
SLSQ-30-700P 		30mm 700mm
2 weeks
$88.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f 700mm
Edge thickness te 2mm
Center thickness tc 2.4mm
Back focal length fb 698.4mm
Radius of curvature r 322mm
Centration ＜3′
i
Plano Convex Lens Synthetic Fused Silica 50mm Diameter 120mm Focal Length
SLSQ-50-120P 		50mm 120mm
6-12 weeks
$209.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50mm
Focal length f 120mm
Edge thickness te 3mm
Center thickness tc 9mm
Back focal length fb 113.8mm
Radius of curvature r 55.2mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 50.8mm Diameter 300mm Focal Length
SLSQ-50.8-300P 		50.8mm 300mm
in stock
$170.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50.8mm
Focal length f 300mm
Edge thickness te 2.9mm
Center thickness tc 5.3mm
Back focal length fb 296.4mm
Radius of curvature r 138mm
Centration ＜1′

You must be logged in to ask questions

This product can be coated M; IR1 or IR2.
