The TSD-C stages (with center-drive micrometers) feature Opto Sigma's EXC™ precision bearing ways. These bearing ways are not separate parts, as with competing stages, but processed directly into the body and base of the stage resulting in the highest stiffness, straightness, and smoothness of any stage on the market. They remain unmatched in overall performance to this day. All TSD stages are made entirely from hardened tool steel and are plated with an RoHS-Compliant black chrome.
Customize product
Filters
Enabled filters :
Remove all filters
| Name | Stage Size | Travel | Load Capacity | Mounting Thread | Delivery | Price | Add to cart | |||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
i
40X40mm EXC Bearing, Steel, X-Axis Stage, Center Micrometer, +/-6.5mm, 6-32 Threads
TSD-401CUU |
40×40mm | ±6.5mm | 196N (20.0kg) | 6-32UNC |
in stock
|
$318.00
|
|
|
||||||||||||||||||||||||||
|
i
65X65mm EXC Bearing, Steel, X-Axis Stage, Center Micrometer, +/-6.5mm, 1/4-20 Threads
TSD-651CUU |
65×65mm | ±6.5mm | 294N (30.0kg) | 1/4-20UNC |
in stock
|
$406.00
|
|
|
||||||||||||||||||||||||||
|
i
80X80mm EXC Bearing, Steel, X-Axis Stage, Center Micrometer, +/-12.5mm, M4 Threads
TSD-801C |
80×80mm | ±12.5mm(±6.5mm for SDM and SWP) | 490N (50.0kg) | M4 |
6-12 weeks
|
$456.00
|
|
|
||||||||||||||||||||||||||
|
i
120X120mm EXC Bearing, Steel, X-Axis Stage, Center Micrometer, +/-20mm, M6 Threads
TSD-1201CH-M6 |
120×120mm | ±20mm | 686N (70.0kg) | M6 |
in stock
|
$609.00
|
|
|
||||||||||||||||||||||||||
|
i

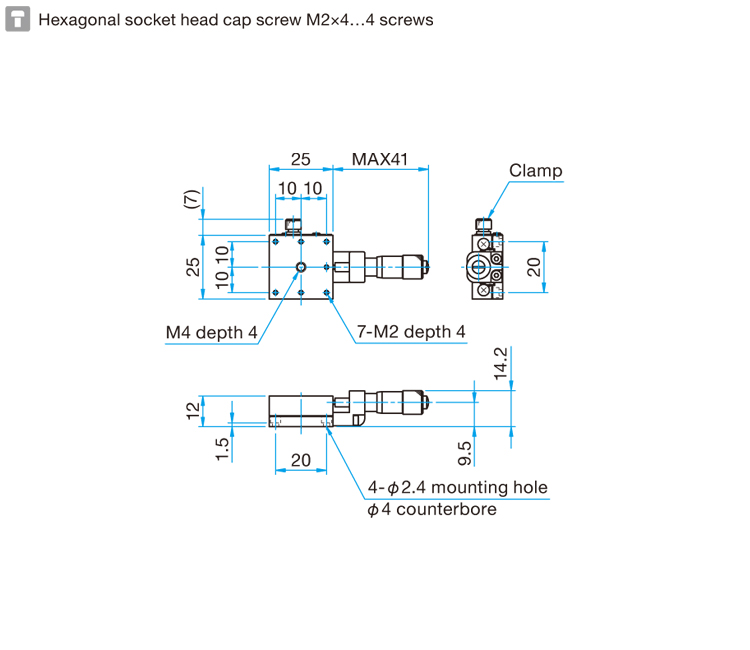

25X25mm EXC Bearing, Steel, X-Axis Stage, Center Micrometer, +/-3mm, M2 Threads
TSD-251C |
25×25mm | ±3mm | 49N (5.0kg) | M2 |
2 weeks
|
$279.00
|
|
|
||||||||||||||||||||||||||
|
i

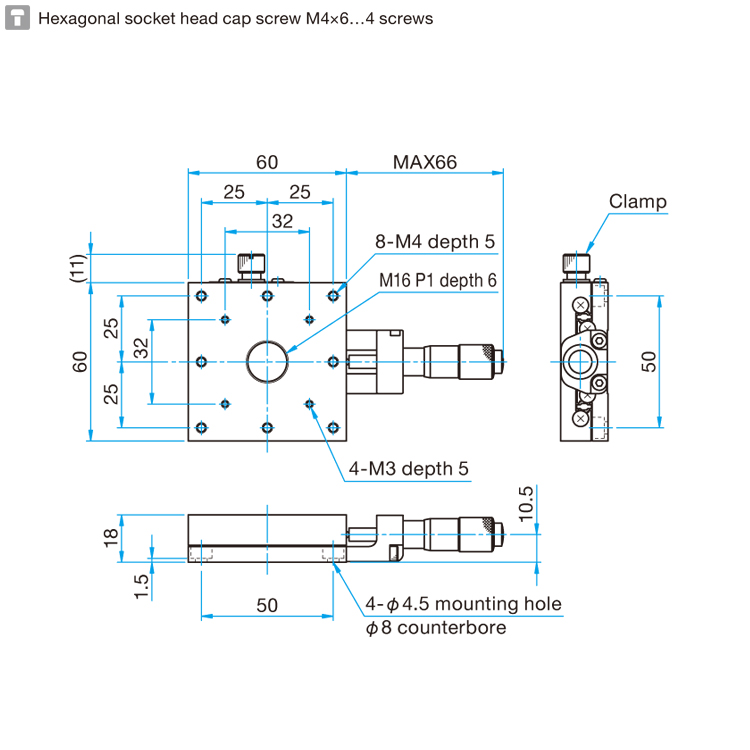

60X60mm EXC Bearing, Steel, X-Axis Stage, Center Micrometer, +/-6.5mm, M4 Threads
TSD-601C |
60×60mm | ±6.5mm | 343N (35.0kg) | M4 |
6-12 weeks
|
$355.00
|
|
|
||||||||||||||||||||||||||
|
i

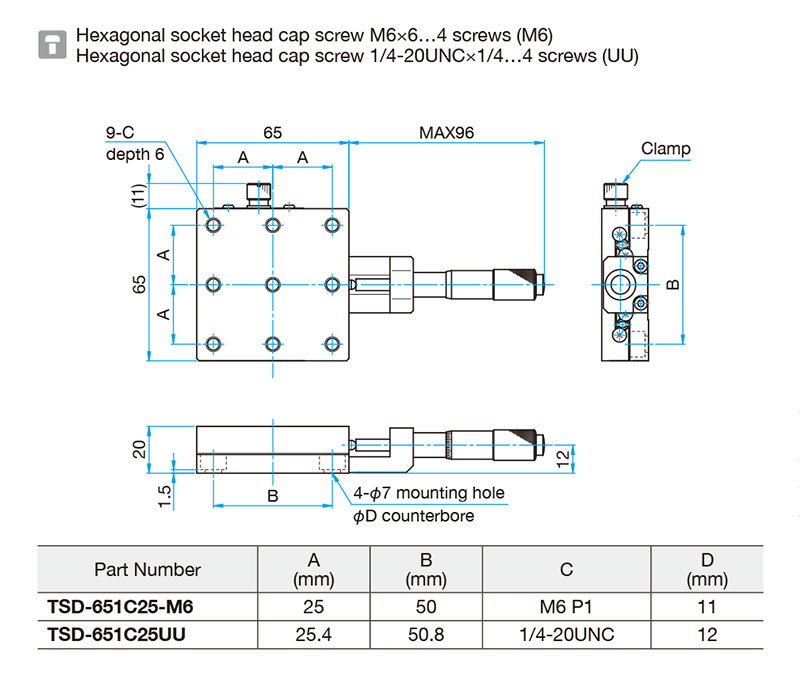

65X65mm EXC Bearing, Steel, X-Axis Stage, Center Micrometer, +/-12.5mm, M6 Threads
TSD-651C25-M6 |
65×65mm | ±12.5mm | 294N (30.0kg) | M6 |
2 weeks
|
$406.00
|
|
|
||||||||||||||||||||||||||
|
i
100X100mm EXC Bearing, Steel, X-Axis Stage, Center Micrometer, +/-12.5mm, M4 Threads
TSD-1001C |
100×100mm | ±12.5mm | 588N (60.0kg) | M4 |
2 weeks
|
$482.00
|
|
|
||||||||||||||||||||||||||
|
i
120X120mm EXC Bearing, Steel, X-Axis Stage, Center Micrometer, +/-20mm, 1/4-20 Threads
TSD-1201CHUU |
120×120mm | ±20mm | 686N (70.0kg) | 1/4-20UNC |
6-12 weeks
|
$609.00
|
|
|
||||||||||||||||||||||||||
|
i

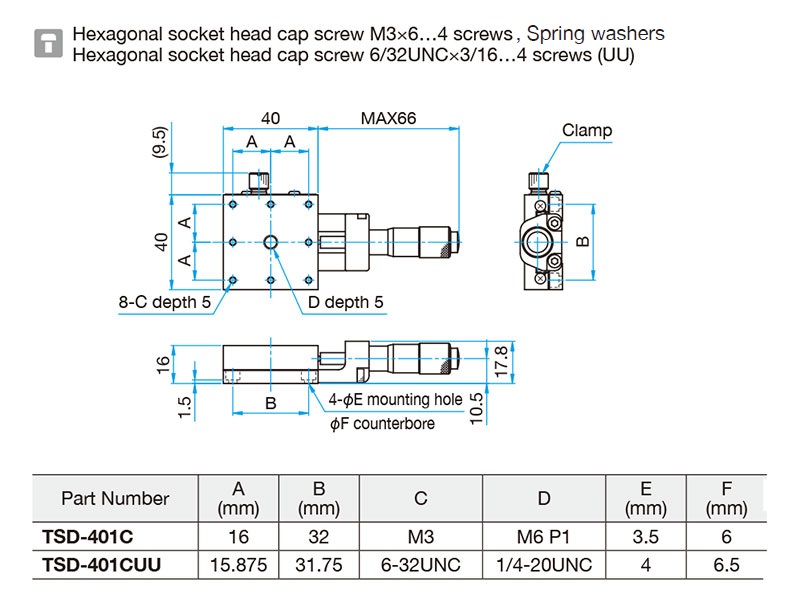

40X40mm EXC Bearing, Steel, X-Axis Stage, Center Micrometer, +/-6.5mm, M3 Threads
TSD-401C |
40×40mm | ±6.5mm | 196N (20.0kg) | M3 |
in stock
|
$318.00
|
|
|
||||||||||||||||||||||||||
|
i

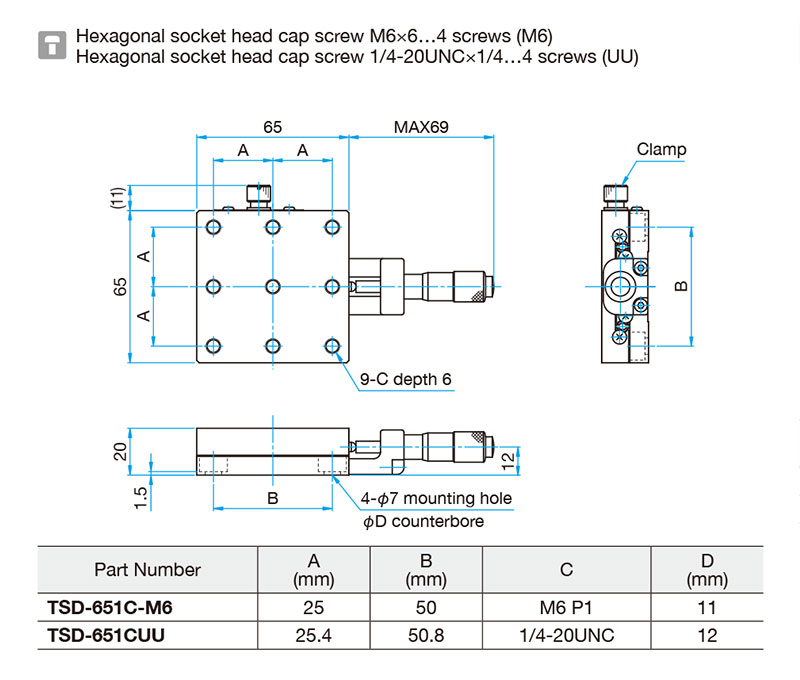

65X65mm EXC Bearing, Steel, X-Axis Stage, Center Micrometer, +/-6.5mm, M6 Threads
TSD-651C-M6 |
65×65mm | ±6.5mm | 294N (30.0kg) | M6 |
in stock
|
$406.00
|
|
|
||||||||||||||||||||||||||
|
i
65X65mm EXC Bearing, Steel, X-Axis Stage, Center Micrometer, +/-12.5mm, 1/4-20 Threads
TSD-651C25UU |
65×65mm | ±12.5mm | 294N (30.0kg) | 1/4-20UNC |
in stock
|
$406.00
|
|
|
||||||||||||||||||||||||||
|
i
120X120mm EXC Bearing, Steel, X-Axis Stage, Center Micrometer, +/-20mm, M4 Threads
TSD-1201CH |
120×120mm | ±20mm | 686N (70.0kg) | M4 |
2 weeks
|
$609.00
|
|
|
You must be logged in to ask questions
Hardened steel linear stages with integrated bearing ways and a black chrome finish. Our "Extended Contact" technology yields superior stability, stiffness, accuracy, and durability.
There are options for micrometer position and fine pitch screws.
