Cage Two Axis Holder with Tilt

C30-ALH

Cage Two Axis Holder with Tilt
In stock
SKU
C30-ALH
Tilt adjustment is added to Cage cross movement holder. It can be used as a device holder to adjust the positioning of the optics requires centering.
custom product
Customize product
Filters
Enabled filters :
Remove all filters

Attention ▶The adjustment mechanism is not equipped with a clamp to fix the adjustment status.

Name Delivery Price Add to cart
i

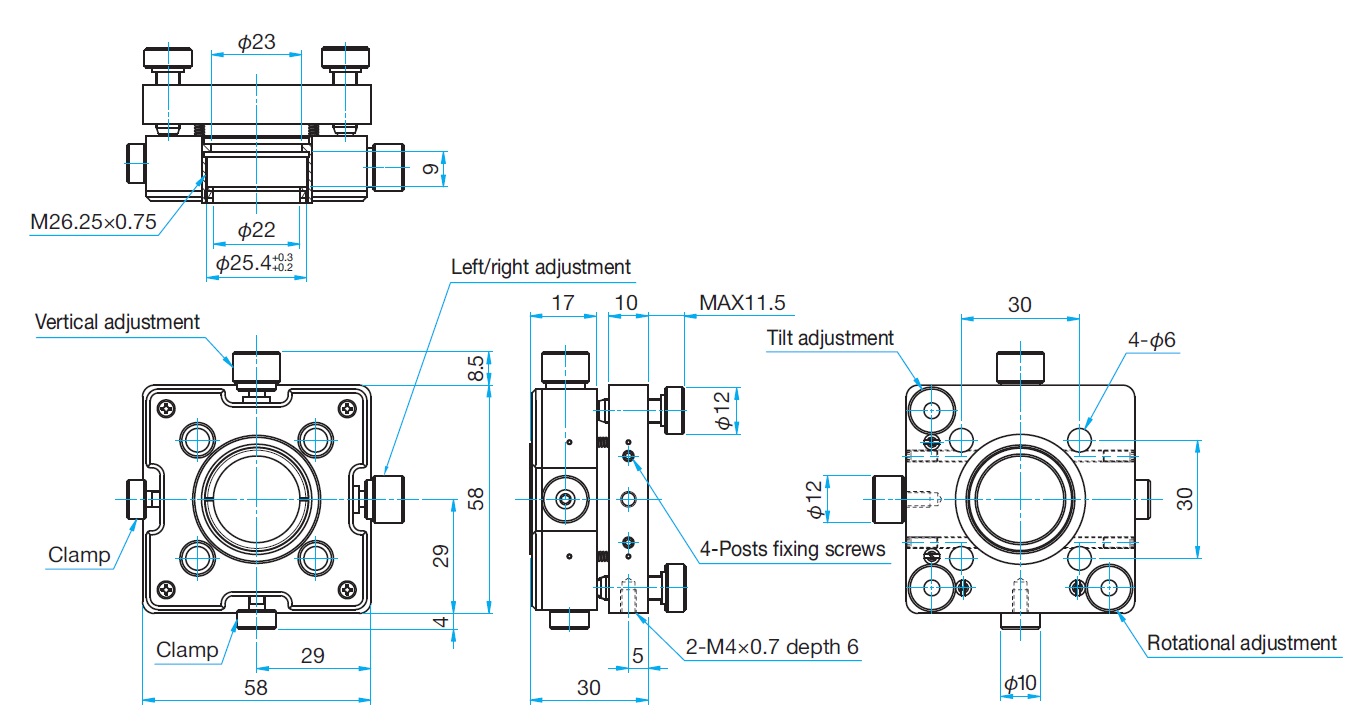

Cage Two Axis Holder with Tilt
C30-ALH5-25.4
2 weeks
$296.00
Primary material Aluminum
Guide Rod Diameter (Spaceing between rod) φ6mm (30x30mm)
Compatible Optics Diameter φ25.4mm
Compatible Optics Thickness - 9mm
Clear Aperture φ22mm
Adjustment range /Cross-movement φ2mm
Resolution / Cross-movement 0.25mm/rotation
Adjustment Range /Tilt ±3°
Adjustment Range /Rotation ±3°
Resolution /Tilt 0.32°/rotation
Resolution /Rotation 0.32°/rotation
Installation Slide from the end of rods

You must be logged in to ask questions

◦C30-ALH can be placed in the center of the cage since holes for rods passes through the holder.
◦The tilt mechanism has a three-axis adjustment knob for fine adjustment of the optics in the optical axis direction.
◦The cross movement mechanism is equipped with a clamp to fix the center position of the optics after adjustment. It can be assembled with the base with M4 rods.
