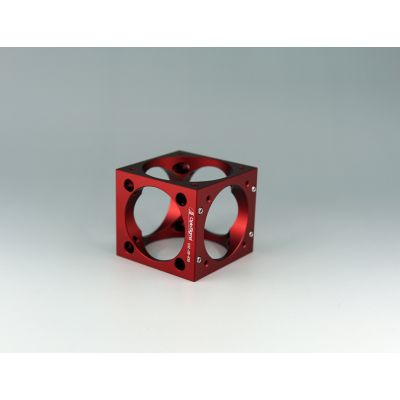

Cage Mounting Cube
C32-CB-H30
An adapter that can be attached to the cube joint where the rods are mounted in four directions and an adapter that can be attached to the top or bottom of the joint.
◦ Mirror holders are supported by four (or three) rods (cages). In addition, the mirror holder can split the optical axis and the cage into two, or fold it to 90 degrees.
◦ The cage system has no distinction of up, down, left and right. Therefore, it is possible to place the holder in various orientations, which is convenient for constructing a three-dimensional optical system.
◦ The cage system has no distinction of up, down, left and right. Therefore, it is possible to place the holder in various orientations, which is convenient for constructing a three-dimensional optical system.
| Name | Cage Mounting Cube |
|---|---|
| Weight | 0.0520kgs |
| Guide |
▶ Please contact our Sales for methods to fix the cage system to other equipment and parts not included in the WEB catalog. ▶ For consultation of optical system using cage system please contact Sales. |
| Attention |
▶ If the rod is tightened too tightly or if the tightening force is greatly different depending on the location, the rod may not fit in other holders. ▶ Initially fix the rod lightly, after building the optical system, please tighten so that the force that fixes the rod is even in each holder. ▶ When configuring a large optical system or a long optical system, it may become distorted or become unstable due to vibration. |
| Primary material | Aluminum |
| Guide Rod Diameter (Spaceing between rod) | φ6mm （32x32mm） |
| Thougth Hole Diameter | φ37mm |
| Guide Rod Mounting Surfaces | 4 faces |
| Distance to center | 25mm |
