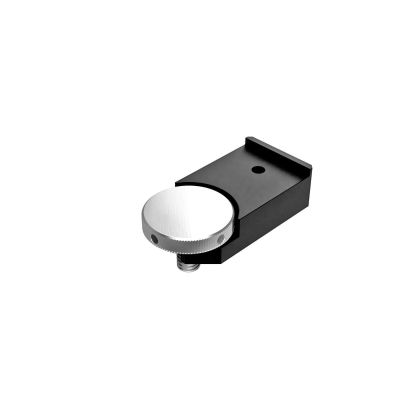

Base Plate for Kinematic Mirror Holders Inch 50mm

MHG-50BPU

3d-simple-product
Plates are connected directly by knob screw to a vibration isolator, optical experiment system with M6 tap.



More Information
Name Base Plate for Kinematic Mirror Holders Inch 50mm
Weight 0.0400kgs
Guide ◦Fixing method : Fix the plate to tap counterbored with M4 thread screw. Since tap counterbored is located two direction, fix the plate in easier direction for operation of adjustment screw.◦Fixing method of MHG-BP to optical table:Fix plates to optical table with accessory M6 knob screw. Tighten up a screw from lock hole located on the side of the knob with hexagonal wrenc
Attention -
Image Label Base Plate for Kinematic Mirror Holders Inch 50mm
Compatible Holders MHG-MP50, MHG-MP50.8
In stock
SKU
MHG-50BPU
$53.00

Delivery in : 6-12 weeks

Plates are connected directly by knob screw to a vibration isolator, optical experiment system with M6 tap.
