Manual 5 axis Stage Assembly for Mirror Holder

BACK

STC-MH-XYZαβ

An example on how to create a XYZαβ manual stage assembly for a Mirror Holder. This setup provides a detailled and modular 5 axis of freedom setup to mirror mount. Can be applied to all sorts of application and not limited to mounts.

pdf file PDF technical document
stp file STP file

manual-5-axis-stage-assembly-for-mirror-holder
1

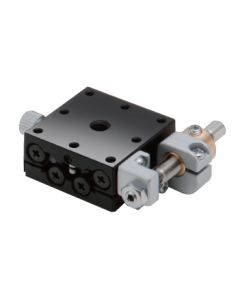

  1. 25X25mm EXC Bearing, Steel, X-Axis Stage, Side Hex Screw, +/-3mm, M2 Threads
    25X25mm EXC Bearing, Steel, X-Axis Stage, Side Hex Screw, +/-3mm, M2 Threads
    $242.00
    Add to Wish List Add to Compare
Choose your spec TSD
2
  1. 25X25mm Goniometer, Brass Dovetail, 1-Axis, +/-20 deg, 18mm Axis Ht, Worm-gear, M2 Thd
    25X25mm Goniometer, Brass Dovetail, 1-Axis, +/-20 deg, 18mm Axis Ht, Worm-gear, M2 Thd
    $377.00
    Add to Wish List Add to Compare
Choose your spec GOH-A
3

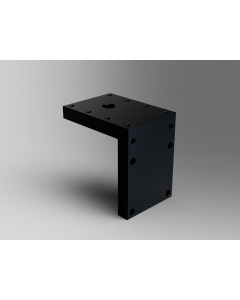

  1. Metric L bracket for 25mm stages
    Metric L bracket for 25mm stages
    $15.76
    Add to Wish List Add to Compare
Choose your spec LBR
4

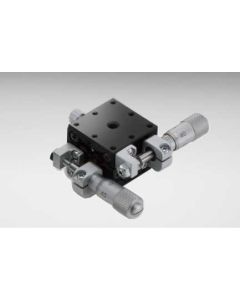

  1. 25X25mm EXC Bearing, Steel, XY-Axis Stage, Side Micrometer, +/-3mm, M2 Threads
    25X25mm EXC Bearing, Steel, XY-Axis Stage, Side Micrometer, +/-3mm, M2 Threads
    $558.00
    Add to Wish List Add to Compare
Choose your spec TSD-2-S
5

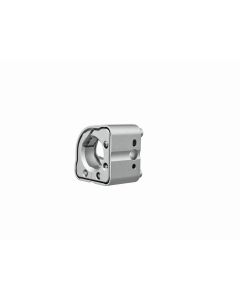

  1. 12.7-mm mirror mount, stainless steel, high-stability, front-loading, 3 hex adjusters
    12.7-mm mirror mount, stainless steel, high-stability, front-loading, 3 hex adjusters
    $126.00
    Add to Wish List Add to Compare
Choose your spec MHX
