Vertical Control Small Mirror Holder for 15mm Mirror with Base

LMMH-15B

3d-simple-product

Skip to the end of the images gallery

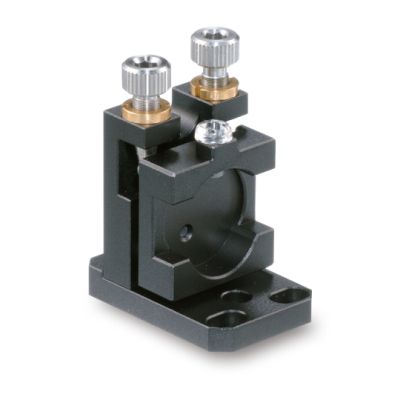

main product photo

Skip to the beginning of the images gallery

Top adjust mirror holders can be used in small areas reducing the footprint of systems.

More Information

More Information
Name	Vertical Control Small Mirror Holder for 15mm Mirror with Base
Weight	0.0300kgs
Guide	Vertical control gimbal mirror and beamsplitter holders (BSHL) where the adjustment is along the reflective surface of the mirror are available too. WEB Reference Catalog Code/W4012
Attention	Mirror thickness will change the position of the reflective surface of the mirror. The front surface of the mount is 12 mm from the center axis of the post/mounting hole.
Image Label	Vertical Control Small Mirror Holder for 15mm Mirror with Base
Compatible Optics Diameter φA	φ15mm
Compatible Optics Thickness	5mm
Adjustment Range /Tilt	±2.5°
Adjustment Range /Rotation	±2.5°
Resolution /Tilt	about 0.28°/rotation
Resolution /Rotation	about 0.3°/rotation

In stock

SKU

LMMH-15B

£115.20

Top adjust mirror holders can be used in small areas reducing the footprint of systems.
