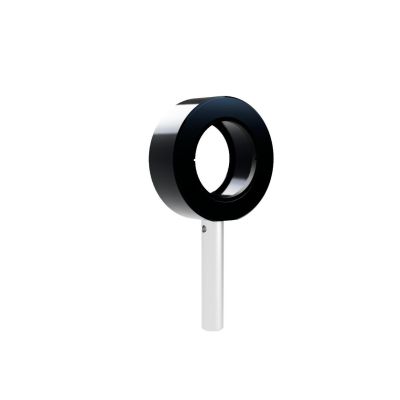

Fixed Framed Lens Holder

LHF-UDL-40

Used to mount multi-element focusing lenses in optical experiments.

◦Female threads fit a wide range of OptoSigma threads. See the compatibility table for appropriate combinations.

More Information
Name	Fixed Framed Lens Holder
Weight	1.6500kgs
Guide	The focusing lenses family is ATL/NADL, etc. WEB Reference Catalog Code/W3078 For cover glass and cover glass holders, refer to Protective Windows / Protective Window Holders. WEB Reference Catalog Code/W3081-1 Post length can be changed by specifying the post length when you place an order. We may charge the difference in price depending on the length. Contact our Sales Division for more information.
Attention	-
φA	φ66mm
B	32mm
C	M44.85 P0.75
D	25mm
E	40mm
F	44mm

In stock

SKU

LHF-UDL-40

£82.30

Used to mount multi-element focusing lenses in optical experiments.
