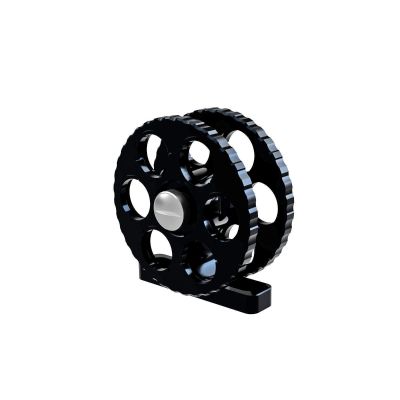

Filter Double Wheel 12 pieces of 25.4mm Diameter with Inch Base

NDWH-25.4W-UU

Skip to the beginning of the images gallery

This holder mounts several filters in a turret allowing different filters to be placed into the optical path by rotating the turret. It can also be used for adjusting the transmitted light intensity by switching ND filters of different transmittance, or for switching transmitted wavelength by mounting color filters.

Details

◦Two types are available. The NDWH-15S has a single turret that holds six filters. The NDWH-15W has two turrets that hold six filters each.
◦Each type is also available with either a fixed base (NDWH-15S/NDWH-15W) or mounted on a post (NDWH-15SRO/ NDWH-15WRO).
◦The turret has an index every 30 degrees (point where rotation stops). Using this index, the filter can be located at the positions 0 degrees, 30 degrees, 60 degrees, and 90 degrees.

More Information

More Information
Name	Filter Double Wheel 12 pieces of 25.4mm Diameter with Inch Base
Weight	0.3000kgs
Guide	The filter wheels do not include ND filters. Select from among the ND filters (AND-15C/FND-15C02 or AND-25C/FND-25C02). WEB Reference Catalog Code/W3093, WEB Reference Catalog Code/W3098 Rotating Variable Reflective ND Filter Holders (NDHN) to continuously change transmitted light intensity are also available. WEB Reference Catalog Code/W3101 Post length can be changed for NDWH-15SRO and NDWH-15WRO. If the length of post is specified at the time of purchase, this product will be delivered with the specified length post. We may charge the difference in price depending on the length. Contact our Sales Division for more information. Various filter holders are attached with screw ring and resin ring.
Attention	In the case of the lowest filter of the lens turret, the strut of the holder interferes and light cannot pass through. Except for this position, all the indexes let light pass through. Special tools are required when removing the filter case. When using a φ25.4mm filter after removing the filter case, a retaining ring (RR-25.4-5) and resin ring (DR-25.4-5) is required. Please contact our International Sales Division for more information. It is necessary to mount post types with offset for the optical axis. The amount of offset will vary depending on the position of lens turret holes.
Image Label	Filter Double Wheel 12 pieces of 25.4mm Diameter with Inch Base
Compatible Optics Diameter	φ25.4mm
Compatible Optics Max Thickness	2.5mm
Max Number of Mounts	12 pieces

In stock

SKU

NDWH-25.4W-UU

£329.30

Filter Double Wheel 12 pieces of 25.4mm Diameter with Inch Base
