Two-axis Lens Holder

LHCM-20

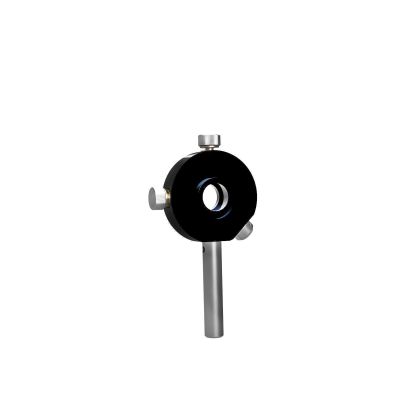

Two-axis lens holders with compact centering mechanism. The compact centering adjustment mechanism makes a low optical axis easy to accommodate . Can be used for adjusting the focus point of a laser beam or the direction of a collimated beam.
◦For Lens diameters from 10mm to 50.8mm.
◦Deep enough to hold thick achromatic lenses.
◦The thin frame allows optics to be placed close to the front and back of the lens.
More Information
Name Two-axis Lens Holder
Weight 0.2000lbs
Guide
  • Can be mounted on a dovetail stage or a micrometer adjustment stage to allow focus adjustment. Contact our Sales Division for recommendations regarding appropriate stages.
  • Three-axis lens holders (ALHN-3RO) with high resolution lens centering adjustment and lockable adjusters are also available.
  • WEB Reference Catalog Code/W4016-2
  • Five-axis lens holders (ALHN-5RO) with additional tip and tilt adjustments are also available.
  • WEB Reference Catalog Code/W4016-2
  • Post length can be changed by specifying the post length when you place an order. Replacement of the post is free of charge, but we may charge the difference in price depending on the length. Contact our Sales Division for more information.
Attention
  • The adjustment mechanism may not work properly when something heavy other than a lens is mounted.
Compatible Optics Diameter φA φ20mm
Compatible Optics Thickness t 2 - 12mm
Clear Aperture φB φ17mm
Optical Axis Height C 27.5mm
Centering Adjustment Range φ3mm
