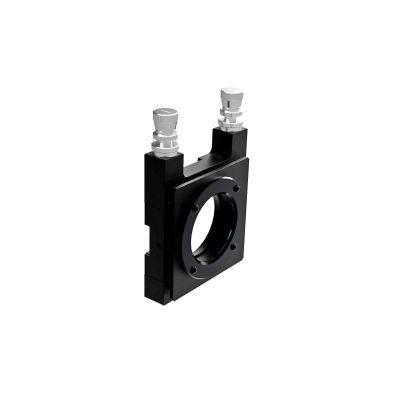

Topmike Vertical Control Mirror Holder for 30mm with Differential Micrometers
LMHB-60DM
×
Top adjustment of these mirror mounts allow for devices to be placed in close proximity with each other. The mount can be mounted so that the micrometers are facing upwards or horizontally with the correct baseplate.
◦The optical axis of the mount does not change with vertical or horizontal mounting.
◦Each baseplate will work with the mount vertically or horizontally.
◦Each baseplate will work with the mount vertically or horizontally.
| Name | Topmike Vertical Control Mirror Holder for 30mm with Differential Micrometers |
|---|---|
| Weight | 0.7000lbs |
| Guide |
|
| Attention |
|
| Image Label | Topmike Vertical Control Mirror Holder for 30mm with Differential Micrometers |
| Compatible Optics Diameter | φ60mm |
| Compatible Optics Thickness | 4 - 17mm |
| Adjustment Range /Tilt | ±1.8° |
| Adjustment Range /Rotation | ±1.8° |
| Resolution /Tilt | - |
| Resolution /Rotation | - |
| Coarse Resolution /Tilt | about 0.36°/rotation |
| Coarse Resolution /Rotation | about 0.36°/rotation |
| Fine Adjustment Range /Tilt | about 0.036°/rotation |
| Fine Adjustment Range /Rotation | about 0.036°/rotation |
| Fine Adjuster Indicator Conversion /Tilt | about 0.0007°/DIV |
| Fine Adjuster Indicator Conversion /Rotation | about 0.0007°/DIV |
In stock
SKU
LMHB-60DM
SGD 682.90
Customize product
Top adjustment of these mirror mounts allow for devices to be placed in close proximity with each other. The mount can be mounted so that the micrometers are facing upwards or horizontally with the correct baseplate.
