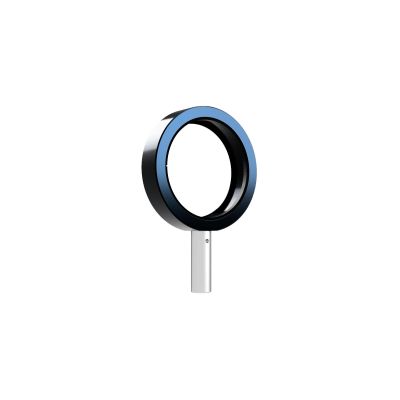

Fixed Lens Holder
LHF-100
It can firmly fix from a thin single lens to a thick achromatic lens. Since the outer diameter of the holder is large, it has an effect on blocking stray light.
◦For large diameter lenses over 80mm, “A type” holders are available for thick lenses .
| Name | Fixed Lens Holder |
|---|---|
| Weight | 0.4500lbs |
| Guide |
|
| Attention | - |
| Compatible Optics Diameter φA | φ100mm |
| Compatible Optics Thickness | 4 -18mm |
| Clear Aperture φB | φ93mm |
| C | M101.1 P1 |
| Optical Axis Height D | 60mm |
| E | 11mm |
| φG | φ122mm |
| F | 26mm |
| φK | φ20mm |
| L | M6 |
In stock
SKU
LHF-100
SGD 93.90
Customize product
It can firmly fix from a thin single lens to a thick achromatic lens. Since the outer diameter of the holder is large, it has an effect on blocking stray light.
