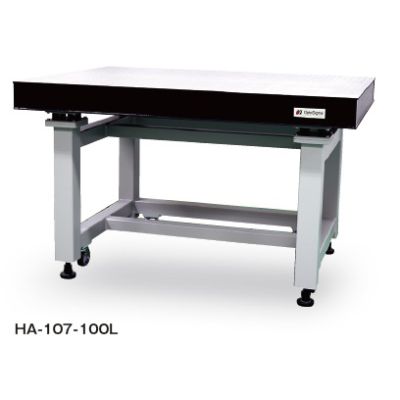

Aluminum Honeycomb Optical Tables
HA-1512-150L
Simple optical lab bench fitted with a table frame and rubber isolators placed between the bench and the table frame provides a basic level of vibration isolation.
◦The inside of the bench is aluminum honeycomb, which is lightweight with excellent stiffness. (Steel only for HA-86-50LS)
◦The vibration isolating legs have high stiffness and stability.
◦The legs are arranged so as to provide space for the knees, thus allowing testing or measurement to be conducted while seated.
◦The top surface of the bench is magnetic stainless steel plate, with tapped holes (M6 25×25mm matrix) over the entire surface allowing both magnetic type and screw fixing type systems or equipment to be mounted.
◦The vibration isolating legs have high stiffness and stability.
◦The legs are arranged so as to provide space for the knees, thus allowing testing or measurement to be conducted while seated.
◦The top surface of the bench is magnetic stainless steel plate, with tapped holes (M6 25×25mm matrix) over the entire surface allowing both magnetic type and screw fixing type systems or equipment to be mounted.
| Name | Aluminum Honeycomb Optical Tables |
|---|---|
| Weight | 0.0200lbs |
| Guide |
|
| Attention |
|
| Image Label | Aluminum Honeycomb Optical Tables |
| A x B | 1500mm x 1200mm |
| H | 800mm |
| T | 150mm |
| A×B | 1,500×1,200mm |
| H | 800mm |
| T | 150mm |
In stock
SKU
HA-1512-150L
SGD 7,500.00
Customize product
Simple optical lab bench fitted with a table frame and rubber isolators placed between the bench and the table frame provides a basic level of vibration isolation.
