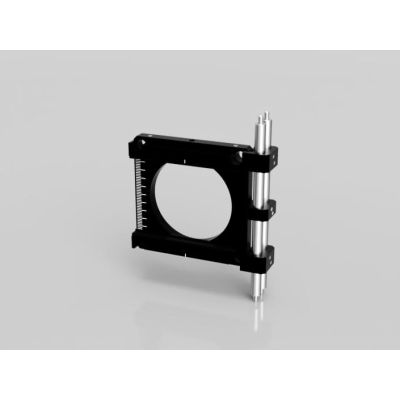

Cage Square Optics holder
C60-CHA-46
Holders for fixing square optics up to 4 to 46 mm in height and 5 mm in thickness. The upper and lower holder arms are covered with non-slip rubber sheets.
| Name | Cage Square Optics holder |
|---|---|
| Weight | 0.1230kgs |
| Guide |
▶ Please contact our Sales for methods to fix the cage system to other equipment and parts not included in the WEB catalog. ▶ For consultation of optical system using cage system please contact Sales. |
| Attention |
▶If the rod is tightened too tightly or if the tightening force is greatly different depending on the location, the rod may not fit in other holders. ▶Initially fix the rod lightly, after building the optical system, please tighten so that the force that fixes the rod is even in each holder. ▶When configuring a large optical system or a long optical system, it may become distorted or become unstable due to vibration. |
| Primary material | Aluminum |
| Guide Rod Diameter (Spaceing between rod) | φ6mm （60x60mm） |
| Compatible Optics Diameter | 4 - 46mm |
| Compatible Optics Thickness | ー5mm |
| Opening width | 3 - 45mm |
| Installation | Slide from the end of rods |
In stock
SKU
C60-CHA-46
€175.30
Customize product
Holders for fixing square optics up to 4 to 46 mm in height and 5 mm in thickness. The upper and lower holder arms are covered with non-slip rubber sheets.
