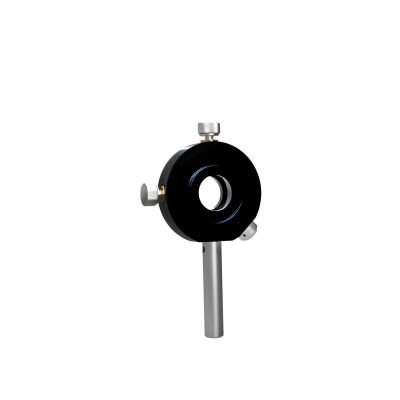

Two-axis Lens Holder
LHCM-25.4
Two-axis lens holders with compact centering mechanism. The compact centering adjustment mechanism makes a low optical axis easy to accommodate . Can be used for adjusting the focus point of a laser beam or the direction of a collimated beam.
◦For Lens diameters from 10mm to 50.8mm.
◦Deep enough to hold thick achromatic lenses.
◦The thin frame allows optics to be placed close to the front and back of the lens.
◦Deep enough to hold thick achromatic lenses.
◦The thin frame allows optics to be placed close to the front and back of the lens.
| Name | Two-axis Lens Holder |
|---|---|
| Weight | 0.2000kgs |
| Guide |
|
| Attention |
|
| Compatible Optics Diameter φA | φ25.4mm |
| Compatible Optics Thickness t | 2 - 12mm |
| Clear Aperture φB | φ22mm |
| Optical Axis Height C | 30mm |
| Centering Adjustment Range | φ3mm |
In stock
SKU
LHCM-25.4
€178.20
Customize product
Two-axis lens holders with compact centering mechanism. The compact centering adjustment mechanism makes a low optical axis easy to accommodate . Can be used for adjusting the focus point of a laser beam or the direction of a collimated beam.
